Shop FILL-RITE

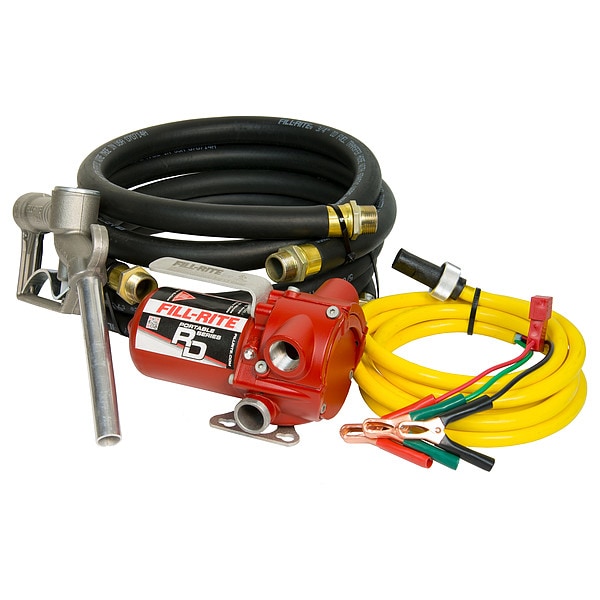

Electric Drum Pump, Aluminum, 12 V DC

  • Mfr # RD1212NH

  • Zoro # G1881391

product price:  $519.99
/ea
Free Shipping & Returns

Key Features

For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Overall Height
7 1/4 in
Housing Material
Aluminum
Seal Material
Buna-N
Features
Portable, Handheld, Gasoline, Kerosene, Ethanol Blends (up to 15%), Methanol Blends (up to 15%), Configurable Inlet and Outlet Flanges, Bypass-Less Construccion, Thermal Proteccion, Quick-Disconnected Power Cable, Self Priming, Portable
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RD1212NH
Zoro #
G1881391
UPC #
089404225066
Country of Origin
United States

Dimensions

Overall Height
7 1/4 in
Manufacturers Warranty Length
2 yr
Overall Width
17 13/16 in
Overall Length
17 7/8 in
Hose Dia.
3/4 in
Inlet Size
3/4 in NPT
Outlet Size
3/4 in NPT
Hose Length
8 ft
Power Cord Length
10 ft
Hose Outside Dia.
3/4 in
Height Above Container
4 1/8 in
Cord Length
10 ft
For Container Size
35 gal, 55 gal, 100 gal
Hose Outside Diameter
1 1/8 in
Spout Length
6 in
Spout Discharge Size
3/4 in
Adapter Connection Diameter
3/4 in

Details

Item
Electric Drum Pump
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Housing Material
Aluminum
Seal Material
Buna-N
Features
Portable, Handheld, Gasoline, Kerosene, Ethanol Blends (up to 15%), Methanol Blends (up to 15%), Configurable Inlet and Outlet Flanges, Bypass-Less Construccion, Thermal Proteccion, Quick-Disconnected Power Cable, Self Priming, Portable
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Duty Cycle
30 Minutes On/30 Minutes Off
Nozzle Type
Manual
Max. Viscosity
140 SUS
Bypass Valve
No
Transfer Pump Application
Construction, Emergency Response, Farming, Generators, Marine, Refueling Fleet Vehicles
Voltage
12V DC
HP
1/5
Standards
cULus
Pump Design
Rotary Vane
Seal Type
Lip
Pressure Range
12 psi to 15 psi
Bearing Type
Sealed Ball
Nozzle Material
Aluminum
Includes
Battery, Cable
Self-Priming
Yes
Metered
No
GPM
12 gpm
RPM
3900
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Adapter Material
Cast Iron
Agency Compliance
cULus
Full Load Amps
14.0 A
Motor RPM
3,900 RPM
Max. Fluid Temp.
150 Degrees F
Thermal Protection
Yes
Hose Tube Material
Nitrile
Runs Dry
Yes
Variable Speed
No
Diesel Exhaust Fluid Compatible
No
Motor HP
1/6 hp
Max. Flow Rate
12 gpm
Adapter Connection Type
MNPT
Explosion Proof
Yes
Max. Head - Pumps
3 ft
Nozzle Operation
Manual
Min. Fluid Temp.
-40 Degrees F
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene
Max. Head Pressure
16 psi
Includes Spout
No
Hose Cover Material
Neoprene
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Rated Voltage
12 V DC
Housing Material - Pumps
Aluminum
Max. Outlet Pressure
16 psi
Food Grade
No
Power Source
Corded Electric
Includes Discharge Hose
Yes
Motor Enclosure
Explosion Proof
Includes Nozzle
Yes
Nozzle Fluid Compatibility
Diesel
Mount Type
Foot
Includes Suction Tube
Yes
Discharge Connection Type
FNPT
Includes Bung Adapter
No
Container Cover Type Included
No Cover Included
Motor Horsepower
1/6 hp
Pump Connection ID
3/4 in
Adapter Connection Standard
MNPT
Motor Speed
3,900 RPM
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene
Phase
Single
Includes Follower Plate
No Follower Plate Included
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Viscosity
140 SUS
Maximum Fluid Temperature
150 Degrees F
Pump Technology
Vane
For Container Type
Tank
Static Protection
Grounding Line Included
Full Load Current
14 A
Maximum Head Pressure
16 psi
Maximum Flow Rate
12 gpm
Meter Type Included
No Meter Included
Minimum Fluid Temperature
-40 Degrees F
Container Type Included
Drum
Maximum Outlet Pressure
16 psi
Pump Connection OD
1 1/8 in
Maximum Head
3 ft
Hazardous Location Class
Class I/Division 1

Description

DC Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 12V DC, Suction Tube OD 1 in, Hose Length 8 ft, Cord Length 10 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) Not Applicable, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, E15, Gasoline, Kerosene

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
