Shop ACTION PUMP

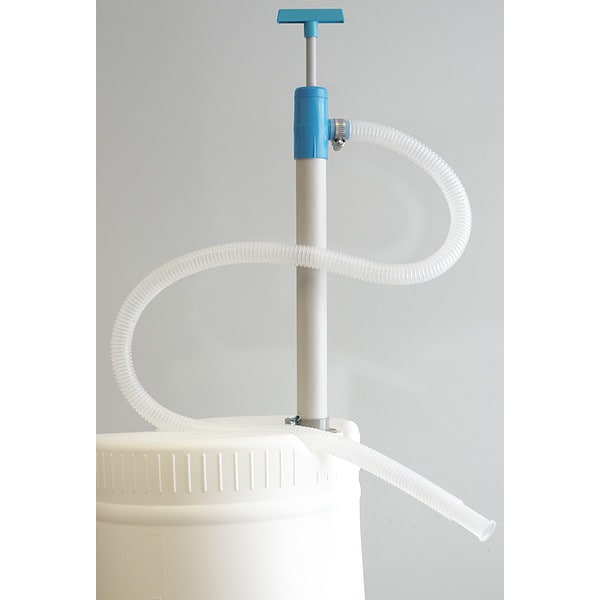

Hand Drum Pump, Piston, PVC, 1-1/8In OD

  • Mfr # 7028

  • Zoro # G3519661

product price:  $26.89
/ea

Key Features

Action Type
Piston
For Media Type
Ammonia, Antifreeze, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oil, Hydrochloric Acid, Hydrofluoric Acid, Isopropanol, Methanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Stoddard Solvent
For Container Size
30 gal, 55 gal
Max. Flow Rate
28 oz per stroke
Max. Viscosity
650 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7028
Zoro #
G3519661
UPC #
791885070287
Country of Origin
United States

Dimensions

For Container Size
30 gal, 55 gal
Manufacturers Warranty Length
1 yr.
Overall Length
42"
Discharge Tube Length
54"
Suction Tube Length
41 in
Hose Length
4 1/2 ft
Adapter Dia.
2"
Inlet Size
1-1/2"
Hose Inside Dia.
1 in
Bung Connection Dia.
2 in
Hose Outside Dia.
1 1/8 in
Height Above Container
8 3/8 in
Hose Outside Diameter
1 1/8 in
Suction Tube Length - Maximum
41 in
Hose Inside Diameter
1 in
Adapter Connection Diameter
2 in

Details

Item
Hand Pump
Action Type
Piston
For Media Type
Ammonia, Antifreeze, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oil, Hydrochloric Acid, Hydrofluoric Acid, Isopropanol, Methanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Stoddard Solvent
Max. Flow Rate
28 oz per stroke
Max. Viscosity
650 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Polyethylene, PVC
Includes Suction Tube
Yes
For Use With
For Dispensing Liquids, Detergents, Most Acids, Cholrines, Oils, D-limonene, Waxes, Alkalis, Water, Soaps
Hose Tube Material
Polyethylene
Discharge Tube Outlet ID
1 in
Discharge Tube Outlet OD
1 1/8 in
Metered
No
Discharge Tubing Material
Polyethylene
Seal Material
PVC
Piston Material
PVC
Gasket Material
PVC
Adapter Material
PVC
Includes
Hose Clamp
pH Range
4 to 11
Ounces per Stroke
28 oz.
Features
All PVC Pump with Polyethylene 54 in Discharge Hose
Type
Piston Action
Suction Tube Type
PVC
Adapter Type
Bung
Agency Compliance
ISO 22241-3
Self-Priming
Yes
Max. Flow GPM
4
Suction Tube Material
PVC
Includes Bung Adapter
Yes
Suction Tube OD
1 1/2 in
Min. Operating Temp.
35 Degrees F
Housing Material - Pumps
PVC
Food Grade
No
Pump Connection ID
1 1/2 in
Not Recommended Chemicals
Acetone, Hydrochloric Acid 100%, Hydrofluoric Acid 100%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%
Max. Head Pressure
3 psi
Max. Head - Pumps
3 ft
Includes Spout
No
Includes Discharge Hose
Yes
For Container Type
Drum
Suction Tube ID
1 1/4 in
Hose Cover Material
Polyethylene
Max. Fluid Temp.
140 Degrees F
Includes Nozzle
No
Runs Dry
Yes
Compatible Chemicals
Power Source
Manual
Adapter Connection Type
MNPT
Max. Outlet Pressure
5 psi
Gear Lube
NT
Maximum Head Pressure
3 psi
Discharge Connection Type
Tube
Maximum Fluid Temperature
140 Degrees F
Minimum Operating Temperature
35 Degrees F
Maximum Viscosity
650 cps
Pump Technology
Piston
Adapter Connection Standard
MNPT
Housing Material
PVC
Mount Type
Bung
Wetted Material
PVC
Maximum Flow Rate
28 oz per stroke
Chemical Compatibility
Meter Type Included
No Meter Included
Static Protection
Not Groundable
Container Cover Type Included
No Cover Included
Maximum Head
3 ft
Includes Follower Plate
No Follower Plate Included
Maximum Outlet Pressure
5 psi
Duty Cycle
Continuous
Power Source - TS Only
Manual

Description

Hand Pump, Max. Outlet Pressure 5 psi, Spout Connection Size Not Applicable, Self-Priming Yes, Metered No, Hose Length 4 1/2 ft, Includes Discharge Hose Yes, Piston Material PVC, Features All PVC Pump with Polyethylene 54 in Discharge Hose, Housing Finish Not Applicable, Seal Material PVC, For Use With For Dispensing Liquids, Detergents, Most Acids, Cholrines, Oils, D-limonene, Waxes, Alkalis, Water, Soaps, Adapter Connection Type MNPT, Discharge Connection Type Tube, For Container Type Drum
