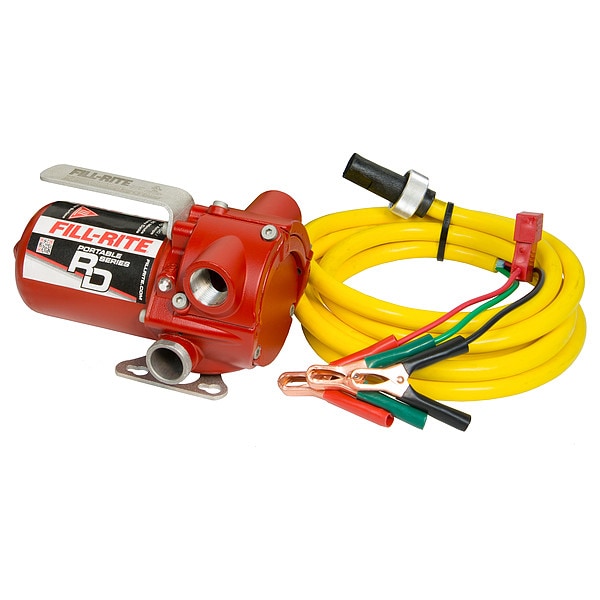

Electric Drum Pump, Aluminum, 12 V DC

  • Mfr # RD1212NN

  • Zoro # G1881400

product price:  $467.99
/ea
Free Shipping & Returns

Key Features

For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Self-Priming
Yes
Features
Portable, Handheld, Gasoline, Kerosene, Ethanol Blends (up to 15%), Methanol Blends (up to 15%), Configurable Inlet and Outlet Flanges, Bypass-Less Construccion, Thermal Proteccion, Quick-Disconnected Power Cable, Self Priming, Portable
HP
1/5
Seal Type
Lip
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RD1212NN
Zoro #
G1881400
UPC #
089404225059
Country of Origin
United States

Dimensions

Outlet Size
3/4 in NPT
Hose Dia.
3/4 in
Overall Height
7 1/4 in
Manufacturers Warranty Length
2 yr
Overall Length
8 7/8 in
Overall Width
8 13/16 in
Inlet Size
3/4 in NPT
Power Cord Length
10 ft
Height Above Container
4 1/8 in
Cord Length
10 ft
For Container Size
35 gal, 55 gal, 100 gal
Adapter Connection Diameter
3/4 in
Wire Rope Length
8 7/8 in

Details

Item
Electric Drum Pump
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Self-Priming
Yes
Features
Portable, Handheld, Gasoline, Kerosene, Ethanol Blends (up to 15%), Methanol Blends (up to 15%), Configurable Inlet and Outlet Flanges, Bypass-Less Construccion, Thermal Proteccion, Quick-Disconnected Power Cable, Self Priming, Portable
HP
1/5
Seal Type
Lip
Voltage
12V DC
RPM
3900
Duty Cycle
30 Minutes On/30 Minutes Off
Bypass Valve
No
Standards
cULus
Seal Material
Buna-N
Includes
10 ft Power Cord with Battery Clips
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
GPM
12 gpm
Metered
No
Transfer Pump Application
Construction, Emergency Response, Farming, Generators, Marine, Refueling Fleet Vehicles
Pressure Range
12 psi to 15 psi
Pump Design
Rotary Vane
Housing Material
Aluminum
Max. Viscosity
140 SUS
Bearing Type
Sealed Ball
Adapter Material
Cast Iron
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Agency Compliance
cULus
Motor RPM
3,900 RPM
Thermal Protection
Yes
Max. Fluid Temp.
150 Degrees F
Full Load Amps
14.0 A
Max. Outlet Pressure
16 psi
Variable Speed
No
Max. Flow Rate
12 gpm
Power Source
Corded Electric
Explosion Proof
Yes
Motor HP
1/6 hp
Food Grade
No
Includes Nozzle
No
Min. Fluid Temp.
-40 Degrees F
Includes Bung Adapter
No
Max. Head - Pumps
3 ft
Housing Material - Pumps
Aluminum
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene
Motor Enclosure
Explosion Proof
Discharge Connection Type
FNPT
Diesel Exhaust Fluid Compatible
No
Max. Head Pressure
16 psi
Includes Suction Tube
No
Rated Voltage
12 V DC
Adapter Connection Type
MNPT
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Includes Discharge Hose
No
Runs Dry
Yes
Mount Type
Foot
Full Load Current
14 A
Maximum Viscosity
140 SUS
Motor Horsepower
1/6 hp
Meter Type Included
No Meter Included
Hazardous Location Class
Class I/Division 1
Maximum Flow Rate
12 gpm
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Container Type Included
Drum
Container Cover Type Included
No Cover Included
Pump Technology
Vane
Maximum Head Pressure
16 psi
Pump Connection OD
1 1/8 in
Pump Connection ID
3/4 in
Maximum Head
3 ft
Includes Follower Plate
No Follower Plate Included
Maximum Outlet Pressure
16 psi
Motor Speed
3,900 RPM
Pump Connection Type
NPT
For Container Type
Tank
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene
Includes Spout
No
Adapter Connection Standard
FNPT
Housing Finish
Powder Coated
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Minimum Fluid Temperature
-40 Degrees F
Static Protection
Grounding Line Included
Maximum Fluid Temperature
150 Degrees F
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Hose Inside Dia. Not Applicable, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length 10 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) Not Applicable
