Shop FILL-RITE

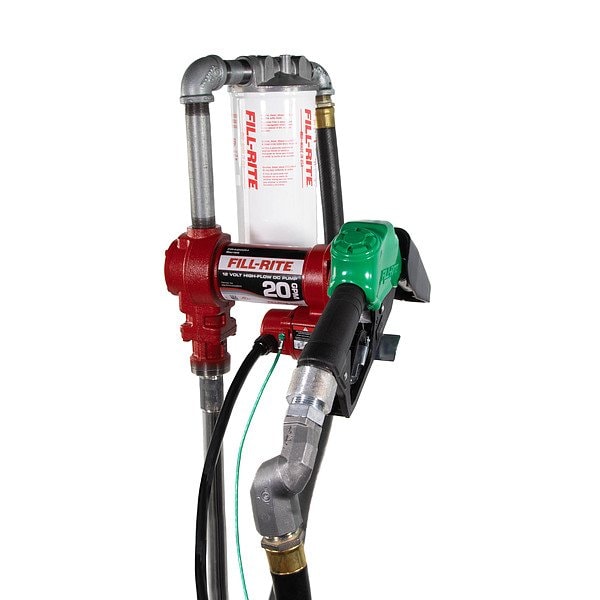

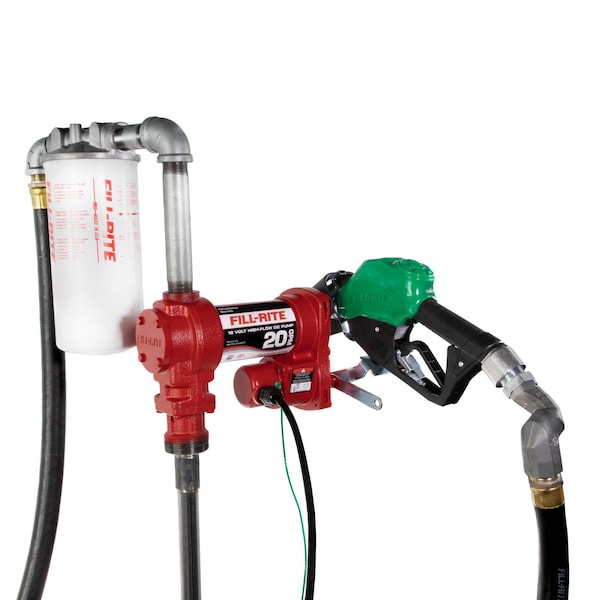

Electric Drum Pump, Cast Iron, 12 V DC

  • Mfr # FR4220HDSFQ

  • Zoro # G722784704

product price:  $1,179.99
/ea
Free Shipping & Returns

Key Features

Maximum Fluid Temperature
150 Degrees F
Hose Tube Material
Nitrile
Spout Length
6 1/2 in
Suction Tube Material
Steel
Self-Priming
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4220HDSFQ
Zoro #
G722784704
UPC #
089404248584
Country of Origin
United States

Dimensions

Spout Length
6 1/2 in
Hose Inside Diameter
1 in
Hose Length
18 ft
Overall Length
13 in
Cord Length
18 ft
For Container Size
35 gal, 55 gal, 80 gal, 275 gal, 500 gal
Suction Tube Length
34 1/2 in
Adapter Connection Diameter
2 in
Hose Outside Diameter
1 3/8 in
Spout Discharge Size
1 in
Wire Rope Length
13 in

Details

Maximum Fluid Temperature
150 Degrees F
Hose Tube Material
Nitrile
Suction Tube Material
Steel
Self-Priming
Yes
Includes Discharge Hose
Yes
Pump Connection OD
1 1/8 in
Includes Suction Tube
Yes
Maximum Oil Flow
20 gpm
Discharge Connection Type
FNPT
Minimum Fluid Temperature
-40 Degrees F
Housing Material
Cast Iron
Meter Type Included
No Meter Included
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Horsepower
1/4 hp
Includes Bung Adapter
No
For Container Type
Tank
Pump Connection ID
3/4 in
Nozzle Fluid Compatibility
Diesel
Includes Follower Plate
No Follower Plate Included
Maximum Viscosity
4 cSt
Hazardous Location Class
Class I/Division 1
Full Load Current
19 A
Maximum Head
37 ft
Thermal Protection
Yes
Features
Easy Installation, Equipment Safeguard, Fluid Compatibility, Long Life, Mobile Tanks, Reliable On-Off Switch, Reliable Performance
Wetted Material
Buna-N/Ceramic/Cork/Fluorocarbon/Stainless Steel/Steel/Thermoset
Motor Speed
2,600 RPM
Nozzle Operation
Automatic
Includes
Hose, Installation Components, Swivel
Adapter Connection Standard
MNPT
Item
Electric Drum Pump
Duty Cycle
30 Minutes On/30 Minutes Off
Standards
cUL, UL Listed
Static Protection
Grounding Line Included
Includes Spout
Yes
Suction Tube ID
1 3/16 in
Mount Type
Bung
Container Cover Type Included
No Cover Included
Variable Speed
No
Container Type Included
Drum
Hose Cover Material
Neoprene
Rated Voltage
12 V DC
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene, Mineral Spirits
Discharge Tube Outlet ID
1 in
Power Source - TS Only
Corded Electric
Spout Material
Aluminum
Suction Tube OD
1 5/16 in
Pump Technology
Vane
Nozzle Material
Aluminum
Maximum Flow Rate
20 gpm
Includes Nozzle
Yes
Maximum Outlet Pressure
16 psi
Power Source
Corded Electric

Description

Electric Drum Pump, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 18 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter No, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Discharge Connection Type FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
