Shop FILL-RITE

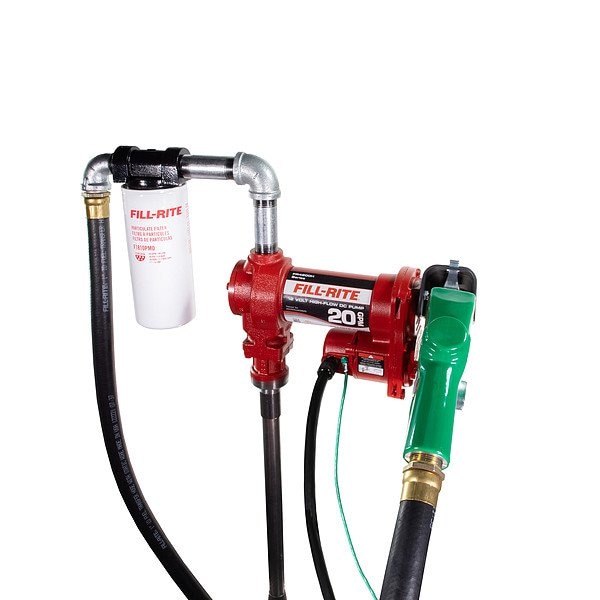

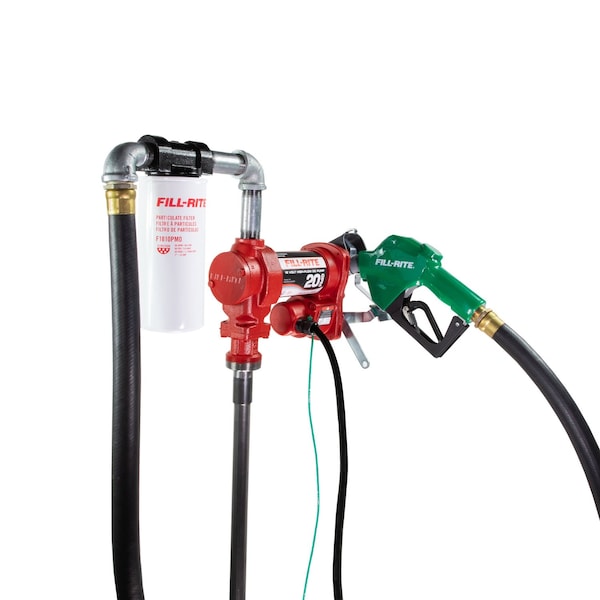

Electric Drum Pump, Cast Iron, 12 V DC

  • Mfr # FR4210HDF

  • Zoro # G322785118

product price:
$
685.99
/ea
Free Shipping & Returns

Key Features

Maximum Outlet Pressure
16 psi
Suction Tube Material
Steel
Self-Priming
Yes
Pump Connection OD
1 1/8 in
Maximum Flow Rate
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4210HDF
Zoro #
G322785118
UPC #
089404257999
Country of Origin
United States

Dimensions

Hose Length
12 ft
Overall Length
13 in
Adapter Connection Diameter
2 in
Suction Tube Length
34 1/2 in
Spout Length
6 1/2 in
Hose Inside Diameter
1 in
Spout Discharge Size
1 in
For Container Size
35 gal, 55 gal, 80 gal, 275 gal, 500 gal
Hose Outside Diameter
1 3/8 in
Cord Length
18 ft
Wire Rope Length
13 in
Length
13 in

Details

Maximum Outlet Pressure
16 psi
Suction Tube Material
Steel
Self-Priming
Yes
Pump Connection OD
1 1/8 in
Maximum Flow Rate
20 gpm
Discharge Connection Type
FNPT
Pump Connection ID
3/4 in
Features
Easy Installation, Equipment Safeguard, Fluid Compatibility, Long Life, Mobile Tanks, Reliable On-Off Switch, Reliable Performance
Item
Electric Drum Pump
Includes Follower Plate
No Follower Plate Included
Maximum Fluid Temperature
150 Degrees F
Nozzle Material
Aluminum
Nozzle Fluid Compatibility
Diesel
Pump Technology
Vane
Suction Tube OD
1 5/16 in
Duty Cycle
30 Minutes On/30 Minutes Off
Includes Discharge Hose
Yes
Standards
cUL, UL Listed
Maximum Viscosity
4 cSt
Spout Material
Aluminum
Housing Material
Cast Iron
For Container Type
Tank
Full Load Current
19 A
Container Type Included
Drum
Rated Voltage
12 V DC
Power Source - TS Only
Corded Electric
Motor Horsepower
1/4 hp
Nozzle Operation
Automatic
Maximum Oil Flow
20 gpm
Adapter Connection Standard
MNPT
Includes Suction Tube
Yes
Includes Nozzle
Yes
Minimum Fluid Temperature
-40 Degrees F
Motor Speed
2,600 RPM
Includes Bung Adapter
Yes
Chemical Compatibility
Biodiesel, Diesel, Gasoline, Kerosene, Mineral Spirits
Hazardous Location Class
Class I/Division 1
Includes Spout
Yes
Container Cover Type Included
No Cover Included
Suction Tube ID
1 3/16 in
Thermal Protection
Yes
Maximum Head
37 ft
Meter Type Included
No Meter Included
Variable Speed
No
Mount Type
Bung
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Wetted Material
Buna-N/Ceramic/Cork/Fluorocarbon/Stainless Steel/Steel/Thermoset
Includes
Hose, Installation Components
Static Protection
Grounding Line Included
Hose Cover Material
Neoprene
Discharge Tube Outlet ID
1 in
Power Source
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Discharge Connection Type FNPT
