Shop FILL-RITE

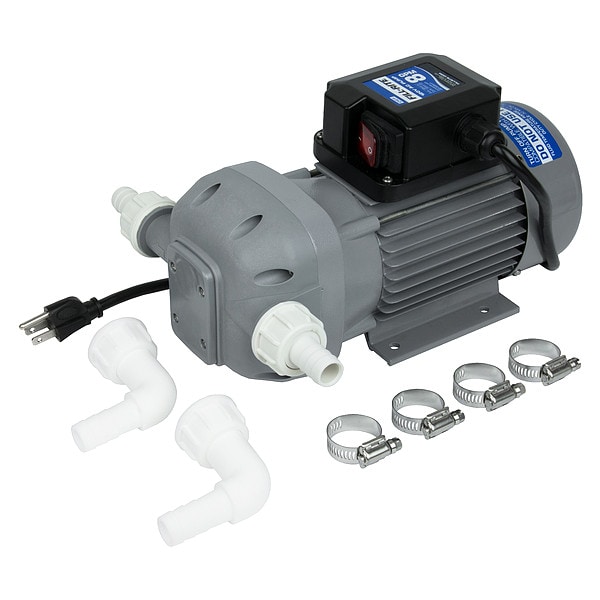

Electric Operated Drum Pump, 120VAC, 8 Max. Flow Rate , 1/4 HP, Stainless steel, 1" BSPP Inlet

  • Mfr # DF120N

  • Zoro # G5527580

product price:
$
331.99
/ea
Free Shipping & Returns

Key Features

For Use With
Diesel Exhaust Fluid
Includes
(2) 1 in BSPP x 3/4 in Hose Barb 90 Degrees Elbows, (2) 1 in BSPP x 3/4 in Hose Barb Straight Fittings, (4) Worm Gear Hose Clamps
Max. Viscosity
40 cps
Motor Type
Capacitor Start
Power Source
Corded Electric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DF120N
Zoro #
G5527580
UPC #
089404245798
Country of Origin
United States

Dimensions

Outlet Size
3/4"
Inlet Size
1" BSPP
Manufacturers Warranty Length
2 yr
Overall Height
6-45/64"
Overall Length
15 1/4 in
Cord Length
72 in
Overall Width
7-13/64"
For Container Size
55 gal, 275 gal, 330 gal, 350 gal
Height Above Container
2 1/2 in
Adapter Connection Diameter
3/4 in
Wire Rope Length
15 1/4 in
Length
15 1/4 in

Details

For Use With
Diesel Exhaust Fluid
Item
Electric Drum Pump
Includes
(2) 1 in BSPP x 3/4 in Hose Barb 90 Degrees Elbows, (2) 1 in BSPP x 3/4 in Hose Barb Straight Fittings, (4) Worm Gear Hose Clamps
Max. Viscosity
40 cps
Motor Type
Capacitor Start
Power Source
Corded Electric
Wetted Materials
EPDM, Nylon, Santoprene, Stainless Steel
Voltage
120VAC
Motor Enclosure
TEFC
Metered
No
Motor RPM
3,400 RPM
Features
Integral Pulsation Dampener, Smooth Flow
Duty Cycle
Intermittent
Application
Dispensing Diesel Fuel
Shaft Material
Stainless Steel
Max. Liquid Temp.
140 Degrees F
Phase
Single
Adapter Material
Nylon
Max. Specific Gravity
1.1
Max. Head
16 ft.
Max. GPM for Water
8
GPM
8
Pump Body Material
Stainless Steel
Suction Lift
6 ft.
Max. Pressure
38 psi
Self-Priming
Yes
HP
1/4
Housing Material
Polypropylene
RPM
3400
Hz
60
Pressure Range
38 psi
Seal Type
O-ring
Adapter Type
3/4" HB
Seal Material
EPDM
Bearing Type
Ball
Duty
Intermittent
Gasket Material
EPDM
Amps
2.4
Max. Temp.
140 Degrees F
Bypass Valve
Internal
Type
Electric
Pump Design
Rugged Multi-Diaphragm
Agency Compliance
ETL
Not Recommended Chemicals
Diesel Exhaust Fluid Compatible
Yes
Includes Bung Adapter
No
Includes Nozzle
No
Pump Connection OD
1 1/8 in
Number of Phases
1
Variable Speed
No
Runs Dry
Yes
Noise Level
80 dB
Housing Material - Pumps
Polypropylene
Max. Flow Rate
8 gpm
Discharge Tube Outlet ID
3/4 in
Pump Connection Type
BSP
Min. Fluid Temp.
15 Degrees F
Frequency (Hz)
60 Hz
Full Load Amps
2.4 A
For Container Type
Drum, Tote
Food Grade
No
Max. Head Pressure
38 psi
Max. Head - Pumps
30 ft
Compatible Chemicals
DEF
Discharge Connection Type
BSP
Pump Connection ID
3/4 in
For Media Type
DEF
Includes Discharge Hose
No
Motor HP
1/4 hp
Includes Suction Tube
No
Discharge Tube Outlet OD
1 in
Plug Type
Type B
Max. Fluid Temp.
120 Degrees F
Max. Outlet Pressure
38 psi
Grease
NT
Rated Voltage
115 V AC
Gear Lube
NT
Container Type Included
Drum
Frequency
60 Hz
Standards
ETL
Full Load Current
2.4 A
Maximum Fluid Temperature
120 Degrees F
Maximum Flow Rate
8 gpm
Minimum Fluid Temperature
15 Degrees F
Chemical Compatibility
DEF
Includes Spout
No
Maximum Outlet Pressure
38 psi
Maximum Head Pressure
38 psi
Motor Horsepower
1/4 hp
Maximum Head
30 ft
Wetted Material
EPDM/Nylon/Santoprene/Stainless Steel
Container Cover Type Included
No Cover Included
Static Protection
No Grounding Line Included
Mount Type
Foot
Motor Speed
3,400 RPM
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included
Maximum Viscosity
40 cps
Motor Enclosure Design
Totally Enclosed Fan Cooled
Pump Technology
Vane
Adapter Connection Standard
Hose Barb
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The FILL-RITE DF120N is an electric operated drum pump for transferring diesel exhaust fluid (DEF) from drums and totes. It operates on 115V AC power and uses a multi-diaphragm pump design with EPDM seals and wetted materials compatible with DEF. This pump is self-priming, rated for intermittent duty, and includes installation components for drum and IBC tote setups. It does not include a discharge hose or nozzle.

Key features of the FILL-RITE DF120N:

  • DEF compatible: Designed for use with diesel exhaust fluid.
  • Flow rate: Delivers up to 8 gpm.
  • Power: 115V AC motor, 1/4 hp, 2.4 A, single phase, 60 Hz.
  • Pump design: Multi-diaphragm construction with an integral pulsation dampener for smoother flow.
  • Pressure: Maximum outlet pressure of 38 psi.
  • Priming and operation: Self-priming and capable of running dry.
  • Container fit: For use with 55 gal drums and 275 gal or 330 gal totes.
  • Materials: Stainless steel pump body and shaft with EPDM, nylon, and Santoprene wetted materials.
  • Connections: 1 in. BSPP inlet and 3/4 in. outlet.
  • Included components: Suction tube, two 1 in. BSPP x 3/4 in. hose barb 90° elbows, two 1 in. BSPP x 3/4 in. hose barb straight fittings, and four worm gear hose clamps.
  • Electrical cord: 72 in. cord with Type B plug.
  • Agency listing: ETL.
