Shop FILL-RITE

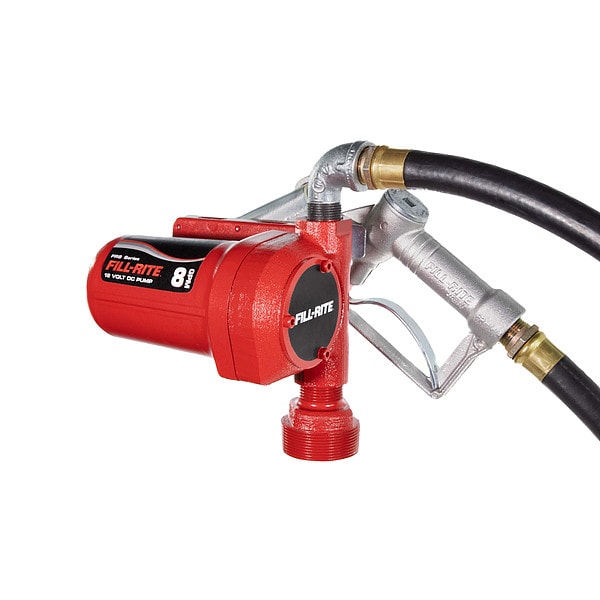

Electric Drum Pump, Cast Iron, 12 V DC

  • Mfr # FR8

  • Zoro # G811118953

product price:  $377.99
/ea
Free Shipping & Returns

Key Features

Includes
Ground Wire
Max. Viscosity
300 cps
Power Source
Corded Electric
Wetted Materials
Acetal, Cast Iron, Fluorocarbon, Stainless Steel, Steel
Metered
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR8
Zoro #
G811118953
UPC #
089404249857
Country of Origin
United States

Dimensions

Hose Length
12 ft
Cord Length
15 ft
Hose Outside Dia.
3/4 in
Overall Length
8 7/8 in
Bung Connection Dia.
2 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Adapter Connection Diameter
2 in
Hose Outside Diameter
1 1/8 in
Suction Tube Length
43 15/16 in
Spout Length
6 in
Hose Inside Diameter
3/4 in
Spout Discharge Size
3/4 in
Wire Rope Length
8 7/8 in

Details

Item
Electric Drum Pump
Includes
Ground Wire
Max. Viscosity
300 cps
Power Source
Corded Electric
Wetted Materials
Acetal, Cast Iron, Fluorocarbon, Stainless Steel, Steel
Metered
No
Motor RPM
2,700 RPM
Full Load Amps
10 A
Max. Flow Rate
8 gpm
Nozzle Material
Aluminum
Max. Head Pressure
12 psi
Discharge Tube Outlet OD
3/4 in
Thermal Protection
Yes
Mount Type
Bung
Food Grade
No
Discharge Connection Type
FNPT
For Media Type
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Includes Nozzle
Yes
Max. Fluid Temp.
180 Degrees F
Explosion Proof
Yes
Nozzle Operation
Manual
Motor HP
1/12 hp
Includes Suction Tube
Yes
Compatible Chemicals
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Diesel Exhaust Fluid Compatible
No
Housing Material - Pumps
Cast Iron
Includes Discharge Hose
Yes
Rated Voltage
12 V DC
Pump Connection ID
3/4 in
Includes Follower Plate
No Follower Plate Included
Maximum Head
32 ft
Minimum Fluid Temperature
-40 Degrees F
Adapter Connection Standard
MNPT
Container Type Included
Drum
Spout Material
Aluminum
Maximum Viscosity
300 cps
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Hose Cover Material
Neoprene
Hose Tube Material
Nitrile
Maximum Fluid Temperature
150 Degrees F
Hazardous Location Class
Class I/Division 1
Includes Bung Adapter
Yes
Maximum Outlet Pressure
12 psi
Variable Speed
No
Suction Tube Material
Steel
For Container Type
Tank
Wetted Material
Acetal/Cast Iron/Fluorocarbon/Stainless Steel/Steel
Housing Material
Cast Iron
Maximum Flow Rate
8 gpm
Suction Tube ID
1 3/16 in
Maximum Head Pressure
12 psi
Pump Connection OD
1 1/8 in
Suction Tube OD
1 5/16 in
Static Protection
Grounding Line Included
Motor Speed
2,700 RPM
Container Cover Type Included
No Cover Included
Includes Spout
Yes
Motor Horsepower
1/12 hp
Full Load Current
10 A
Meter Type Included
No Meter Included
Pump Technology
Vane
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene
Power Source - TS Only
Corded Electric

Description

Electric Operated Drum Pump, Max. Head Pressure 12 psi, Rated Voltage 12V DC, Hose Length 12 ft, Cord Length 15 ft, Nozzle Operation Manual, Thermal Protection Yes, Power Source Electric, Includes Discharge Hose Yes, Compatible Chemicals Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene, Discharge Connection Type NPT, Includes Nozzle Yes, Nozzle Material Aluminum
