  9. Flowmeter, 50 PSI, 40 GPM, 1-1/2in., Digital
Shop All Flowmeters
Fill-Rite

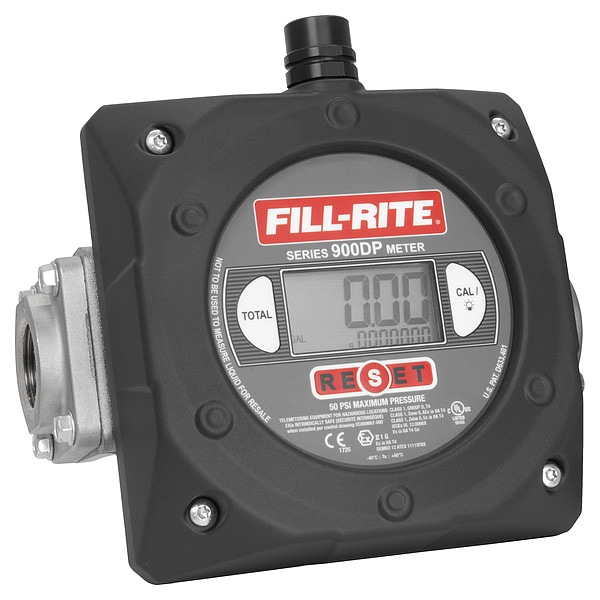

Flowmeter, 50 PSI, 40 GPM, 1-1/2in., Digital

product price: $474.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Liquid
  • Housing Material Aluminum
  • For Pipe Size 1 1/2 in
  • Connection Size 1 1/2 in
  • Flow Material B20, Diesel, E15, Gasoline, Kerosene
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 900CDPX1.5
  • Zoro # G4315510
  • UPC #
    089404223826
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 1/2 in
Connection Size 1 1/2 in
Height (In.) 6-1/2
Manufacturers Warranty Length 2 yr
Length (In.) 10-1/2"
Width 7 1/2 in
Height 6 1/2 in
Width (In.) 7-1/2"
Length 10 1/2 in
Connection Size (In.) 1-1/2 NPT
Overall Width 7.5 in
Overall Length 5 in
Manufacturer Warranty Length 2 yr
Overall Height 6.5 in

Details

Item Mechanical Flowmeter
Type Liquid
Housing Material Aluminum
Flow Material B20, Diesel, E15, Gasoline, Kerosene
Connection Type FNPT
Max. Pressure 50 psi
Wetted Materials Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity 50 SUS
Flow Range 6 to 40 gpm
Fitting Brass
Fluid Temp. Range -40 Degrees to 140 Degrees F
Display Digital
Thread NPT
Chamber Material Polypropylene
Agency Compliance UL Listed
Accuracy (%) +/-1.25
Seal Material Buna-N
Flow Range (GPM) 6 to 40
Max. Viscosity (SSU) 50
Flow Range @ GPM/LPM 6 to 40 / 23 to 150
Application Agriculture, Construction, Industrial, Mining, Municipalities
O-Ring Buna
GPM Max. 40 gpm
Output Pulse
Master Totalizer 999,999 gal
Max. Temp. (F) 176
Pressure Drop - 100% Flow (PSI) 11.0 psi
Max. Pressure (PSI) 50
Resetable Cumulative Totalizer 9,999 gal
Pulses per Gallon 10 pulses/gal
Flow Range @ GPH 360 to 2400
Pressure Drop - 50% Flow (PSI) 2.5 psi
Output Type Standard Frequency Pulse
Standards ATEX, cULus Listed
Shaft Material Stainless Steel
Display Type Digital
Product Type Digital Fuel Transfer Meter
Includes Flow Rate Adjustment Knob Yes
Accuracy +/-1.25%
Pulse Rate 10 pulses/gal
Flowmeter Type Paddlewheel
Includes Totalizer Yes
Wetted Material Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Media Temperature - Minimum -40 Degrees F
Mounting Orientation Universal
Operating Pressure - Maximum 50 psi
Unit Of Measure Gallons, Liters
Viscosity - Maximum 50 SUS
O-Ring Material Buna-N
Rotor Material PPS
Flow Rate - Minimum 6 gpm
Media Temperature - Maximum 140 Degrees F
Flow Rate - Maximum 40 gpm
Includes Pressure Gauge No
Compatible Flow Material B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids

Description

Flowmeter, Liquid, GPM Max. 40, Max. Pressure (PSI) 50, Connection Size (In.) 1-1/2 NPT, Max. Temp. (F) 176, Length (In.) 10-1/2, Width (In.) 7-1/2, Height (In.) 6-1/2, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 40 gpm, Display Digital, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1-1/2 In.
