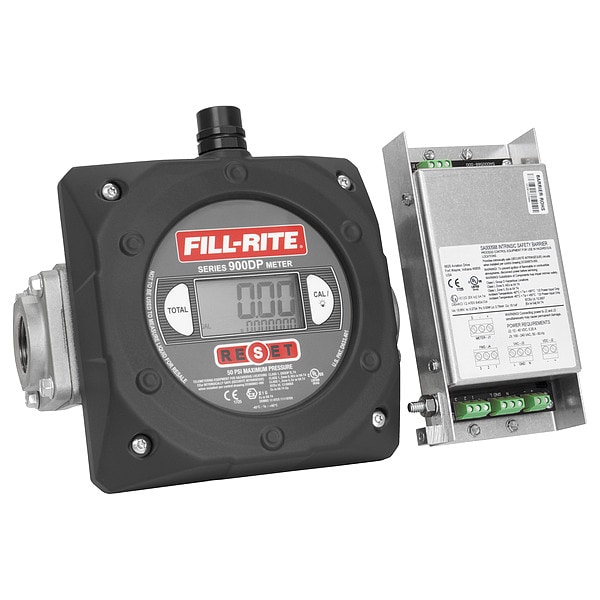

Flowmeter, 50 PSI, 40 GPM, 1 in., Pulse

  • Mfr # 900CDP1.5
  • Zoro # G4315599
product price:
$
895.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Liquid
For Pipe Size
1 1/2 in
Connection Size
1 1/2 in
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
900CDP1.5
Zoro #
G4315599
UPC #
089404215593
Country of Origin
United States

Dimensions

For Pipe Size
1 1/2 in
Connection Size
1 1/2 in
Width
10 in
Connection Size (In.)
1 NPT
Width (In.)
10"
Manufacturers Warranty Length
2 yr
Height (In.)
7-1/2
Length (In.)
12 in
Height
7 1/2 in
Length
4 in
Overall Length
4 in
Overall Width
10 in
Overall Height
7.5 in
Manufacturer Warranty Length
2 yr
Wire Rope Length
4 in

Details

Item
Mechanical Flowmeter
Housing Material
Aluminum
Type
Liquid
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity
50 SUS
Flow Range
6 to 40 gpm
Fluid Temp. Range
-40 Degrees to 140 Degrees F
Fitting
Brass
Display
Mechanical
Resetable Cumulative Totalizer
9,999 gal
Flow Range (GPM)
6 to 40
Output
Pulse
Flow Range @ GPM/LPM
6 to 40 / 23 to 150
Seal Material
Buna-N
Master Totalizer
999,999 gal
Agency Compliance
UL Listed
Thread
NPT
Pulses per Gallon
10 pulses/gal
O-Ring
Buna
Pressure Drop - 50% Flow (PSI)
2.5 psi
Pressure Drop - 100% Flow (PSI)
11.0 psi
Chamber Material
Polypropylene
Max. Pressure (PSI)
50
Accuracy (%)
+/-1.25
Application
Agriculture, Construction, Industrial, Mining, Municipalities
Max. Temp. (F)
176 Degrees F
Max. Viscosity (SSU)
50
Flow Range @ GPH
360 to 2400
GPM Max.
40 gpm
Display Type
Digital
Shaft Material
Stainless Steel
Output Type
Standard Frequency Pulse
Standards
ATEX, cULus Listed
Product Type
Fuel Meter
Includes Totalizer
Yes
Operating Pressure - Maximum
50 psi
Includes Flow Rate Adjustment Knob
Yes
Pulse Rate
10 pulses/gal
Flow Rate - Maximum
40 gpm
Compatible Flow Material
B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Media Temperature - Maximum
140 Degrees F
O-Ring Material
Buna-N
Accuracy
+/-1.25%
Includes Pressure Gauge
No
Flowmeter Type
Paddlewheel
Flow Rate - Minimum
6 gpm
Mounting Orientation
Universal
Wetted Material
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Viscosity - Maximum
50 SUS
Media Temperature - Minimum
-40 Degrees F
Rotor Material
PPS
Unit Of Measure
Gallons, Liters

Description

Flowmeter, Liquid, GPM Max. 40, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 176, Length (In.) 12, Width (In.) 10, Height (In.) 7-1/2, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 40 gpm, Display Mechanical, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1-1/2 In.
