  9. Flowmeter, Turbine, 50GPM, 1 In MNPT
Shop All Flowmeters
Blancett

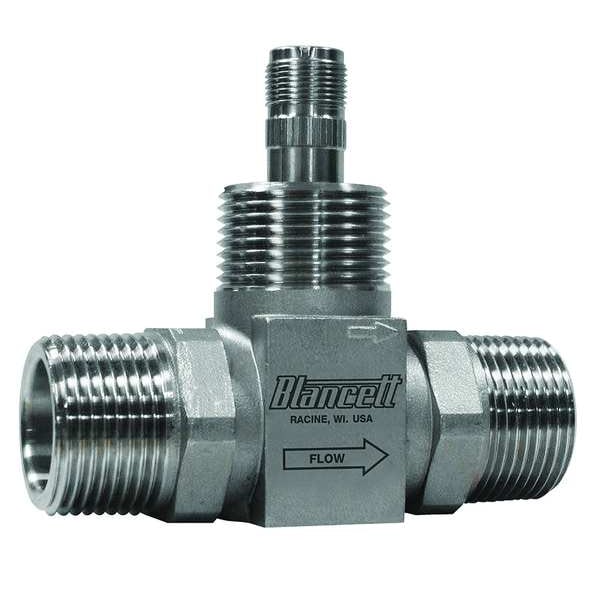

Flowmeter, Turbine, 50GPM, 1 In MNPT

product price: $539.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Turbine
  • Housing Material Stainless Steel
  • For Pipe Size 1 in
  • Connection Size 1 in
  • Flow Material Low Viscosity Fluids, Water
See all product information

Product Information

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Width 1 7/8 in
Connection Size (In.) 1 MNPT
Length (In.) 4"
Height 3 in
Width (In.) 1-7/8"
Length 4 in
Height (In.) 3
Manufacturers Warranty Length 1 yr
Overall Width 1.9 in
Overall Height 3 in
Overall Length 4 in
Manufacturer Warranty Length 1 yr

Details

Item Mechanical Flowmeter
Type Turbine
Housing Material Stainless Steel
Flow Material Low Viscosity Fluids, Water
Connection Type NPT
Max. Pressure 5,000 psi
Max. Viscosity 150 SUS
Wetted Materials 316 Stainless Steel, Tungsten Carbide
Flow Range 5 to 50 gpm
Fitting 1/2 in MNPT
Fluid Temp. Range -150 Degrees to 350 Degrees F
Max. Viscosity (SSU) 400
Flow Range (GPM) 5 to 50
Pressure Drop - 100% Flow (PSI) 20.0 psi
Output Frequency
Pulses per Gallon 870 pulses/gal
GPM Max. 50 gpm
Accuracy (%) 1% of reading
Temp. 350 Degrees F
Max. Pressure (PSI) 5000
Shaft Material Tungsten Carbide
Agency Compliance CSA, MET LABS
Chamber Material 316 Stainless Steel
Flow Range (LPM) 18.9 to 189.3
Max. Temp. (F) 350
Output Type Standard Frequency Pulse
Standards CSA C22.2 No. 30-M1986, Met Labs File No. E11286, UL1203
Product Type Turbine Flow Meter
Operating Pressure - Maximum 5,000 psi
Flow Rate - Minimum 5 gpm
Includes Pressure Gauge No
Includes Totalizer No
Unit Of Measure Gallons
Includes Flow Rate Adjustment Knob No
Wetted Material 316 Stainless Steel, Tungsten Carbide
Media Temperature - Maximum 425 Degrees F
Compatible Flow Material Oils, Water
Flow Rate - Maximum 50 gpm
Mounting Orientation Universal
Media Temperature - Minimum -150 Degrees F
Accuracy +/-1%
Viscosity - Maximum 150 SUS
Rotor Material Stainless Steel
Flowmeter Type Turbine
Pulse Rate 870 pulses/gal

Description

Mechanical Flowmeter, Product Type Turbine Flow Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material Oils, Water, Media Temperature - Maximum 425 Degrees F, Media Temperature - Minimum -150 Degrees F, Viscosity - Maximum 150 SUS, Voltage - Maximum Not Applicable, Housing Material Stainless Steel, Rotor Material Stainless Steel, O-Ring Material Not Applicable, Seal Material Not Applicable, Shaft Material Tungsten Carbide
