This item is Discontinued.

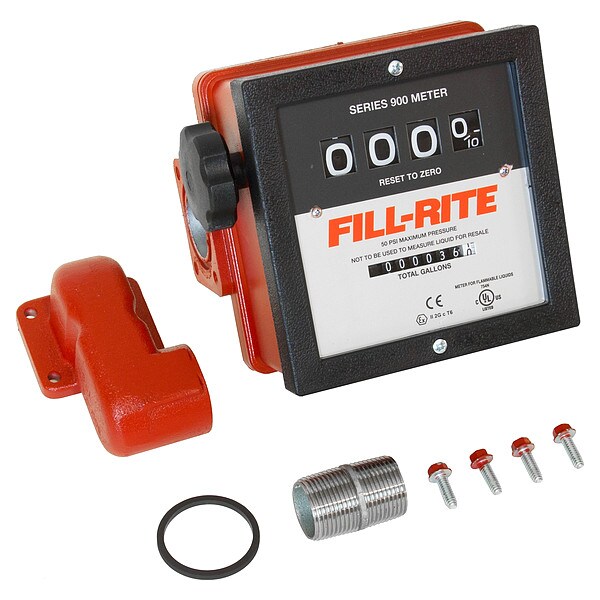

Fill-Rite Flowmeter, 50 PSI, 40 GPM, Mechanical 901CMK300

Flowmeter, 50 PSI, 40 GPM, Mechanical (Discontinued)

  • Mfr # 901CMK300
  • Zoro # G4315617
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
901CMK300
Zoro #
G4315617
UPC #
089404077924
Country of Origin
United States

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Height (In.)
6-1/2
Manufacturers Warranty Length
2 yr
Height
6 1/2 in
Connection Size (In.)
1 NPT
Width (In.)
7-1/2"
Width
7 1/2 in
Length
10 1/2 in
Length (In.)
10-1/2"
Overall Width
7.5 in
Overall Height
6.5 in
Manufacturer Warranty Length
2 yr
Overall Length
5.5 in

Details

Item
Mechanical Flowmeter
Type
Liquid
Housing Material
Aluminum
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity
50 SUS
Flow Range
6 to 40 gpm
Fluid Temp. Range
-40 Degrees to 140 Degrees F
Fitting
Brass
Max. Viscosity (SSU)
50
Pressure Drop - 50% Flow (PSI)
2.5 psi
Flow Range @ GPM/LPM
6 to 40 / 23 to 150
Max. Temp. (F)
130
GPM Max.
40 gpm
Max. Pressure (PSI)
50
Accuracy (%)
+/-2
Display
Mechanical
Chamber Material
Polypropylene
Seal Material
Buna-N
Pressure Drop - 100% Flow (PSI)
11.0 psi
Application
Agriculture, Construction, Industrial, Mining, Municipalities
Resetable Cumulative Totalizer
9,999 gal
Master Totalizer
999,999 gal
Flow Range (GPM)
6 to 40
Agency Compliance
UL Listed
Flow Range @ GPH
360 to 2400
Thread
NPT
O-Ring
Buna
Shaft Material
Stainless Steel
Display Type
Mechanical
Standards
CE Certified, cULus Listed
Product Type
4-Digit Mechanical Fuel Transfer Meter
Mounting Orientation
Universal
O-Ring Material
Buna-N
Media Temperature - Maximum
140 Degrees F
Wetted Material
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Includes Flow Rate Adjustment Knob
Yes
Accuracy
+/-2%
Flow Rate - Minimum
6 gpm
Includes Pressure Gauge
No
Rotor Material
PPS
Flowmeter Type
Paddlewheel
Flow Rate - Maximum
40 gpm
Unit Of Measure
Gallons
Operating Pressure - Maximum
50 psi
Includes Totalizer
Yes
Compatible Flow Material
Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Pulse Rate
10 pulses/gal
Viscosity - Maximum
50 SUS
Media Temperature - Minimum
-40 Degrees F

Description

Flowmeter, Liquid, GPM Max. 40, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 130, Length (In.) 10-1/2, Width (In.) 7-1/2, Height (In.) 6-1/2, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 40 gpm, Display Mechanical, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1 In.
