Shop FILL-RITE

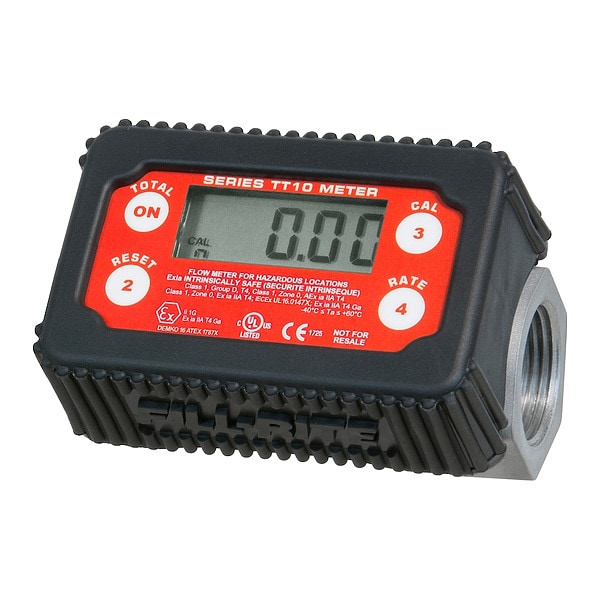

Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm

  • Mfr # TT10AB

  • Zoro # G7406905

product price:
$
239.99
/ea
Free Shipping & Returns

Key Features

Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Length (In.)
3 in
Housing Material
Aluminum
Display Type
Digital
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TT10AB
Zoro #
G7406905
UPC #
089404226292
Country of Origin
United States
Item
Flowmeter
Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Housing Material
Aluminum
Display Type
Digital
Connection Type
BSPP
Rotor Type
Acetal
Flow Range @ GPH
120 to 2100
Flow Range (LPM)
8 to 132
Type
Turbine
Flow Material
Diesel, Gasoline, Heptane, Jet Fuel, Kerosene, Mineral Spirits
Display Units
Gallons, Liters, Ounces, Pints, Quarts
Flow Range
2 to 35 gpm
Accuracy (%)
+/-1
Sensor Type
Reed Switch
Max. Viscosity
370 SUS
Max. Pressure
50 psi
Wetted Materials
Acetal, Aluminum, Gold, Stainless Steel
Fluid Temp. Range
-40 Degrees to 176 Degrees F
Flow Range (GPM)
2 to 35
Seal Material
Buna-N, Viton
Wetted Material
Acetal, Gold, Nickle Plated Aluminum, Stainless Steel
Includes Flow Rate Adjustment Knob
Yes
O-Ring Material
Buna-N
Flowmeter Type
Turbine
Viscosity - Maximum
370 SUS
Unit Of Measure
Gallons, Liters
Rotor Material
Acetal
Includes Totalizer
Yes
Pulse Rate
10 pulses/gal
Mounting Orientation
Universal
Shaft Material
Stainless Steel
Media Temperature - Minimum
-40 Degrees F
Flow Rate - Minimum
2 gpm
Media Temperature - Maximum
176 Degrees F
Includes Pressure Gauge
No
Flow Rate - Maximum
35 gpm
Compatible Flow Material
Diesel, Fuels, Gasoline, Solvents
Product Type
In-Line Digital Turbine Meter
Operating Pressure - Maximum
50 psi
Voltage - Maximum
Battery

Description

Flowmeter, Product Type In-Line Digital Turbine Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type BSPP, Compatible Flow Material Diesel, Fuels, Gasoline, Solvents, Media Temperature - Maximum 176 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 370 SUS, Voltage - Maximum Battery, Housing Material Aluminum, Rotor Material Acetal, O-Ring Material Buna-N, Seal Material Buna-N, Viton, Shaft Material Stainless Steel
