Flowmeter, For 1" Pipe, FNPT, 2 to 35 gpm

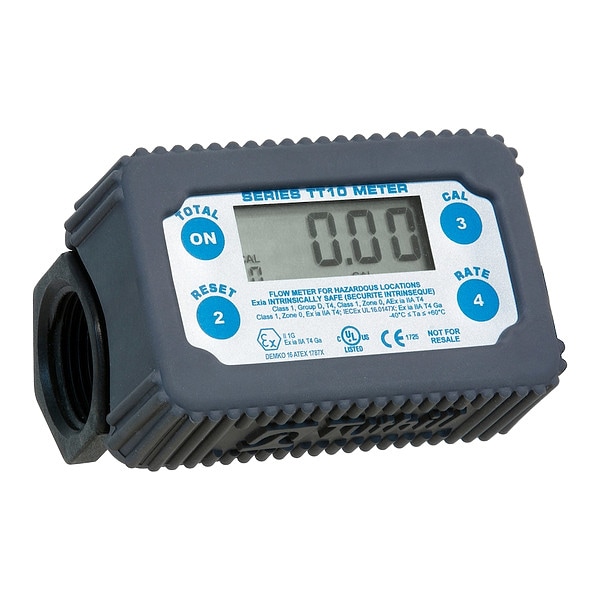

The FILL-RITE TT10PN is a 4-digit digital turbine flowmeter for measuring low-viscosity chemical transfer. It is designed for in-line installation on 1 in NPT connections and measures flow rates from 2 to 35 gpm with +/-1% accuracy. The meter is compatible with fluids including DEF, antifreeze, chemicals, de-icing fluids, and non-potable water, and it is factory calibrated for more than 20 fluids. Its digital display can show gallons, liters, ounces, pints, and quarts, and the display rotates 180° for viewing in different mounting positions.

Key features of the FILL-RITE TT10PN flowmeter:

• Flow range: Measures 2 to 35 gpm (8 to 132 lpm) for low-viscosity fluid transfer applications.
• Accuracy: Rated at +/-1% for transfer measurement and record keeping.
• Connection: 1 in NPT threaded ports for in-line installation.
• Display: 4-digit digital display with selectable units including gallons, liters, ounces, pints, and quarts.
• Totalizer: Includes a non-resettable totalizer to track cumulative transferred volume.
• Fluid compatibility: Suitable for DEF, antifreeze, chemicals, de-icing fluids, and water.
• Temperature and pressure: Operates with fluid temperatures from 0 to 130 degrees F and pressure up to 50 psi.
• Construction: Polycarbonate housing with wetted materials including gold, polypropylene, stainless steel, and UHMWPE; Buna-N and Viton seals.
• Mounting: Universal mounting orientation with a rotating display for different installation positions.
• Additional features: Includes a flow rate adjustment knob and a reed switch sensor with a pulse rate of 10 pulses per gallon.
