  9. Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm

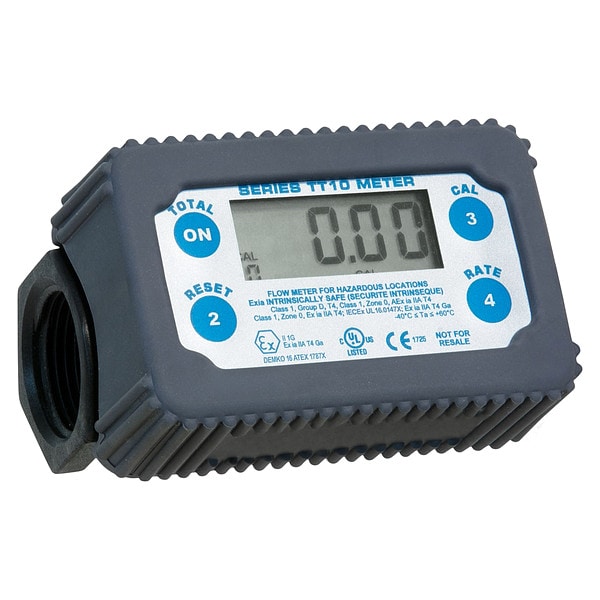

Fill-Rite Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm TT10PB - main

Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm

  • Mfr # TT10PB

  • Zoro # G7379377

product price: $254.99
/ea
Free Shipping & Returns

Key Features

Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Length (In.)
3 in
Housing Material
Polycarbonate
Display Type
Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TT10PB
Zoro #
G7379377
UPC #
089404226339
Country of Origin
United States

Dimensions

Length (In.)
3 in
Connection Size
1 in
For Pipe Size
1 in
Overall Length
3 in

Details

Item
Flowmeter
Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Housing Material
Polycarbonate
Display Type
Digital
Connection Type
BSPP
Accuracy (%)
+/-1
Flow Material
Antifreeze, Chemicals, DEF, Deicing Fluid, Non-Potable Water
Flow Range
2 to 35 gpm
Flow Range (LPM)
8 to 132
Flow Range (GPM)
2 to 35
Max. Viscosity
370 SUS
Wetted Materials
Gold, Polypropylene, Stainless Steel, UHMWPE
Type
Turbine
Sensor Type
Reed Switch
Fluid Temp. Range
0 Degrees to 130 Degrees F
Rotor Type
UHMWPE
Display Units
Gallons, Liters, Ounces, Pints, Quarts
Flow Range @ GPH
120 to 2100
Max. Pressure
50 psi
Media Temperature - Maximum
130 Degrees F
Voltage - Maximum
Battery
O-Ring Material
Buna-N
Seal Material
Buna-N, Viton
Product Type
In-Line Digital Turbine Meter
Operating Pressure - Maximum
50 psi
Includes Pressure Gauge
No
Rotor Material
UHMWPE
Pulse Rate
10 pulses/gal
Flow Rate - Minimum
2 gpm
Shaft Material
Stainless Steel
Unit Of Measure
Gallons, Liters
Flow Rate - Maximum
35 gpm
Includes Totalizer
Yes
Compatible Flow Material
DEF, Antifreeze, Chemicals, De-Icing Fluids, Water
Flowmeter Type
Turbine
Media Temperature - Minimum
0 Degrees F
Wetted Material
Gold, Polypropylene, Stainless Steel, UHMWPE
Includes Flow Rate Adjustment Knob
Yes
Viscosity - Maximum
370 SUS
Mounting Orientation
Universal

Description

Flowmeter, Product Type In-Line Digital Turbine Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type BSPP, Compatible Flow Material DEF, Antifreeze, Chemicals, De-Icing Fluids, Water, Media Temperature - Maximum 130 Degrees F, Media Temperature - Minimum 0 Degrees F, Viscosity - Maximum 370 SUS, Voltage - Maximum Battery, Housing Material Polycarbonate, Rotor Material UHMWPE, O-Ring Material Buna-N, Seal Material Buna-N, Viton

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
