Fuel Transfer Pump, 115/230V AC, 35 gpm Max. Flow Rate , 3/4 HP, Cast Iron

  • Mfr # FR311VB
  • Zoro # G6723543
product price:
$
1,955.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC, 230V AC
Application
For Use With Above Ground and Underground Tanks
HP
3/4
Housing Material
Cast Iron
GPM
35 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR311VB
Zoro #
G6723543
UPC #
089404090602
Country of Origin
United States

Dimensions

Inlet Size
Inlet Size, Bung : 2 in Male NPT; Suction Pipe 1 1/4 in Female NPT
Overall Width
17 in
Overall Length
15 in
Hose Dia.
1 in
Outlet Size
1 in
Overall Height
19 1/4 in
Manufacturers Warranty Length
2 yr
Hose Length
18 ft
Cord Length
1 ft
Hose Outside Dia.
1 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal, 10,000 gal
Hose Inside Diameter
1 in
Adapter Connection Diameter
2 in
Spout Length
6 1/2 in
Spout Discharge Size
1 in
Hose Outside Diameter
1 3/8 in
Wire Rope Length
15 in
Length
15 in
Fits Chest Size
Explosion Proof Motor, Thermal Overload Protection

Details

Voltage
115V AC, 230V AC
Application
For Use With Above Ground and Underground Tanks
HP
3/4
Housing Material
Cast Iron
GPM
35 gpm
Seal Material
Carbon
RPM
1725/1425
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Features
Explosion Proof Motor, Thermal Overload Protection
Amps AC
9.8/4.9/11.4/5.7 A
Standards
cULus
Pressure Range
0 psi to 26 psi
Transfer Pump Application
Agriculture, Construction, Farming
Nozzle Type
Automatic
Includes
Cable
For Use With
Diesel
Metered
Yes
Duty Cycle
30 Minutes On/30 Minutes Off
Compatible Fluids
B20, Diesel, E-15, Gasoline, Kerosene
Bypass Valve
Internal
Nozzle Material
Aluminum
Bearing Type
Sealed Ball
Motor Enclosure
Explosion Proof
Motor Type
Permanent Magnet
Agency Compliance
cULus
Max. Head - Pumps
60 ft
Motor RPM
1,725 RPM
Housing Material - Pumps
Cast Iron
Nozzle Fluid Compatibility
Diesel
For Media Type
B20, Diesel, E15, Gasoline, Kerosene
Meter Unit Of Measure
Gallons
Max. Flow Rate
35 gpm
Nozzle Operation
Automatic
Meter Type
Mechanical
Max. Outlet Pressure
26 psi
Explosion Proof
Yes
Includes Nozzle
Yes
Discharge Connection Type
FNPT
Max. Head Pressure
26 psi
Power Source
Corded Electric
Pump Connection Type
NPT
Mount Type
Bung
Motor HP
3/4 hp
Includes Discharge Hose
Yes
Full Load Amps
11.4 A
Rated Voltage
230 V AC
Compatible Chemicals
B20, Diesel, E15, Gasoline, Kerosene
Meter Type Included
Mechanical
Variable Speed
No
Frequency
50/60 Hz
Maximum Head
60 ft
Maximum Outlet Pressure
26 psi
Phase
Single
Includes Bung Adapter
Yes
Minimum Fluid Temperature
-40 Degrees F
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Maximum Fluid Temperature
150 Degrees F
Hazardous Location Class
Class I/Division 1
Motor Speed
1,725 RPM
Includes Suction Tube
No
Hose Tube Material
Nitrile
Spout Material
Aluminum
Maximum Head Pressure
26 psi
Includes Spout
Yes
Full Load Current
11.4 A
Maximum Flow Rate
35 gpm
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Chemical Compatibility
B20, Diesel, E15, Gasoline, Kerosene
Container Type Included
Drum
Pump Connection OD
1 3/8 in
Includes Follower Plate
No Follower Plate Included
Pump Technology
Vane
Adapter Connection Standard
MNPT
Motor Horsepower
3/4 hp
Pump Connection ID
1 in
For Container Type
Tank
Static Protection
No Grounding Line Included
Hose Cover Material
Neoprene
Maximum Viscosity
50 SUS
Container Cover Type Included
No Cover Included
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

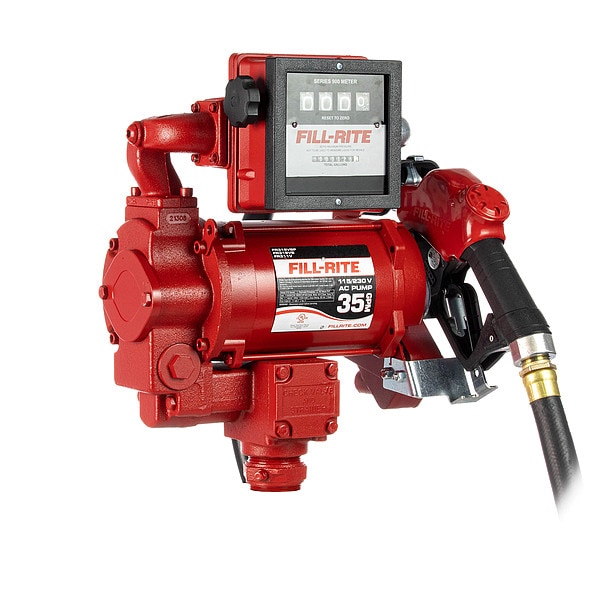

The FILL-RITE FR311VB is an electric fuel transfer pump for mounting on aboveground or underground tanks. It uses a rotary vane pump design and a 115/230V AC motor to deliver up to 35 gpm. This bundle includes a mechanical gallon meter, 18 ft discharge hose, automatic nozzle, and cable for fuel dispensing applications. The pump is built with a cast iron housing, mounts to a 2 in bung, and is self-priming.

Key Features of the FILL-RITE FR311VB Fuel Transfer Pump:

  • Flow Rate: Delivers up to 35 gpm for transferring fuel from stationary tanks.
  • Voltage: Dual-voltage 115/230V AC motor with 3/4 hp output.
  • Pump Design: Rotary vane pump supports consistent fuel transfer performance over time.
  • Construction: Cast iron housing with sealed ball bearings for heavy-duty service.
  • Metered Dispensing: Includes a mechanical meter that measures in gallons.
  • Included Components: Supplied with meter, discharge hose, nozzle, and cable.
  • Hose and Nozzle: Includes an 18 ft x 1 in hose and an automatic aluminum nozzle.
  • Mounting and Connections: Bung mount with 2 in male NPT inlet and 1 in outlet connection.
  • Fluid Compatibility: For use with diesel, gasoline, kerosene, E15, and biodiesel blends up to B20.
  • Motor Protection: Thermal overload protection helps limit overheating during operation.
  • Duty Cycle: Rated for 30 minutes on and 30 minutes off.
  • Pressure: Operates in a 0 to 26 psi range with a maximum head of 60 ft.
  • Motor Enclosure: Explosion proof motor enclosure.
  • Listings: cULus; cUL and UL.
