Shop FILL-RITE

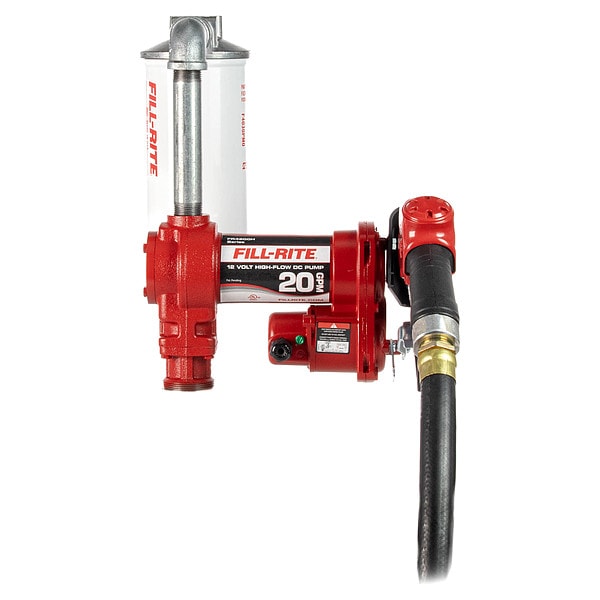

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in MNPT Inlet

  • Mfr # FR4210HBFQ

  • Zoro # G1694122

product price:  $1,089.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4210HBFQ
Zoro #
G1694122
UPC #
089404223192
Country of Origin
United States

Dimensions

Inlet Size
1 in MNPT
Overall Height
17 in
Overall Width
9 in
Manufacturers Warranty Length
2 yr
Hose Dia.
1 in
Overall Length
14 in
Suction Tube Length
34 1/2 in
Hose Length
18 ft
Power Cord Length
25 ft
Outlet Size
3/4 in FNPT
Cord Length
18 ft
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Hose Outside Dia.
1 in
Spout Discharge Size
1 in
Hose Outside Diameter
1 3/8 in
Hose Inside Diameter
1 in
Adapter Connection Diameter
2 in
Spout Length
6 1/2 in

Details

Voltage
12V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Carbon/Ceramic
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Standards
cULus
Nozzle Material
Aluminum
Transfer Pump Application
Agriculture, Construction, Farming
Includes
Battery, Cable
Bypass Valve
Internal
Features
Explosion Proof Motor, Thermal Overload Protection
Bearing Type
Permanently Lubricated Ball
Nozzle Type
Ultra High Flow Automatic
Pressure Range
0 psi to 16 psi
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Metered
No
Duty Cycle
30 Minutes On/30 Minutes Off
Amps AC
20 A
Motor Enclosure
Explosion Proof
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Type
Permanent Magnet
Agency Compliance
cULus
Max. Head - Pumps
37 ft
Motor RPM
2,600 RPM
Housing Material - Pumps
Cast Iron
Full Load Amps
28.0 A
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Explosion Proof
Yes
Pump Connection Type
NPT
Mount Type
Bung
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Thermal Protection
Yes
Max. Flow Rate
20 gpm
Nozzle Fluid Compatibility
Diesel
Includes Suction Tube
Yes
Motor HP
1/4 hp
Power Source
Corded Electric
Includes Nozzle
Yes
Max. Outlet Pressure
16 psi
Discharge Connection Type
FNPT
Rated Voltage
12 V DC
Includes Discharge Hose
Yes
Max. Head Pressure
16 psi
Nozzle Operation
Automatic
Filter Included
Particulate Filter
Runs Dry
Yes
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Flow Rate
20 gpm
Includes Bung Adapter
Yes
Hose Cover Material
Neoprene
Meter Type Included
No Meter Included
Maximum Head
37 ft
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Maximum Head Pressure
16 psi
Spout Material
Aluminum
Maximum Outlet Pressure
16 psi
Pump Connection ID
3/4 in
Variable Speed
No
Pump Connection OD
1 1/8 in
Includes Spout
Yes
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Suction Tube Material
Steel
Suction Tube ID
1 3/16 in
Static Protection
Grounding Line Included
Hazardous Location Class
Class I/Division 1
Motor Horsepower
1/4 hp
Includes Follower Plate
No Follower Plate Included
Container Type Included
Drum
Hose Tube Material
Nitrile
Full Load Current
28 A
Suction Tube OD
1 5/16 in
Maximum Viscosity
39.5 SUS
For Container Type
Tank
Minimum Fluid Temperature
-40 Degrees F
Motor Speed
2,600 RPM
Container Cover Type Included
No Cover Included
Maximum Fluid Temperature
150 Degrees F
Adapter Connection Standard
MNPT
Pump Technology
Vane
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 18 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes

Restrictions

Hazardous material
This is a restricted item in the USA. It cannot be used for potable water applications.
