Shop FILL-RITE

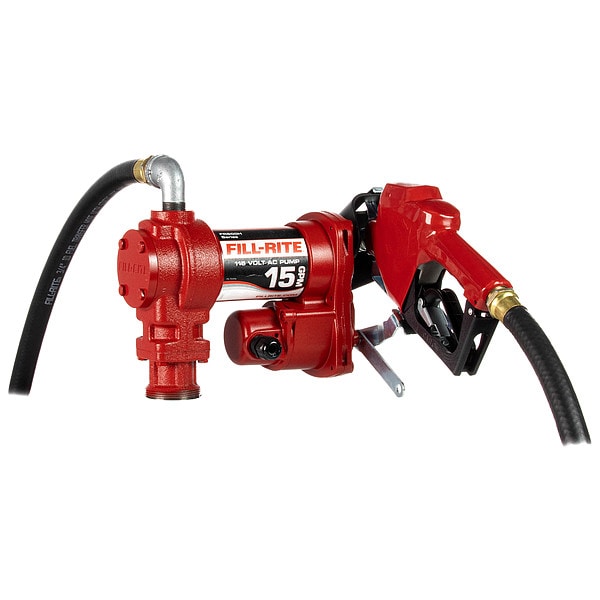

Fuel Transfer Pump, 115V AC, 15 gpm Max. Flow Rate , 1/6 HP, Cast Iron, 1 in MNPT Inlet

  • Mfr # FR610HA

  • Zoro # G5295945

product price:  $652.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Application
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15 and Kerosene
HP
1/6
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR610HA
Zoro #
G5295945
UPC #
089404223253
Country of Origin
United States

Dimensions

Inlet Size
1 in MNPT
Hose Dia.
3/4 in
Suction Tube Length
34 1/2 in
Overall Width
13 1/4 in
Overall Height
15 3/4 in
Hose Length
12 ft
Outlet Size
3/4 in FNPT
Overall Length
16 in
Manufacturers Warranty Length
2 yr
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Hose Outside Dia.
3/4 in
Adapter Connection Diameter
2 in
Hose Inside Diameter
3/4 in
Spout Discharge Size
3/4 in
Hose Outside Diameter
1 1/8 in
Spout Length
6 1/2 in

Details

Voltage
115V AC
Application
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15 and Kerosene
HP
1/6
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Carbon/Ceramic
RPM
2000
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Nozzle Material
Aluminum
Includes
Cable
Bearing Type
Sealed Ball
Duty Cycle
30 Minutes On/30 Minutes Off
Transfer Pump Application
Agriculture, Construction, Farming
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Amps AC
1.5 A
Metered
No
Nozzle Type
Automatic
Pressure Range
0 psi to 16 psi
Bypass Valve
Internal
Standards
cULus
Features
Explosion Proof Motor, Thermal Overload Protection
For Use With
Bio-Diesal up to B20 E15. Kerosene, Diesel, Gasoline
Motor Type
Permanent Magnet
Motor Enclosure
Explosion Proof
Agency Compliance
cULus
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor RPM
2,000 RPM
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Motor HP
1/6 hp
Includes Suction Tube
Yes
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Max. Head Pressure
16 psi
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Nozzle Operation
Automatic
Discharge Connection Type
FNPT
Max. Outlet Pressure
16 psi
Rated Voltage
115 V AC
Max. Flow Rate
15 gpm
Thermal Protection
Yes
Includes Discharge Hose
Yes
Pump Connection Type
NPT
Includes Nozzle
Yes
Power Source
Corded Electric
Explosion Proof
Yes
Full Load Amps
2.5 A
Mount Type
Bung
Nozzle Fluid Compatibility
Diesel
Runs Dry
Yes
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Motor Speed
2,000 RPM
Meter Type Included
No Meter Included
Pump Technology
Vane
Adapter Connection Standard
MNPT
Pump Connection OD
1 1/8 in
Static Protection
Grounding Line Included
Container Cover Type Included
No Cover Included
Hose Tube Material
Nitrile
Suction Tube OD
1 5/16 in
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Full Load Current
2.5 A
Maximum Head Pressure
16 psi
Spout Material
Aluminum
Motor Horsepower
1/6 hp
Pump Connection ID
3/4 in
Maximum Outlet Pressure
16 psi
Hose Cover Material
Neoprene
Maximum Viscosity
50 SUS
Includes Follower Plate
No Follower Plate Included
Maximum Head
37 ft
Hazardous Location Class
Class I/Division 1
Includes Bung Adapter
Yes
Maximum Flow Rate
15 gpm
Minimum Fluid Temperature
-40 Degrees F
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Suction Tube Material
Steel
Container Type Included
Drum
For Container Type
Tank
Suction Tube ID
1 3/16 in
Maximum Fluid Temperature
150 Degrees F
Includes Spout
Yes
Variable Speed
No

Description

The FILL-RITE FR610HA is an electric fuel transfer pump for stationary tank mounting in agriculture, construction, and farming applications. It operates on 115V AC power and delivers up to 15 GPM. The pump has a cast iron housing and a rotary vane design, and it is used for transferring gasoline, diesel, biodiesel up to B20, E15, kerosene, and mineral spirits. This model includes the pump, a 3/4 in. x 12 ft hose, nozzle, cable, and suction tube for installation and fuel dispensing.

Key Features of the FILL-RITE FR610HA Fuel Transfer Pump:

  • 15 GPM flow rate: Supports fuel transfer up to 15 gallons per minute.
  • 115V AC electric motor: Connects to a standard 115V AC power source.
  • Cast iron housing: Pump body is made of cast iron.
  • Rotary vane pump design: Built with a rotary vane pumping mechanism.
  • Fuel compatibility: Handles gasoline, diesel, biodiesel up to B20, E15, kerosene, and mineral spirits.
  • Explosion proof motor: Motor enclosure is rated explosion proof.
  • Thermal overload protection: Includes thermal protection for the motor.
  • Self-priming and runs dry: Designed to self-prime and operate during dry run conditions.
  • Internal bypass valve: Includes an internal bypass valve within the pump.
  • Connection sizes: 1 in. MNPT inlet and 3/4 in. FNPT outlet with NPT connections.
  • Included hose and nozzle: Comes with a 3/4 in. x 12 ft discharge hose and automatic aluminum nozzle.
  • Bung mount and suction tube: Configured for bung mounting and includes a 34 in. suction tube.
  • Duty cycle: Rated for 30 minutes on and 30 minutes off.
  • Pressure and head: Maximum outlet pressure is 16 psi with a maximum head of 37 ft.
  • Agency compliance: cULus; Standards: UL/CUL.
