Shop FILL-RITE

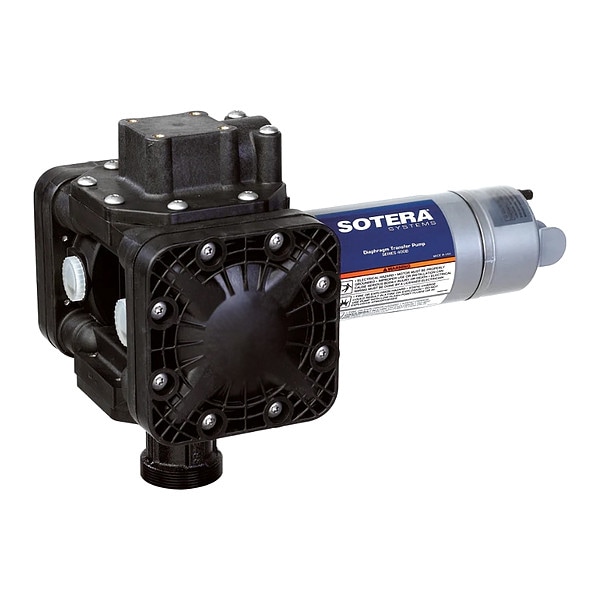

Fuel Transfer Pump, 12V DC, 13 gpm Max. Flow Rate , 1/4 HP, Polypropylene, 1 in NPT Inlet

  • Mfr # SS415BX670

  • Zoro # G4315775

product price:
$
700.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS415BX670
Zoro #
G4315775
UPC #
089404213445
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Manufacturers Warranty Length
5 yr
Pump Mount Size
2 in
Power Cord Length
20 ft
Overall Height
6 1/4 in
Overall Length
8 3/4 in
Overall Width
14 in
Outlet Size
1 in NPT
For Container Size
55 gal, 330 gal, 350 gal
Bung Connection Dia.
2 in
Height Above Container
12 1/4 in
Adapter Connection Diameter
2 in
Wire Rope Length
8 3/4 in
Length
8 3/4 in

Details

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
Seal Material
EPDM
RPM
2600
Pump Design
Santoprene Diaphragm
Self-Priming
No
Seal Type
O-ring
Max. Viscosity
3,000 cps
Item
Electric Drum Pump
For Use With
Fertilizers, Mild Acid, Pesticides, Water
Duty Cycle
30 Minutes On/30 Minutes Off
Bypass Valve
No
Features
Automatically Goes Neutral, Glass-Reinforced Polypropylene Pump Housing, Spring Driven Configuration
Transfer Pump Application
Agriculture, Construction, Farming
Bearing Type
Ball
Metered
No
Compatible Fluids
Fertilizers, Mild Acid, Pesticides, Water
Pressure Range
15 psi
Includes
Fittings, Straight Flange
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Santoprene, Stainless Steel
Motor Enclosure
Non-Explosion Proof
Adapter Material
Polypropylene
Motor RPM
2,600 RPM
Housing Material - Pumps
Polypropylene
Max. Head - Pumps
37 ft
Explosion Proof
No
Adapter Connection Type
MNPT
For Media Type
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Thermal Protection
Yes
Includes Discharge Hose
No
Motor HP
1/4 hp
Mount Type
Bung
Max. Fluid Temp.
150 Degrees F
Diesel Exhaust Fluid Compatible
No
Max. Outlet Pressure
15 psi
Rated Voltage
12 V DC
Runs Dry
Yes
Includes Suction Tube
No
Includes Nozzle
No
Food Grade
No
Min. Fluid Temp.
-40 Degrees F
Max. Flow Rate
13 gpm
Includes Bung Adapter
Yes
Variable Speed
No
Discharge Connection Type
FNPT
Compatible Chemicals
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Power Source
Corded Electric
Maximum Viscosity
3,000 cps
Meter Type Included
No Meter Included
Chemical Compatibility
Fertilizers, Herbicides, Pesticides, Water
Maximum Flow Rate
13 gpm
Maximum Head
37 ft
Maximum Fluid Temperature
150 Degrees F
For Container Type
Drum
Motor Horsepower
1/4 hp
Static Protection
No Grounding Line Included
Includes Follower Plate
No Follower Plate Included
Pump Connection OD
1 3/8 in
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Outlet Pressure
15 psi
Motor Speed
2,600 RPM
Pump Connection ID
1 in
Minimum Fluid Temperature
-40 Degrees F
Wetted Material
Buna-N/Santoprene/Stainless Steel
Pump Technology
Diaphragm
Includes Spout
No
Container Cover Type Included
No Cover Included
Container Type Included
Drum
Adapter Connection Standard
MNPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Fertilizers, Mild Acid, Pesticides, Water, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length Not Applicable, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) Not Applicable, Power Source - TS Only Corded Electric, Variable Speed No
