Shop FILL-RITE

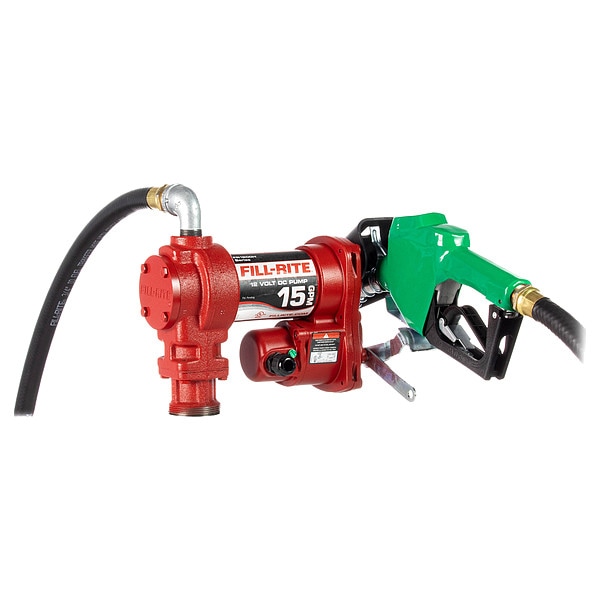

Fuel Transfer Pump, 12V DC, 15 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet

  • Mfr # FR1210HA1

  • Zoro # G4315748

product price:  $582.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR1210HA1
Zoro #
G4315748
UPC #
089404224175
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Overall Length
11 in
Hose Dia.
1 in
Pump Mount Size
2 in
Power Cord Length
20 ft
Outlet Size
3/4 in NPT
Overall Height
8 in
Suction Tube Length
34 1/2 in
Hose Length
12 ft
Overall Width
13 in
Manufacturers Warranty Length
2 yr
Cord Length
18 ft
Hose Outside Dia.
3/4 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Adapter Connection Diameter
2 in
Hose Inside Diameter
3/4 in
Spout Discharge Size
3/4 in
Hose Outside Diameter
1 1/8 in
Spout Length
6 1/2 in

Details

Voltage
12V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Carbon
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Pressure Range
0 psi to 16 psi
Bypass Valve
Yes
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Metered
No
Bearing Type
Sealed Ball
Nozzle Type
Automatic
Duty Cycle
30 Minutes On/30 Minutes Off
Nozzle Material
Aluminum
Standards
cULus
Transfer Pump Application
Agriculture, Construction, Farming
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Includes
Cable
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Agency Compliance
cULus
Motor Type
Permanent Magnet
Housing Material - Pumps
Cast Iron
Motor RPM
2,600 RPM
Max. Head - Pumps
37 ft
Power Source
Corded Electric
Includes Suction Tube
Yes
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Discharge Connection Type
FNPT
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Max. Flow Rate
15 gpm
Includes Nozzle
Yes
Motor HP
1/4 hp
Full Load Amps
26.0 A
Mount Type
Bung
Includes Discharge Hose
Yes
Nozzle Fluid Compatibility
Diesel
Pump Connection Type
NPT
Nozzle Operation
Automatic
Thermal Protection
Yes
Rated Voltage
12 V DC
Max. Outlet Pressure
16 psi
Max. Head Pressure
16 psi
Runs Dry
Yes
Motor Speed
2,600 RPM
Hose Cover Material
Neoprene
Includes Spout
Yes
Includes Follower Plate
No Follower Plate Included
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Minimum Fluid Temperature
-40 Degrees F
Maximum Outlet Pressure
16 psi
Suction Tube Material
Steel
Pump Connection OD
1 1/8 in
Includes Bung Adapter
Yes
Maximum Head
37 ft
Maximum Head Pressure
16 psi
For Container Type
Tank
Maximum Fluid Temperature
150 Degrees F
Container Type Included
Drum
Suction Tube ID
1 3/16 in
Hazardous Location Class
Class I/Division 1
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Hose Tube Material
Nitrile
Pump Technology
Vane
Maximum Viscosity
39.5 SUS
Motor Horsepower
1/4 hp
Container Cover Type Included
No Cover Included
Static Protection
Grounding Line Included
Spout Material
Aluminum
Variable Speed
No
Suction Tube OD
1 5/16 in
Maximum Flow Rate
15 gpm
Pump Connection ID
3/4 in
Adapter Connection Standard
MNPT
Full Load Current
26 A
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Meter Type Included
No Meter Included

Description

The FILL-RITE FR1210HA1 is a 12V DC fuel transfer pump with a rotary vane design and a maximum flow rate of 15 GPM. It is built with a cast iron housing and mounts to a 2 in bung for use on transfer tanks and other fuel storage applications. This pump is designed for use with gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. The bundle includes a discharge hose, automatic nozzle, suction tube, cable, and installation components.

Key Features of the FILL-RITE FR1210HA1 Fuel Transfer Pump:

  • 12V DC Power: Operates on 12V DC power for mobile fuel transfer applications.
  • 15 GPM Flow Rate: Delivers up to 15 gallons per minute for transferring fuel.
  • Rotary Vane Pump: Uses an iron rotor with carbon rotary vanes for fuel transfer operation.
  • Cast Iron Housing: Cast iron construction provides a durable pump body for field and job site use.
  • 2 in Bung Mount: Designed for mounting on tanks with a 2 in bung opening.
  • Self-Priming: Self-priming pump design supports faster startup during use.
  • Thermal Protection: Motor includes thermal protection to help prevent overheating.
  • Pressure Control: Includes a bypass valve and pressure relief valve with a maximum outlet pressure of 16 psi.
  • Included Components: Supplied with a 12 ft hose, automatic aluminum nozzle, and 33-3/4 in suction tube.
  • Electrical Cable: Includes an 18 ft cord for connection during installation.
  • Duty Cycle: Rated for 30 minutes on and 30 minutes off.
  • Listings: cULus and UL Listed.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
