Shop FILL-RITE

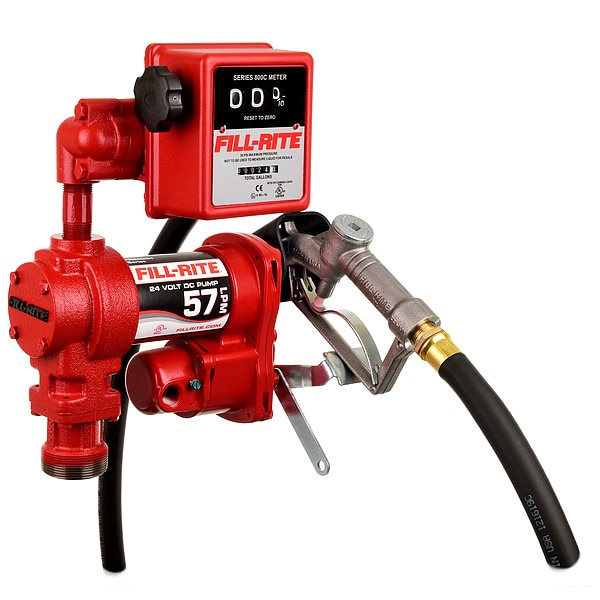

Fuel Transfer Pump, 24V DC, 15 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in MNPT Inlet

  • Mfr # FR2411H

  • Zoro # G6459153

product price:  $863.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FR2411H
Zoro #
G6459153
UPC #
089404223130
Country of Origin
United States

Dimensions

Inlet Size
1 in MNPT
Overall Width
10 in
Suction Tube Length
34 1/2 in
Hose Length
12 ft
Outlet Size
1 in FNPT
Overall Length
15 in
Power Cord Length
18 ft
Overall Height
11 in
Manufacturers Warranty Length
2 yr
Hose Dia.
3/4 in
Cord Length
18 ft
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Hose Outside Dia.
3/4 in
Hose Outside Diameter
1 1/8 in
Spout Discharge Size
3/4 in
Hose Inside Diameter
3/4 in
Spout Length
6 in
Adapter Connection Diameter
2 in

Details

Voltage
24V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Carbon/Ceramic
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Bypass Valve
Internal
Nozzle Material
Aluminum
Pressure Range
0 psi to 16 psi
Duty Cycle
30 Minutes On/30 Minutes Off
Includes
Cable
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Features
Explosion Proof Motor, Thermal Overload Protection
Standards
cULus
Nozzle Type
Manual
Metered
Yes
Amps AC
30 A
Transfer Pump Application
Agriculture, Construction, Farming
Bearing Type
Sealed Ball
For Use With
Bio-Diesal up to B20 E15. Kerosene, Diesel, Gasoline
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Enclosure
Explosion Proof
Motor Type
Permanent Magnet
Agency Compliance
cULus
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Motor RPM
4,000 RPM
Max. Outlet Pressure
16 psi
Motor HP
1/4 hp
Meter Unit Of Measure
Gallons
Includes Suction Tube
Yes
Full Load Amps
15.0 A
Pump Connection Type
NPT
Includes Discharge Hose
Yes
Max. Flow Rate
15 gpm
Mount Type
Bung
Max. Head Pressure
16 psi
Explosion Proof
Yes
Meter Type
Mechanical
Power Source
Corded Electric
Thermal Protection
Yes
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Discharge Connection Type
FNPT
Includes Nozzle
Yes
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Rated Voltage
24 V DC
Nozzle Operation
Manual
Runs Dry
Yes
Nozzle Fluid Compatibility
Diesel
Meter Type Included
Mechanical
Variable Speed
No
Suction Tube Material
Steel
Motor Speed
4,000 RPM
Maximum Flow Rate
15 gpm
Pump Technology
Vane
Full Load Current
15 A
Pump Connection OD
1 1/8 in
Hazardous Location Class
Class I/Division 1
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Adapter Connection Standard
MNPT
Hose Cover Material
Neoprene
Maximum Head Pressure
16 psi
For Container Type
Tank
Motor Horsepower
1/4 hp
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Container Cover Type Included
No Cover Included
Maximum Viscosity
39.5 SUS
Static Protection
Grounding Line Included
Container Type Included
Drum
Includes Spout
Yes
Spout Material
Aluminum
Hose Tube Material
Nitrile
Suction Tube OD
1 5/16 in
Includes Bung Adapter
Yes
Maximum Fluid Temperature
150 Degrees F
Minimum Fluid Temperature
-40 Degrees F
Suction Tube ID
1 3/16 in
Pump Connection ID
3/4 in
Maximum Outlet Pressure
16 psi
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Includes Follower Plate
No Follower Plate Included
Maximum Head
37 ft
Power Source - TS Only
Corded Electric

Description

Fuel Transfer Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesal up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 24V DC, Hose Length 12 ft, Suction Tube Length 40 in, Cord Length 18 ft, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source Electric, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits, Discharge Connection Type NPT
