Shop FILL-RITE

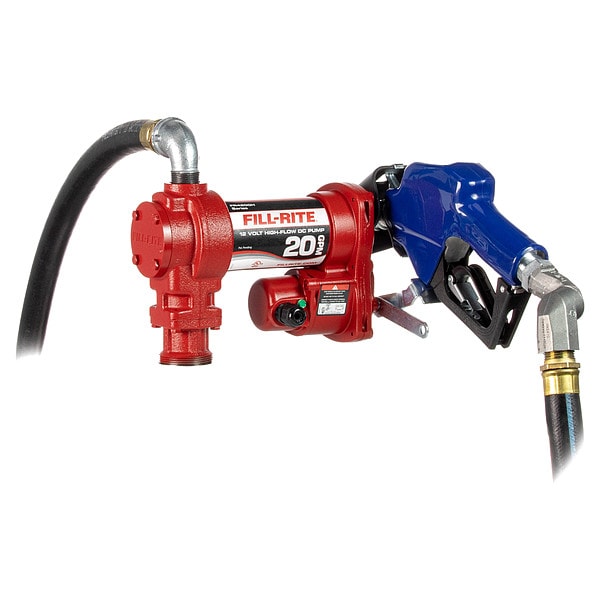

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet

  • Mfr # FR4210HARC

  • Zoro # G4315967

product price:
$
1,046.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Ideal for Use in Harsh Winter Climates
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FR4210HARC
Zoro #
G4315967
UPC #
089404223178
Country of Origin
United States
Voltage
12V DC
Application
Ideal for Use in Harsh Winter Climates
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Carbon
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Nozzle Material
Aluminum
Bypass Valve
Yes
Metered
No
Standards
cULus
Includes
Cable
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Nozzle Type
Automatic
Duty Cycle
30 Minutes On/30 Minutes Off
Bearing Type
Sealed Ball
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Pressure Range
0 psi to 16 psi
Transfer Pump Application
Agriculture, Construction, Farming
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Type
Permanent Magnet
Agency Compliance
cULus
Housing Material - Pumps
Cast Iron
Motor RPM
2,600 RPM
Max. Head - Pumps
37 ft
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Power Source
Corded Electric
Discharge Connection Type
FNPT
Motor HP
1/4 hp
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Rated Voltage
12 V DC
Includes Suction Tube
Yes
Mount Type
Bung
Max. Flow Rate
20 gpm
Max. Outlet Pressure
16 psi
Nozzle Fluid Compatibility
Diesel
Max. Head Pressure
16 psi
Thermal Protection
Yes
Nozzle Operation
Automatic
Pump Connection Type
NPT
Includes Nozzle
Yes
Includes Discharge Hose
Yes
Full Load Amps
28.0 A
Runs Dry
Yes
Pump Connection ID
3/4 in
Includes Follower Plate
No Follower Plate Included
Includes Spout
Yes
Spout Material
Aluminum
Hose Tube Material
Nitrile
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Container Cover Type Included
No Cover Included
Maximum Flow Rate
20 gpm
Variable Speed
No
Maximum Viscosity
39.5 SUS
Pump Technology
Vane
For Container Type
Tank
Suction Tube OD
1 5/16 in
Maximum Head Pressure
16 psi
Maximum Outlet Pressure
16 psi
Motor Speed
2,600 RPM
Hose Cover Material
Neoprene
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Suction Tube ID
1 3/16 in
Hazardous Location Class
Class I/Division 1
Container Type Included
Drum
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Static Protection
Grounding Line Included
Motor Horsepower
1/4 hp
Minimum Fluid Temperature
-40 Degrees F
Full Load Current
28 A
Meter Type Included
No Meter Included
Suction Tube Material
Steel
Maximum Fluid Temperature
150 Degrees F
Includes Bung Adapter
Yes
Pump Connection OD
1 1/8 in
Maximum Head
37 ft
Adapter Connection Standard
MNPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 20 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes
