Shop FILL-RITE

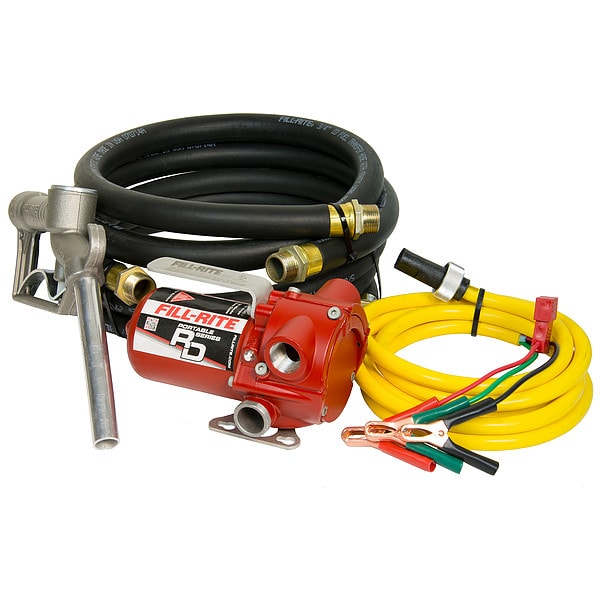

Fuel Transfer Pump, 12V DC, 8 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet

  • Mfr # RD812NH

  • Zoro # G0259080

product price:  $414.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Tractor, Backhoe, Boat, Generator, or Virtually any Other Petroleum Powered Vehicle or Equipment; Ideal for Bunded Tank Applications
HP
1/5
Housing Material
Cast Iron
GPM
8 gpm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RD812NH
Zoro #
G0259080
UPC #
089404224700
Country of Origin
United States

Dimensions

Inlet Size
3/4 in MNPT
Manufacturers Warranty Length
2 yr
Overall Width
5 in
Overall Length
8 in
Hose Dia.
3/4 in
Power Cord Length
10 ft
Outlet Size
3/4 in
Hose Length
8 ft
Cord Length
10 ft
Height Above Container
4 1/8 in
Hose Outside Dia.
5/8 in
For Container Size
35 gal, 55 gal, 100 gal, 275 gal, 500 gal
Hose Inside Diameter
5/8 in
Hose Outside Diameter
15/16 in
Adapter Connection Diameter
3/4 in
Spout Discharge Size
3/4 in
Spout Length
6 in

Details

Voltage
12V DC
Application
Tractor, Backhoe, Boat, Generator, or Virtually any Other Petroleum Powered Vehicle or Equipment; Ideal for Bunded Tank Applications
HP
1/5
Housing Material
Cast Iron
GPM
8 gpm
Seal Material
Buna-N
RPM
3600
Pump Design
Rotary Hinged Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Metered
No
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Bearing Type
Sealed Ball
Nozzle Material
Aluminum
Standards
cULus
Duty Cycle
30 Minutes On/30 Minutes Off
Includes
10 ft Power Cord with Battery Clips
Bypass Valve
Internal
Nozzle Type
Manual
Features
Explosion Proof Motor, Thermal Overload Protection
Pressure Range
0 psi to 16 psi
Adapter Material
Cast Iron
Motor Enclosure
Explosion Proof
Agency Compliance
cULus
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
3 ft
Motor RPM
3,900 RPM
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene
Min. Fluid Temp.
-40 Degrees F
Discharge Connection Type
FNPT
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Power Source
Corded Electric
Explosion Proof
Yes
Mount Type
Foot
Includes Spout
No
Hose Tube Material
Nitrile
Variable Speed
No
Food Grade
No
Diesel Exhaust Fluid Compatible
No
Includes Nozzle
Yes
Rated Voltage
12 V DC
Nozzle Fluid Compatibility
Diesel
Hose Cover Material
Neoprene
Runs Dry
Yes
Max. Fluid Temp.
150 Degrees F
Nozzle Operation
Manual
Max. Outlet Pressure
16 psi
Motor HP
1/6 hp
Adapter Connection Type
FNPT
Includes Discharge Hose
Yes
Spout Material
Aluminum
Includes Bung Adapter
No
Max. Flow Rate
8 gpm
Includes Suction Tube
Yes
Thermal Protection
Yes
Max. Head Pressure
16 psi
Full Load Amps
14.0 A
Full Load Current
14 A
Maximum Outlet Pressure
16 psi
Maximum Head
3 ft
Includes Follower Plate
No Follower Plate Included
For Container Type
Tank
Pump Connection OD
1 3/8 in
Adapter Connection Standard
FNPT
Motor Horsepower
1/6 hp
Maximum Fluid Temperature
150 Degrees F
Pump Technology
Vane
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Static Protection
Grounding Line Included
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Pump Connection ID
1 in
Hazardous Location Class
Class I/Division 1
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene
Maximum Viscosity
50 SUS
Minimum Fluid Temperature
-40 Degrees F
Container Type Included
Drum
Maximum Head Pressure
16 psi
Motor Speed
3,900 RPM
Container Cover Type Included
No Cover Included
Meter Type Included
No Meter Included
Maximum Flow Rate
8 gpm

Description

The FILL-RITE RD812NH Fuel Transfer Pump is a durable tool you can count on to handle biodiesel up to B20, diesel, E15, gasoline and kerosene. The pump has an explosion proof motor with thermal overload protection. With a 3/4" MNPT inlet size and 12V DC voltage, the fuel transfer pump is compatible with most fuels. The rotary hinged vane design allows for ease of priming. It also features a cast iron housing that protects the inner components from corrosion. When it comes to transferring liquids, this Fill Rite Fuel Transfer Pump will get the job done right every time.

Restrictions

Hazardous material
