  9. Fuel Transfer Pump, 12V DC, 8 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet

This item is Discontinued.

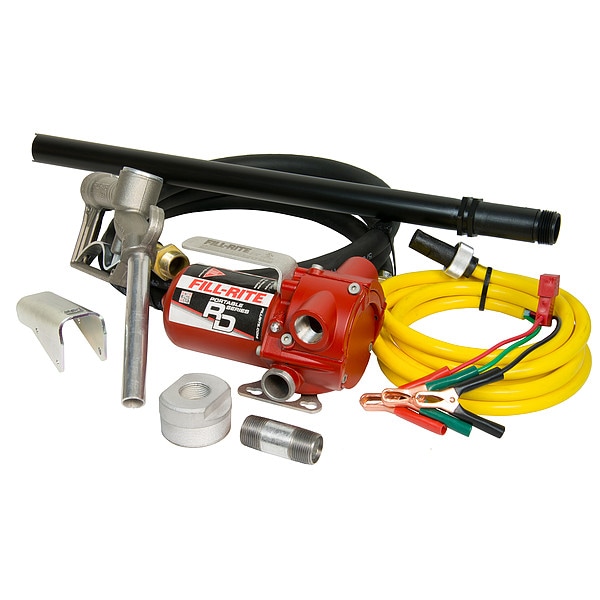

Fill-Rite Fuel Transfer Pump, 12V DC, 8 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet RD812NP

Fuel Transfer Pump, 12V DC, 8 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet (Discontinued)

  • Mfr # RD812NP
  • Zoro # G0259065
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RD812NP
Zoro #
G0259065
UPC #
089404224694
Country of Origin
United States

Dimensions

Inlet Size
3/4 in MNPT
Hose Length
8 ft
Outlet Size
3/4 in
Overall Length
8 in
Power Cord Length
10 ft
Manufacturers Warranty Length
2 yr
Suction Tube Length
40 in
Hose Dia.
3/4 in
Overall Width
5 in
Cord Length
10 ft
Hose Outside Dia.
5/8 in
For Container Size
100 gal

Details

Voltage
12V DC
Application
Tractor, Backhoe, Boat, Generator, or Virtually any Other Petroleum Powered Vehicle or Equipment; Ideal for Bunded Tank Applications
HP
1/5
Housing Material
Cast Iron
GPM
8 gpm
Seal Material
Buna-N
RPM
3600
Pump Design
Rotary Hinged Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
50 SUS
Item
Fuel Transfer Pump
Standards
cUL, UL
Features
Explosion Proof Motor, Thermal Overload Protection
Bypass Valve
Internal
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Nozzle Material
Aluminum
Nozzle Type
Manual
Bearing Type
Sealed Ball
Includes
Cable, Discharge Hose, Nozzle
Pressure Range
0 psi to 16 psi
Metered
No
Duty Cycle
30 Minutes On/30 Minutes Off
Agency Compliance
cULus
Motor Type
Permanent Magnet
Motor Enclosure
Explosion Proof
Motor RPM
3,900 RPM
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
3 ft
Motor HP
1/6 hp
Max. Flow Rate
8 gpm
Includes Suction Tube
Yes
Includes Nozzle
Yes
Mount Type
Bung
Compatible Chemicals
Biodiesel, Diesel, E15, Gasoline, Kerosene
Nozzle Fluid Compatibility
Diesel
Includes Discharge Hose
Yes
Max. Head Pressure
16 psi
Nozzle Operation
Manual
For Media Type
Biodiesel, Diesel, E15, Gasoline, Kerosene
Max. Outlet Pressure
16 psi
Full Load Amps
14.0 A
Explosion Proof
Yes
Rated Voltage
12V DC
Power Source
Electric

Description

Fuel Transfer Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, Rated Voltage 12 V DC, Hose Length 8 ft, Suction Tube Length 40 in, Cord Length 10 ft, Nozzle Operation Manual, Power Source Corded Electric, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, E15, Gasoline, Kerosene, Features Explosion Proof Motor, Thermal Overload Protection, Includes Nozzle Yes, Nozzle Material Aluminum

Restrictions

Hazardous material
