  9. Mechanical Flowmeter, 4 Digit Mechanical Fuel Transfer Meter, Aluminum, 50 PSI, 1 in FNPT, FNPT
Shop All Flowmeters
Fill-Rite

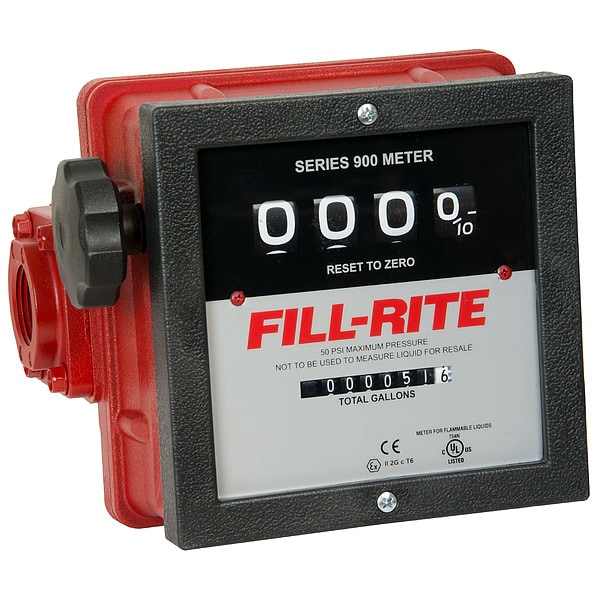

Mechanical Flowmeter, 4 Digit Mechanical Fuel Transfer Meter, Aluminum, 50 PSI, 1 in FNPT, FNPT

product price: $319.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Aluminum
  • For Pipe Size 1 in
  • Connection Size 1 in
  • Connection Type FNPT
  • Max. Pressure 50 psi
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 901C
  • Zoro # G6155292
  • UPC #
    089404080016
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Width (In.) 6-1/4"
Height (In.) 5-1/2
Height 5 1/2 in
Length (In.) 9-1/4"
Length 9 1/4 in
Connection Size (In.) 1 FNPT
Width 6 1/4 in
Overall Height 5.5 in
Overall Length 5.5 in
Overall Width 6.3 in
Manufacturer Warranty Length 2 yr

Details

Item Mechanical Flowmeter
Housing Material Aluminum
Connection Type FNPT
Max. Pressure 50 psi
Wetted Materials Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity 50 SUS
Flow Range 6 to 40 gpm
Fluid Temp. Range -40 Degrees to 140 Degrees F
Max. Pressure (PSI) 50
Flow Range (GPM) 6 to 40 gpm
Resetable Cumulative Totalizer 1,000 gal
GPM Max. 40 gpm
Seal Material Buna-N, Viton
Shaft Material Stainless Steel
Display Type Mechanical
Output Type Standard Frequency Pulse
Standards CE Certified, cULus Listed
For Use With 1 In. Pump
Product Type 4-Digit Mechanical Fuel Transfer Meter
Media Temperature - Minimum -40 Degrees F
Flow Rate - Minimum 6 gpm
Accuracy +/-2%
Rotor Material PPS
Includes Pressure Gauge No
Includes Totalizer Yes
Mounting Orientation Universal
Pulse Rate 10 pulses/gal
Media Temperature - Maximum 140 Degrees F
Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Includes Flow Rate Adjustment Knob Yes
Unit Of Measure Gallons
Flowmeter Type Paddlewheel
Flow Rate - Maximum 40 gpm
Wetted Material Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Operating Pressure - Maximum 50 psi
Viscosity - Maximum 50 SUS
O-Ring Material Buna-N

Description

Mechanical Flowmeter, Product Type 4-Digit Mechanical Fuel Transfer Meter, Flowmeter Type Paddlewheel, Accuracy +/-2 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N, Seal Material Buna-N, Viton

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
