  9. Meter, 1-1/2 FNPT, 6-40 gpm
Shop All Flowmeters
Fill-Rite

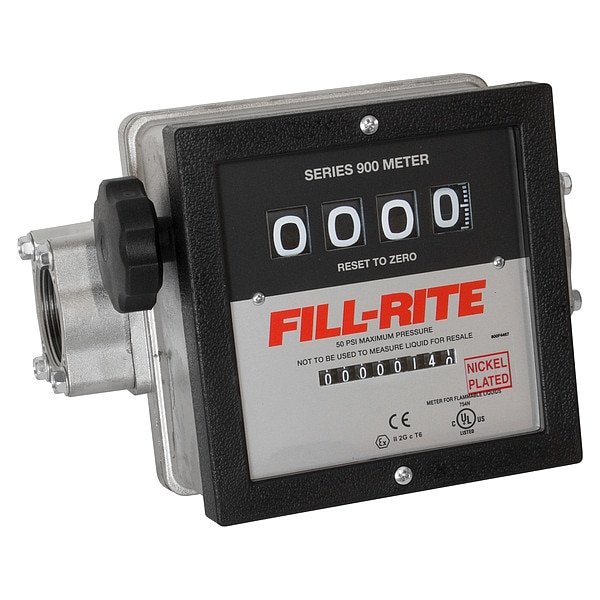

Meter, 1-1/2 FNPT, 6-40 gpm

product price: $389.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Liquid
  • Housing Material Aluminum
  • For Pipe Size 1 in
  • Connection Size 1 1/2 in
  • Connection Type FNPT
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 901CN1.5
  • Zoro # G3057065
  • UPC #
    089404080122
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 1/2 in
Width (In.) 6-1/4"
Connection Size (In.) 1-1/2 FNPT
Height (In.) 5-1/2
Height 5 1/2 in
Length 9 1/4 in
Manufacturers Warranty Length 2 yr
Length (In.) 9-1/4"
Width 6 1/4 in
Overall Width 6.3 in
Overall Length 5.5 in
Overall Height 5.5 in
Manufacturer Warranty Length 2 yr

Details

Item Mechanical Flowmeter
Type Liquid
Housing Material Aluminum
Connection Type FNPT
Max. Pressure 50 psi
Max. Viscosity 50 SUS
Wetted Materials Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Flow Range 6 to 40 gpm
Fluid Temp. Range -40 Degrees to 140 Degrees F
Flow Range (LPM) 23 to 151
Accuracy (%) +/-2
Shaft Material Stainless Steel
Display Mechanical
Seal Material Buna-N, Viton
Resetable Cumulative Totalizer 1,000 gal
Max. Viscosity (SSU) 50
Flow Range (GPM) 6 to 40
Master Totalizer 99.9 gal
Standards CE Certified, cULus Listed
GPM Max. 40 gpm
Thread NPT
Max. Pressure (PSI) 50
Max. Temp. (F) 150
Agency Compliance UL Listed
Chamber Material Polyester
Temp. 150 Degrees F
Application B20, Diesel, E15, Gasoline, Kerosene, Non-Potable Water
Output Type Standard Frequency Pulse
Display Type Mechanical
Product Type 4-Digit Mechanical Fuel Transfer Meter
Flow Rate - Maximum 40 gpm
O-Ring Material Buna-N
Flow Rate - Minimum 6 gpm
Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Media Temperature - Minimum -40 Degrees F
Pulse Rate 10 pulses/gal
Unit Of Measure Gallons
Includes Totalizer Yes
Viscosity - Maximum 50 SUS
Includes Flow Rate Adjustment Knob Yes
Operating Pressure - Maximum 50 psi
Rotor Material PPS
Includes Pressure Gauge No
Accuracy +/-2%
Mounting Orientation Universal
Media Temperature - Maximum 140 Degrees F
Flowmeter Type Paddlewheel
Wetted Material Acetal, Gold, Nickle Plated Aluminum, Stainless Steel

Description

Mechanical Flowmeter, Product Type 4-Digit Mechanical Fuel Transfer Meter, Flowmeter Type Paddlewheel, Accuracy +/-2 Percent, Connection Size 1 1/2 in, Connection Type FNPT, Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N

Restrictions

  • Hazardous material
