Shop GPI

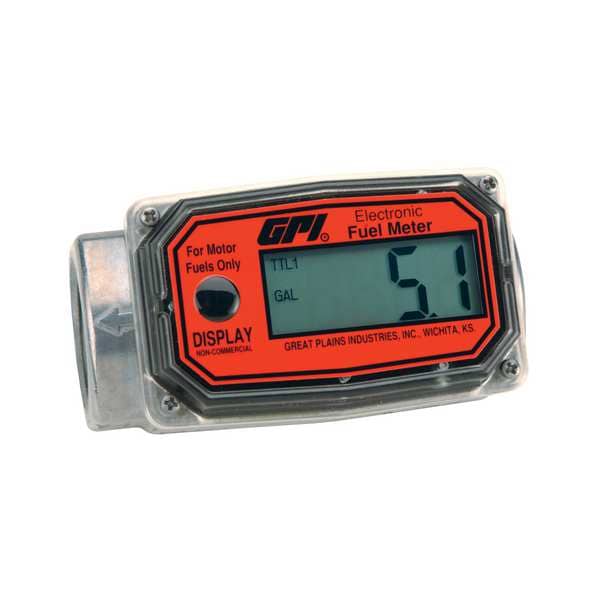

Flowmeter, Turbine, For Fuel, 1 in. FNPT

  • Mfr # 01A31GM

  • Zoro # G3457474

product price:
$
199.99
/ea
Free Shipping & Returns

Key Features

Type
Turbine
Housing Material
Aluminum
For Pipe Size
3/4 x 1 1/2 in
Flow Material
Fuels, Lubricants, Petroleum Products
Connection Size
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
01A31GM
Zoro #
G3457474
UPC #
031401113365
Country of Origin
United States

Dimensions

For Pipe Size
3/4 x 1 1/2 in
Connection Size
1 in
Fitting Size (In.)
1
Manufacturer Warranty Length
2 yr
Overall Length
4 in
Overall Height
2.5 in
Overall Width
2 in
Wire Rope Length
4 in
Length
4 in

Details

Item
Electronic Flowmeter
Type
Turbine
Housing Material
Aluminum
Flow Material
Fuels, Lubricants, Petroleum Products
Connection Type
FNPT
Max. Pressure
300 psi
Wetted Materials
316 Stainless Steel, Aluminum, Ceramic, Nylon, Tungsten Carbide
Max. Viscosity
40 SUS
Flow Range
3 to 30 gpm
Fluid Temp. Range
14 Degrees to 130 Degrees F
Fitting Type
FNPT
Fluid Temp. Range (Deg. F)
14 to 130
Rotor Type
Nylon
Ambient Temperature
14 to 130 Degrees F
Strainer
55 Mesh
Power Requirement
AAA Batteries (2)
Includes
2 AAA Batteries, 3/4" Reducer Bushings
Pressure Rating (PSI)
300
Sensor Type
Magnetic
Fluid Temp. Range (Deg. C)
0 to 60
Repeatability
0.50%
Agency Compliance
CE
Accuracy (%)
+/-5
Display Type
Digital
Display Units
gal
Standards
FM Approved to U.S. and Canadian Standards as Intrinsically Safe for Class 1, Div 1 Groups D
Shaft Material
Tungsten Carbide
Output Type
4-20 mA
Media Temperature - Minimum
14 Degrees F
Compatible Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Viscosity - Maximum
40 SUS
Media Temperature - Maximum
130 Degrees F
Includes Totalizer
Yes
Product Type
Fuel Meter
Accuracy
+/-2.5%
Operating Pressure - Maximum
300 psi
Flow Rate - Maximum
30 gpm
Flowmeter Type
Turbine
O-Ring Material
316 Stainless Steel
Unit Of Measure
Gallons
Mounting Orientation
Universal
Wetted Material
316 Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide
Rotor Material
Nylon
Flow Rate - Minimum
3 gpm

Description

Electronic Flowmeter, Product Type Fuel Meter, Flowmeter Type Turbine, Accuracy +/-2.5 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material B20, Diesel, E15, Gasoline, Kerosene, Media Temperature - Maximum 130 Degrees F, Media Temperature - Minimum 14 Degrees F, Viscosity - Maximum 40 SUS, Housing Material Aluminum, Rotor Material Nylon, O-Ring Material 316 Stainless Steel, Shaft Material Tungsten Carbide
