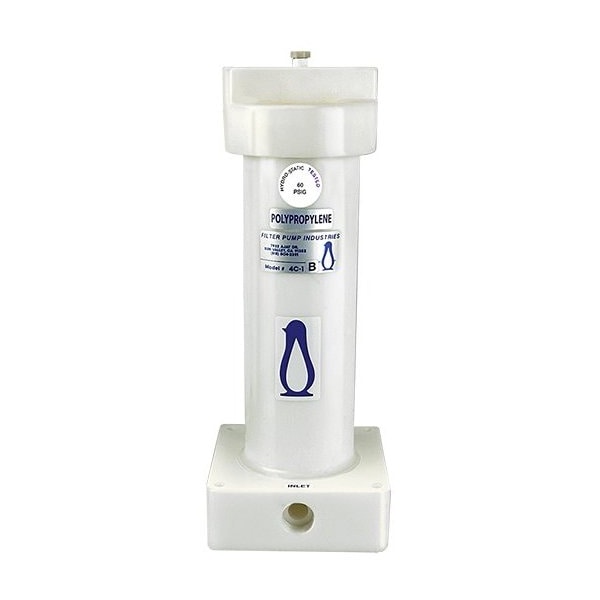

Chemical Filter Chamber, 2.5-5.4 GPM, 1-10in cartridge, Polypropylene/EPDM, 1in NPT, DOE

Penguin Series C, Non-metallic, Filter Cartridge Chamber is designed for particulates removal from both Alkaline and Acidic Aqueous Solutions containing a variety of chemistries. Various materials are available for construction, includingnatural polypropylene, copolymer high-density polypropylene, CPVC, and PVDF that can handle temperatures to 240 degrees farenheit and pressures to100 psi@ambient temperature. Chambers can be used with depth string wound, melt blown, spun polypropylene, or pleated cartridges. Cartridges are Double Open End cartridges DOE for nominal filtration. Filter Chamber must be selected based on chemical compatibility and temperature of fluid being filtered.

• • Filter Housing, Non-metallic
• • Available in CPVC, natural polypropylene, and natural PVDF
• • Compressor rubber ball design provides a 1⁄4" (6.3 mm) cartridge length variance
• • Chamber top is threaded onto the chamber shell via an ACME thread configuration
• • FNPT in lieu of MNPT inlets/outlets are employed to eliminate the breaking of MNPT inlet/outlet nozzles
• • 3C/4C chambers are mounted out-of-tank using the square baseplate or mounted on an extended bracket
• • CE certified
