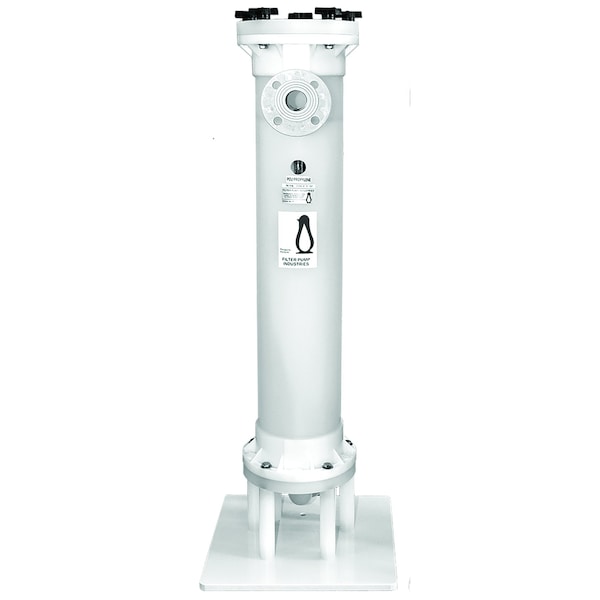

Chemical Filter Chamber, Single Cartridge, 25-40 GPM, 5-20in cartridge, PVDF/FKM, 1.5in NPT, DOE

Penguin Series C, Non-metallic, Filter Cartridge Chamber is designed for particulates removal from both Alkaline and Acidic Aqueous Solutions containing a variety of chemistries. Various materials are available for construction, includingnatural polypropylene, copolymer high-density polypropylene, CPVC, and PVDF that can handle temperatures to 240 degrees farenheit and pressures to100 psi@ambient temperature. Chambers can be used with depth string wound, melt blown, spun polypropylene, or pleated cartridges. Cartridges are Double Open End cartridges DOE for nominal filtration. Filter Chamber must be selected based on chemical compatibility and temperature of fluid being filtered.

• • Filter Housing, Non-metallic
• • Available in CPVC, polypropylene, and PVDF
• • "T" with Gauge Guard, Gauge, and valve included for air bleed
• • Multi-round chambers utilized double labyrinth O-Ring Seals
• • All models have standard NPT threaded inlet/outlet. Flange options available on request.
• • Knob and washer assemblies with 316SS insert for positive lid tightening
