Vertical Centrifugal Chemical Pump, 22.5 gpm max, 1/6 HP, 230V, 1-PH, Poly/FKM, 1in S x 3/4in NPT D
Mfr # P-1/6BV-2
Zoro # G815820838
Key Features
Specifications
Product Information
- MFR #
- P-1/6BV-2
- Zoro #
- G815820838
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1 in FPT
- Outlet Size
- 3/4 in FPT
Details
- HP
- 1/6 hp
- Housing Material
- Polypropylene
- Phase
- 1
- Voltage
- 230 VAC
- Max. GPM @ Head
- 22.5 gpm @ 2 ft 6 in
- Includes
- Vertical P Series pump, Poly/FKM, with 1/6 HP, 230 V motor
- For Use With
- Chemicals including Plating Solutions and other applications such as Etching, Filtering, Waste treatment, Wet Fume Scrubbing, and Transfer/Recirculating of tanks.
- O-ring material
- FKM
- Color
- White
- Connection Type
- NPT
- Max Head
- 17.5 ft
- Capacity
- 22.5 GPM
Description

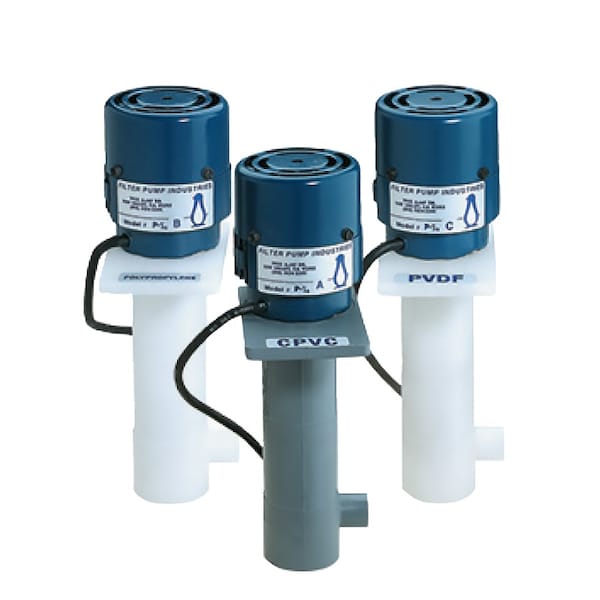

Penguin P Series Vertical centrifugal, immersible, non-metallic pumps are designed to handle a large range of chemicals without difficulty. All wetted parts are constructed of CPVC A, polypropylene B, or PVDF C, depending on Model Number. Series P pumps have an upper working temperature of 180-A/150 B/280 C degrees, respectively, and thus can handle most corrosive, slurries, and abrasive solutions. Series P pumps are easy to install and operate and are virtually maintenance-free. Series P pumps are perfect for Plating Solutions and other applications such as Etching, Filtering, Waste treatment, Wet Fume Scrubbing, and Transfer/Recirculating of tanks.
- • Vertical Pump
- • Available in CPVC, polypropylene, and PVDF
- • Easy to install in or out of tank
- • Minimal amount of tank space, thus saving valuable floor space
- • Resistant to a wide array of acids and bases
- • Self-priming when immersed
- • Corrosion resistant epoxy painted motors
- • CE certified
