  11. 25 Gallon ATV Sprayer, 3 Nozzle, Broadcast Boom

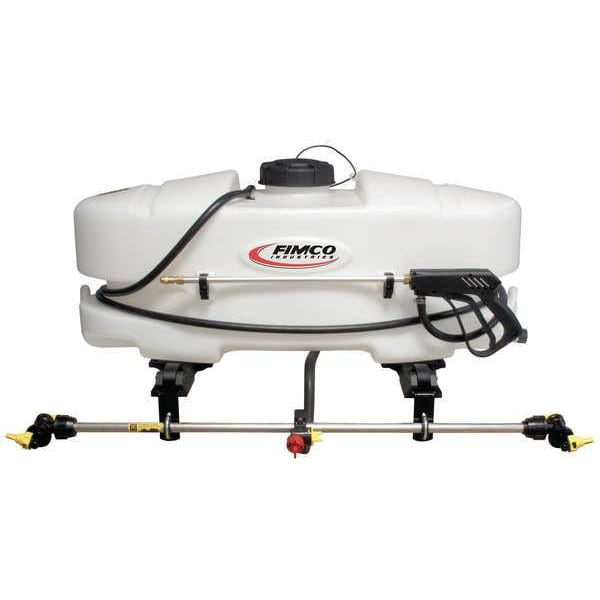

Fimco 25 Gallon ATV Sprayer, 3 Nozzle, Broadcast Boom LG-3025-QR - main

25 Gallon ATV Sprayer, 3 Nozzle, Broadcast Boom

  • Mfr # LG-3025-QR

  • Zoro # G0313647

product price: $570.99
/ea
Free Shipping & Returns

Key Features

Sprayer Tank Capacity
25 gal
Type
ATV
Sprayer Pressure Release
Yes
Tank Material
Polyethylene
Hose Length
15 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LG-3025-QR
Zoro #
G0313647
UPC #
733029110060
Country of Origin
United States

Dimensions

Hose Length
15 ft.
Wand Length
18 in
Fill Opening Size
5 in
Height
16 in
Width
19 in
Length
39 in
Hose Diameter
3/8 in
Overall Length
39 1/4 in
Overall Height
15 1/2 in
Overall Width
17 1/2 in
Boom Width
36 ft

Details

Sprayer Tank Capacity
25 gal
Type
ATV
Sprayer Pressure Release
Yes
Tank Material
Polyethylene
Wand Material
Aluminum
Nozzle Spray Pattern
Adjustable
Max Sprayer Pressure
60 PSI
Item
Sprayer
Spray Distance Horizontal
40 ft
Tank Capacity
25 gal
Pump
Diaphragm
Application
Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering
Hose Material
EPDM Rubber
Drain
3/4 in Drain Bottom End
Flow Rate
4.5 GPM
Spray Distance Vertical
28 ft
Nozzle Type
Adjustable Cone
Includes
12 Volt Pump, Manifold with Pressure Gauge, 8 Foot Lead Wire, Deluxe Adjustable Pistol Grip Spray Wand, 15 Feet of 3/8" Hose, Premium Spray Tips, 3-Nozzle Broadcast Boom, Quick Release Boom Clamps, Durable Poly Tank
Sprayer Nozzle Material
Brass
In Tank Filter
Yes
Features
4.5 GPM High Flo High Performance Pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life Deluxe pistol grip spray wand delivers up to 40 feet of horizontal spray and 28 feet of vertical spray and features an ergonomic polymer handle and precision brass tip. 15 feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles Durable 25 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling Features FIMCOs exclusive quick release mounting system allowing you to quickly remove, change or store your spraying boom Made for these types of applications: weed control, pest control, fungus control, fertilizing, watering Stainless steel 3 nozzle wetboom with broadcast tips delivers 36 feet of total spray coverage with Hypro tips that can be turned on and off independently
Adjustable Nozzle
Yes
Power Source
Vehicle Battery-Powered
Product Type
Vehicle Mounted Sprayer
Basic Power Source
Vehicle Battery-Powered
Voltage
12 V
Nozzle Material
Brass
Tool Weight
35 lb
Sprayer Pressure - Maximum
60 psi
Mount Orientation
Horizontal, Vertical
Vertical Spray Distance - Minimum
1 ft
Horizontal Spray Distance - Minimum
1 ft
Connection Type
Quick-Release
Mount Type
Mounting Bracket
Chemical Compatibility
Fertilizer, Herbicide, Pesticide
Vertical Spray Distance - Maximum
28 ft
Sound Level
20 dBA
Number of Speeds
1
Number of Sprayers
3
Number of Nozzles Included
3
Sprayer Form
Tailgate
Compatible Vehicle Type
ATV
Pressurizing Method
Manual Pump
Mixing System
Mix-in-Tank
Spray Mechanism
Hose-End
Horizontal Spray Distance - Maximum
40 ft

Description

The FIMCO 25 Gallon 3 Nozzle Broadcast ATV Sprayer is built for large area liquid coverage in a compact platform. Best in class of entry level sprayers; the UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. Convert from a Spot Sprayer to an ATV sprayer with the quick release mounting bracket allowing for simple installation or removal of the spray boom. This model 4 wheeler sprayer features the High Flo High Performance 4.5 GPM 12 Volt Pump with inline fuse protection. The Deluxe Pistol Grip Spray Wand with an adjustable spray pattern brass tip distributes up to 40 feet of horizontal spray, 28 feet of vertical spray and comes with 15 feet of 3/8 inch hose. The 3 nozzle boom offers 36 feet of total spray coverage with full coverage drip free Hypro Xtender spray tip nozzles that can be turned on and off independently for increased flexibility. Our FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This ATV sprayer offers the versatility and efficiency needed to spray tight spaces or larger areas and allows easy, accurate and consistent liquid application of lawn care products. The best ATV sprayer for controlling weeds, insects and diseases on lawns, ball fields, parks, acreages and small pastures.
