Shop FINISH THOMPSON

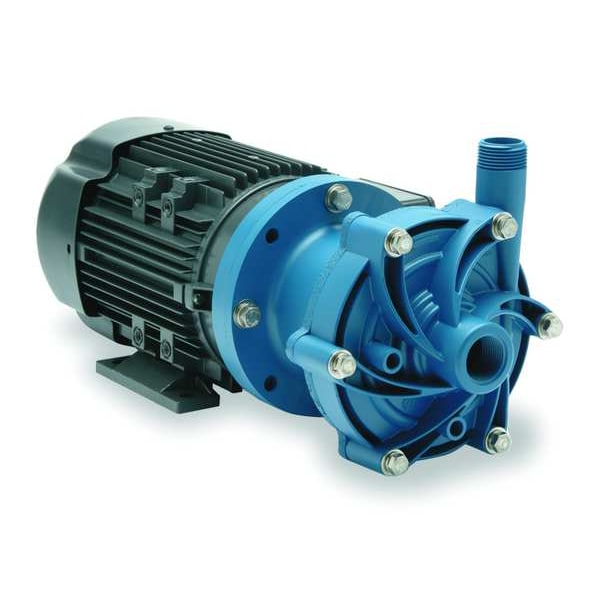

1/3 HP PP Magnetic Drive Pump 115/208-230V 1" FNPT

  • Mfr # DB6P-M224

  • Zoro # G2145351

product price:  $947.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Voltage
115/208-230
Inlet
1 in FNPT
Outlet
1 in MNPT
Max. Head
33 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DB6P-M224
Zoro #
G2145351
UPC #
-
Country of Origin
United States

Dimensions

Length
17 13/32 in
Width
7 1/2 in
Height
8 19/64 in
Overall Height
8.3 in
Discharge Pipe Size
1 in
Intake Pipe Size
1 in
Overall Length
17.4 in
Manufacturers Warranty Length
5 yr
Overall Width
7.5 in
Impeller Diameter
3 in
Inlet Diameter
1 in
Discharge Diameter
1 in
Wire Rope Length
17.4 in

Details

Item
Magnetic Drive Pump
HP
1/3 hp
Voltage
115/208-230
Inlet
1 in FNPT
Outlet
1 in MNPT
Max. Head
33 ft
Operating Pressure
14.2 psi
Housing Material
Polypropylene
Bearing Type
Radial, Thrust
Full Load Amps
5.70/2.70-2.85 A
Series
DB6
Mounting
Horizontal
Max. Viscosity
100 cps
GPM of Water @ 6 Ft. of Head
39
GPM of Water @ 18 Ft. of Head
31
Motor Type
Induction
Impeller Material
Polypropylene
Design
Centrifugal
Max. Specific Gravity
1.2
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 9 Ft. of Head
37
GPM of Water @ 15 Ft. of Head
34
Gasket Material
FKM
GPM of Water @ 3 Ft. of Head
39
Application
Acids, Caustics, DI-Water, Plating Solutions
GPM of Water @ 24 Ft. of Head
23
Media Temperature (Maximum)
180 Degrees F
Specific Gravity (Maximum)
1.8
Discharge Pipe Type
MNPT
Flow Rate @ 3 ft of Head (Maximum)
39 gpm
Nameplate Voltage
115/208-230V AC
Flow Rate @ 18 ft of Head (Maximum)
31 gpm
Intake Pipe Type
FNPT
Motor Mounting Type
Horizontal
Chemical Compatibility
Operating Pressure (Maximum)
14.2 psi
Mounting Orientation
Horizontal
Phase
Single
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 6 ft of Head (Maximum)
39 gpm
Priming
Manual
Viscosity (Maximum)
150 cps
Flow Rate @ 15 ft of Head (Maximum)
34 gpm
Horsepower (Maximum)
1/3 hp
Flow Rate @ 9 ft of Head (Maximum)
37 gpm
Flow Rate @ 24 ft of Head (Maximum)
23 gpm
Feet of Head (Maximum)
32 ft
Full Load Current
5.2/2.88-2.6
Pump Mounting Style
Base-Mounted, Foot-Mounted
Motor Design
Capacitor-Start/Run
NPSHr
8 ft
Number of Stages
1
Best Efficiency Flow
22 gpm
Media Temperature - Maximum
180 Degrees F
Ambient Temperature - Minimum
32 Degrees F
Pumping Application
Chemical Transfer, Liquid Transfer
Shut Off Pressure - Maximum
13.8 psi
Shaft Seal Type
Sealless
Hazardous Location Class
Not Rated
Discharge Rotation Increments
0 Degrees
Drive Coupling Type
Magnetic Coupling
Best Efficiency Head
25 ft
Pump Design
End Suction
Ambient Temperature - Maximum
180 Degrees F
Case Pressure - Maximum
80 psi
Flow Rate (Maximum)
39 gpm
Pump Drive Configuration
Close-Coupled
Media Temperature - Minimum
35 Degrees F

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 33 ft, Flow Rate @ 3 ft of Head (Maximum) 39 gpm, Flow Rate @ 6 ft of Head (Maximum) 39 gpm, Flow Rate @ 9 ft of Head (Maximum) 37 gpm, Flow Rate @ 15 ft of Head (Maximum) 34 gpm, Flow Rate @ 24 ft of Head (Maximum) 23 gpm, Flow Rate @ 50 ft of Head (Maximum) Not Applicable, Horsepower (Maximum) 1/3 hp, Intake Pipe Size 1 in, Intake Pipe Type FNPT

Restrictions

Hazardous material
