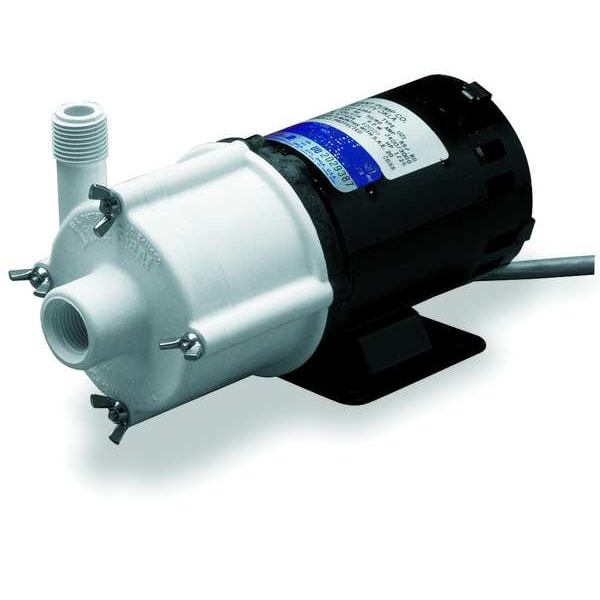

1/25 HP Polypropylene Magnetic Drive Pump 115V 1/2" FPT

Mfr # 580503
Zoro # G0247712

210.99

Free Shipping & Returns

Key Features

1/25 hp

Voltage

115

Inlet

1/2 in FPT

Outlet

1/2 in MPT

Max. Head

14.6 ft

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 580503
Zoro #: G0247712
UPC #: 010121809109
Country of Origin: Mexico

Dimensions

Length: 8.9 in
Width: 4 in
Cord Length: 6 ft
Height: 5 in
Overall Width: 3.9 in
Overall Length: 8.9 in
Overall Height: 4.9 in
Intake Pipe Size: 1/2 in
Manufacturers Warranty Length: 1 yr
Discharge Pipe Size: 1/2 in
Impeller Diameter: 1 67/250 in
Inlet Diameter: 1/2 in
Motor Frame Size: 3.3
Discharge Diameter: 1/2 in
Wire Rope Length: 8.9 in

Details

Item: Magnetic Drive Pump
HP: 1/25 hp
Voltage: 115
Inlet: 1/2 in FPT
Outlet: 1/2 in MPT
Max. Head: 14.6 ft
Operating Pressure: 6.3 psi
Housing Material: Glass-Filled Polypropylene
Temp. @ 30 psig: 85 Degrees F
Full Load Amps: 1.43 A
GPM of Water @ 6 Ft. of Head: 6.8 gpm
Temp. @ 20 psig: 140 Degrees F
GPM of Water @ 9 Ft. of Head: 5.5 gpm
Design: Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Mounting: Horizontal
Application: For Mild Chemicals at Moderate Temperature, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
Temp. @ 0 psig: 150 Degrees F
Temp. @ 10 psig: 140 Degrees F
Impeller Material: Polypropylene
Motor Enclosure: Open Air Over
Bearing Type: Thrust
Max. Viscosity: 100 SSU
Max. Specific Gravity: 1.1
Gasket Material: Buna-N
Cord Type: 3-conductor SJP
GPM of Water @ 3 Ft. of Head: 7.7 gpm
Series: MD-SC
Feet of Head (Maximum): 14.6 ft
Flow Rate @ 9 ft of Head (Maximum): 5.5 gpm
Frequency: 60 Hz
Intake Pipe Type: FNPT
Specific Gravity (Maximum): 1.1
Operating Pressure (Maximum): 6.3 psi
Motor Mounting Type: Horizontal
Phase: Single
Discharge Pipe Type: NPT
Horsepower (Maximum): 1/25 hp
Full Load Current: 1.43 A
Nameplate Voltage: 115V AC
Flow Rate @ 6 ft of Head (Maximum): 6.8 gpm
Viscosity (Maximum): 100 SUS
Media Temperature (Maximum): 150 Degrees F
Flow Rate @ 3 ft of Head (Maximum): 7.8 gpm
Ambient Temperature (Maximum): 77 Degrees F
Drive Coupling Type: Magnetic Coupling
Best Efficiency Head: 8 ft
Hazardous Location Class: Not Rated
Inlet Standard: FNPT
Flow Rate (Maximum): 8.5 gpm
Best Efficiency Flow: 6 gpm
Media Temperature - Maximum: 150 Degrees F
Pump Mounting Style: Base-Mounted
Number of Stages: 1
Ambient Temperature - Minimum: 32 Degrees F
Chemical Compatibility: Acetaldehyde,Acetic Anhydride,Acid,Alcohol,Aluminum Chloride,Aluminum Chloride 20%,Aluminum Hydroxide,Aluminum Potassium Sulfate,Aluminum Sulfate,Ammonia,Ammonium Bifluoride,Ammonium Chloride,Ammonium Hydroxide,Ammonium Nitrate,Ammonium Persulfate,Ammonium Phosphate,Ammonium Sulfate,Amyl Alcohol,Wine,Anhydrous,Antifreeze,Antimony Plating,Arsenic Acid,Asphalt,Barium Carbonate,Barium Chloride,Barium Hydroxide,Barium Sulfate,Barium Sulfide,Beet Sugar Liquids,Borax,Boric Acid,Calcium Bisulfide,Calcium Bisulfite,Calcium Carbonate,Calcium Chloride,Calcium Hydroxide,Calcium Hypochlorite,Calcium Sulfate,Calgon,Carbon Monoxide,Carbonated Water,Carbonic Acid,Catsup,Chocolate Syrup,Citric Oil,Coffee,Copper Pyrophosphate,Copper Chloride,Copper Cyanide,Copper Nitrate,Copper Sulfate,Copper Sulfate 5%,Cream,Detergents,Dibasic,Distilled,Magnesium Sulfate,Ethylene Glycol,Ferric Nitrate,Ferric Sulfate,Ferrous Chloride,Ferrous Sulfate,Formaldehyde 40%,Fruit Juice,Fuel Oil,Gelatin,Glucose,Glycerin,Gold Plating,Honey,Indium Sulfamate Plating,Iron Plating,Lactic Acid,Lard,Lead Acetate,Lubricants,Magnesium Carbonate,Magnesium Chloride,Magnesium Hydroxide,Magnesium Nitrate,Mayonnaise,Mercuric Chloride,Mercuric Cyanide,Mercury,Milk,Mine,Molasses,Mustard,Naphtha,Nickel Chloride,Nickel Plating,Nickel Sulfate,Nitrate,Clove Oil,Coconut Oil,Cod Liver Oil,Corn Oil,Cotton Seed Oil,Diesel Fuel,Linseed Oil,Mineral Oil,Olive Oil,Orange Oil,Rosin Oil,Silicone Oil,Soybean Oil,Oxalic Acid,Paraffin,Plating Solutions,Potash,Potassium Bicarbonate,Potassium Bromide,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Cyanide Solutions,Potassium Dichromate,Potassium Nitrate,Potassium Permanganate,Potassium Sulfate,Rhodium Plating,Rosin,Rum,Rust Inhibitors,Salad Dressing,Salt,Sea Water,Shellac,Silicone,Silver Plating,Soap,Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chloride,Sodium Chromate,Sodium Cyanide,Sodium Perborate,Sodium Silicate,Sodium Sulfate,Sodium Thiosulphate,Stannic Chloride,Sugar,Syrup,Tomato Juice,Tribasic,Urine,Varnish,Water,Whiskey,Pulp Mill,Zinc Chloride,Zinc Plating,Zinc Sulfate
Ambient Temperature - Maximum: 77 Degrees F
Case Pressure - Maximum: 6.3 psi
Pump Drive Configuration: Close-Coupled
Pumping Application: Chemical Transfer
Media Temperature - Minimum: 32 Degrees F
Shaft Seal Type: Sealless
Shut Off Pressure - Maximum: 6.3 psi
Priming: Manual
Mounting Orientation: Horizontal
Pump Design: End Suction

Description

Magnetic Drive Pump
