  9. Drum Pump, 1/2 HP, 3/4 In Outlet, 49In OAL

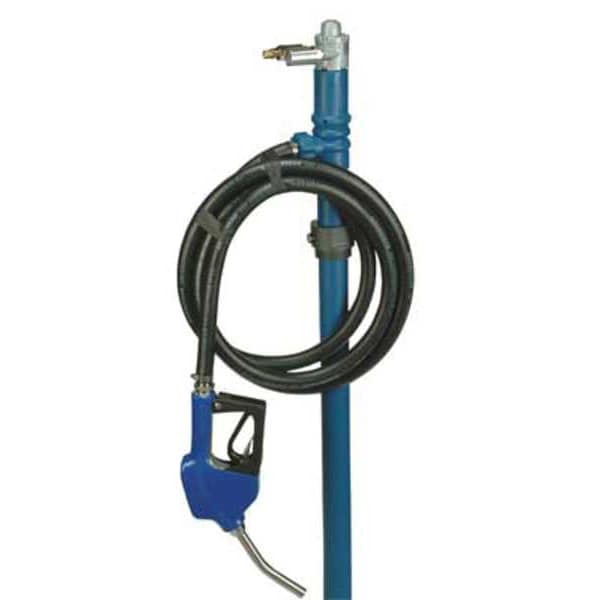

Finish Thompson Drum Pump, 1/2 HP, 3/4 In Outlet, 49In OAL PFM-40 & M6 DEF Kit - main

Drum Pump, 1/2 HP, 3/4 In Outlet, 49In OAL

  • Mfr # PFM-40 & M6 DEF Kit

  • Zoro # G1915225

product price: $1,105.99
/ea
Free Shipping & Returns

Key Features

For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, DEF, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
For Container Size
55 gal
Max. Flow Rate
22 gpm
Max. Viscosity
300 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PFM-40 & M6 DEF Kit
Zoro #
G1915225
UPC #
-
Country of Origin
United States

Dimensions

For Container Size
55 gal
Manufacturers Warranty Length
1 yr.
Inlet Size
2"
Suction Tube Length
40 in
Hose Length
96 in
Air Inlet Size
1/4 in MNPT
Hose Outside Dia.
1 in
Overall Length
48 1/8 in
Height Above Container
8 1/16 in
Air Outlet Size
1/4 in
Bung Connection Dia.
2 in
Overall Height
40 in

Details

Item
Air Operated Drum Pump
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, DEF, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Max. Flow Rate
22 gpm
Max. Viscosity
300 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
316 Stainless Steel, EPDM, FKM, Polypropylene, PTFE, PVDF
Includes Suction Tube
Yes
For Use With
Diesel Exhaust Fluid and Other Compatible Chemicals
Hose Tube Material
EPDM
Discharge Tube Outlet ID
3/4 in
Discharge Tube Outlet OD
1 1/8 in
Includes
Clamp, Hose, Motor, Pump, S.S Automatic Nozzle, Sealed Adapter
Max. Flow GPM
22 gpm
Max. Air Inlet (PSI)
16
Metered
No
Agency Compliance
ISO 22241-3 (Purity Standard)
Adapter Type
2" Buttress Thread
Discharge Tubing Material
EPDM
Motor Type
Air
Self-Priming
Yes
Adapter Material
PVC
Thermal Protection
No
Seal Material
FKM
Motor RPM
9,000 RPM
Suction Tube Material
Polypropylene
Housing Material - Pumps
Polypropylene
Series
PF
Variable Speed
Yes
Noise Level
78 db
Pump Connection OD
2 in
Max. Fluid Temp.
160 Degrees F
Motor HP
1/2 hp
Nozzle Material
316 Stainless Steel, FKM, PP
Power Source
Air
Includes Nozzle
Yes
Max. Head Pressure
16.5 psi
Discharge Connection Type
Hose Barb
Food Grade
No
Includes Bung Adapter
Yes
Min. Air Pressure
80 psi
Includes Discharge Hose
Yes
Runs Dry
No
Suction Tube ID
2 in
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Nozzle Operation
Automatic
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, DEF, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)
Duty Cycle
Continuous
Pump Connection ID
2 in
Includes Spout
No
For Container Type
Drum
Max. Air Pressure
80 psi
Suction Tube OD
2 in
Max. Oil Flow
17 gpm
Explosion Proof
Yes
Adapter Connection Type
Buttress
Gear Lube
NT
Max. Head - Pumps
38 ft
Min. Operating Temp.
35 Degrees F

Description

Air Drum Pump, Max. Air Pressure 80 psi, Spout Connection Size 1 in, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 48 1/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Spout Length 1 in, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Bung Connection Dia. 2 in, Air Consumption 32 cfm, Hose Length 96 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Max. Viscosity 300 cps, Adapter Connection Type Buttress

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
