MFR # DPFS025
Zoro # G2685024
UPC # 638845478366
Country of Origin United States

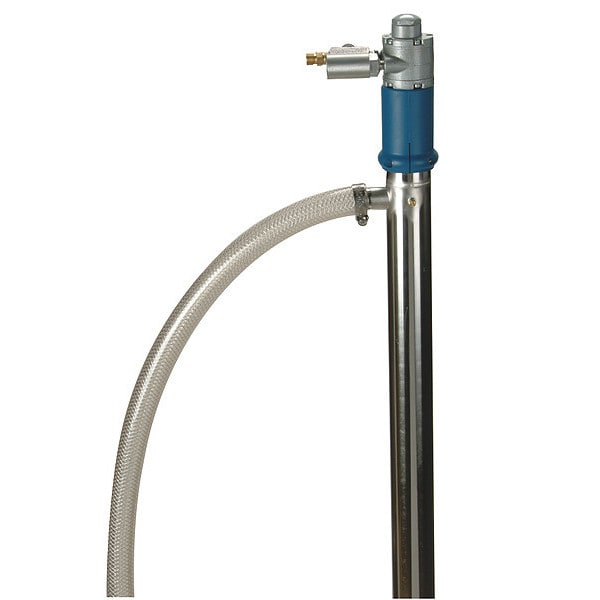

Item Air Drum Pump For Media Type
See full list of For Media Type Acetic Acid,Ammonium Hydroxide,Antifreeze,Biodiesel,Calcium Chloride,Chromic Acid,Citric Acid,Cyclohexane,Diesel Fuel,E85,Ethanol,Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formic Acid,Gasoline,Glycerin,Heptane,Hexane,Hydraulic Oil,Hydrazine,Isopropanol,Kerosene,Ketones,Lacquer Thinners,Methanol,Nitric Acid,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Stoddard Solvent,Toluene,Trichlorethylene,Water,Xylene
Max. Flow Rate 22 gpm
Max. Viscosity 330 cps
Diesel Exhaust Fluid Compatible No
Wetted Materials PTFE, Stainless Steel, Tefzel, Viton
Includes Suction Tube Yes
For Use With Chemicals
Discharge Tube Outlet ID 1 in
Hose Tube Material PVC
Discharge Tube Outlet OD 1 1/4 in
Max. Air Inlet (PSI) 16
Motor Type Air
Metered No
Discharge Tubing Material PVC
Includes Clamp, Hose, Motor
Self-Priming Yes
Suction Tube Material 316 Stainless Steel
Max. Flow GPM 22
Motor RPM 9,000 RPM
Seal Material FKM
Thermal Protection No
Pump Connection ID 2 in
Min. Air Pressure 80 psi
Food Grade No
For Container Type Drum
Duty Cycle Continuous
Series PF
Includes Spout Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid (Glacial),Acetic Acid 20%,Acetic Acid 80%,Acetone,Ammonia (Liquids),Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze (Coolant),Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Citric Acid 50%,Cyclohexane,Deionized Water,Diesel Fuel,E85,Ethyl (Ethanol),Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Gasoline,Glycerin,Heptane,Hexane,Hydraulic Oils (Petroleum),Hydraulic Oils (Synthetic),Hydrazine,Isopropyl (Isopropanol),Kerosene,Lacquer Thinners,Methyl (Methanol),Methyl Ethyl Ketone (MEK),Naphtha,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Paint Thinner,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%),Stoddard Solvent (Mineral Spirits),Toluene,Trichlorethylene (50%),Turpentine,Windshield Washer Fluid,Xylene
Not Recommended Chemicals Bleach, DEF, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 37%, Hydrofluoric Acid 100%, Hydrofluoric Acid 20%, Hydrofluoric Acid 75%, Sulfuric Acid 10% to 75%, Sulfuric Acid 75% to 100%, Sulfuric Acid up to 10%
Runs Dry No
Includes Discharge Hose Yes
Power Source Air
Motor HP 1/2 hp
Pump Connection OD 2 in
Max. Air Pressure 80 psi
Noise Level 78 dB
Max. Head Pressure 16.5 psi
Housing Material - Pumps Stainless Steel
Discharge Connection Type Hose Barb
Includes Nozzle No
Variable Speed Yes
Suction Tube OD 2 in
Max. Oil Flow 17 gpm
Includes Bung Adapter No
Max. Fluid Temp. 220 Degrees F
Suction Tube ID 2 in
Gear Lube NT
Explosion Proof Yes
Max. Head - Pumps 38 ft
Min. Operating Temp. -20 Degrees F
Mounting Bracket Included No Mounting Bracket Included
Maximum Viscosity 330 cps
Maximum Air Pressure 80 psi
Minimum Fluid Temperature -20 Degrees F
Motor Horsepower 1/2 hp
Maximum Head 38 ft
Pump Technology Centrifugal
Static Protection Not Groundable
Hazardous Location Class Not Rated
Air Inlet Connection Type MNPT
Maximum Fluid Temperature 220 Degrees F
Meter Type Included No Meter Included
Includes Follower Plate No Follower Plate Included
Standards CE Chemical Compatibility
See full list of Chemical Compatibility Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze Coolant,Calcium Chloride,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fertilizers,Formic Acid,Fresh Water,Fungicides,Herbicides,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Phosphoric Acid 40% Solution,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Sulfuric Acid 10% to 75%,Sulfuric Acid up to 10%
Air Consumption 32 cfm
Maximum Oil Flow 17 gpm
Maximum Flow Rate 22 gpm
Motor Speed 9,000 RPM
Spout Material Stainless Steel
Hose Cover Material PVC
Maximum Outlet Pressure 16.5 psi
Container Cover Type Included No Cover Included
Wetted Material ETFE/FKM/PTFE/Stainless Steel
Spout Connection Type Hose Barb
Maximum Head Pressure 16.5 psi
Minimum Air Pressure 80 psi
Housing Material Stainless Steel
Power Source - TS Only Air
Power Source - old Air
