Voltage 115VAC
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
RPM 1730
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

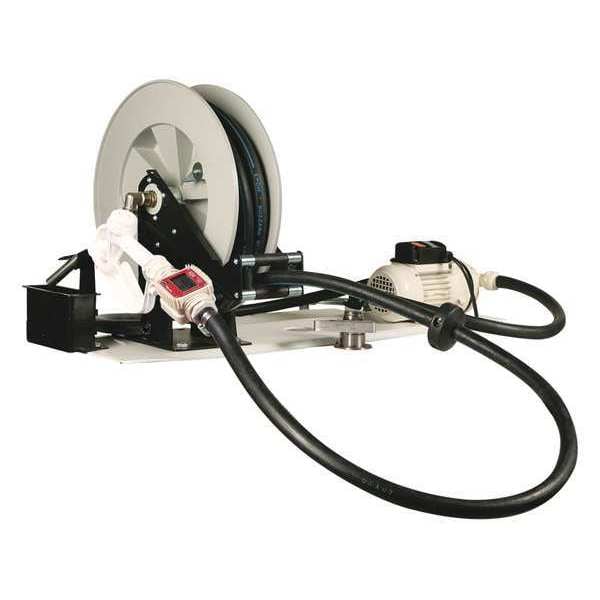

Item Electric Drum Pump
Nozzle Type Manual
For Use With Antifreeze, Clean Water, Diesel Exhaust Fluid
Includes Drip Cup, Nozzle Holder, Spring Rewind Hose Reel, Tote Mounting Plate
Bypass Valve Internal
Bearing Type Sealed Ball
Duty Cycle Intermittent
Metered Yes
Pressure Range 23 psi
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Standards ISO
Nozzle Material Polypropylene/Stainless Steel
Agency Compliance ISO
Wetted Materials EPDM, Polypropylene, Stainless Steel
Motor Enclosure IP55
Motor Type 2 Pole
Max. Head - Pumps 48 ft
Discharge Tube Outlet ID 3/4 in
Pump Connection OD 1 in
Housing Material - Pumps Polypropylene
Hose Tube Material EPDM
Spout Material 316 Stainless Steel
Diesel Exhaust Fluid Compatible Yes
Hose Cover Material Thermal Plastic
Discharge Connection Type Hose Barb
Pump Connection Type Hose Barb
Includes Nozzle Yes
Max. Head Pressure 23 psi
Max. Fluid Temp. 104 Degrees F
Food Grade No Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Nozzle Operation Manual
Max. Oil Flow 8 gpm
Suction Tube Material EPDM
Suction Tube ID 3/4 in
Frequency (Hz) 60 Hz
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Includes Suction Tube Yes
Min. Fluid Temp. 17 Degrees F
Includes Bung Adapter No
Variable Speed No
Motor RPM 1,750 RPM
Motor HP 1/10 hp
Suction Tube OD 1 in
Max. Flow Rate 8 gpm
Power Source Corded Electric
For Container Type Drum, Tote
Runs Dry Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Noise Level 70 dB
Number of Phases 1
Full Load Amps 4.5 A
Includes Spout Yes
Includes Discharge Hose Yes
Spout Connection Type Integral to Nozzle
Discharge Tube Outlet OD 1 in
Rated Voltage 115 V AC
Grease NT
Explosion Proof No
Gear Lube NT
Max. Outlet Pressure 23 psi
Pump Technology Diaphragm
Maximum Oil Flow 8 gpm
Nozzle Fluid Compatibility DEF
Meter Type Included Digital
Meter Unit Of Measure Gallons, Liters
Maximum Head Pressure 23 psi
Maximum Viscosity 10 cps
Minimum Fluid Temperature 17 Degrees F
Motor Horsepower 1/10 hp
Maximum Outlet Pressure 23 psi
Frequency 60 Hz
Housing Finish Powder Coated
Maximum Fluid Temperature 104 Degrees F
Static Protection Not Groundable
Phase Single
Hazardous Location Class Not Rated
Adapter Connection Standard Buttress
Mount Type Foot
Full Load Current 4.5 A
Plug Type NEMA 5-15-P
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Head 48 ft
Pump Connection ID 3/4 in
Maximum Flow Rate 8 gpm
Motor Speed 1,750 RPM
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Power Source - TS Only Corded Electric
