MFR # EFP-54
Zoro # G7003963
UPC # -
Country of Origin United States

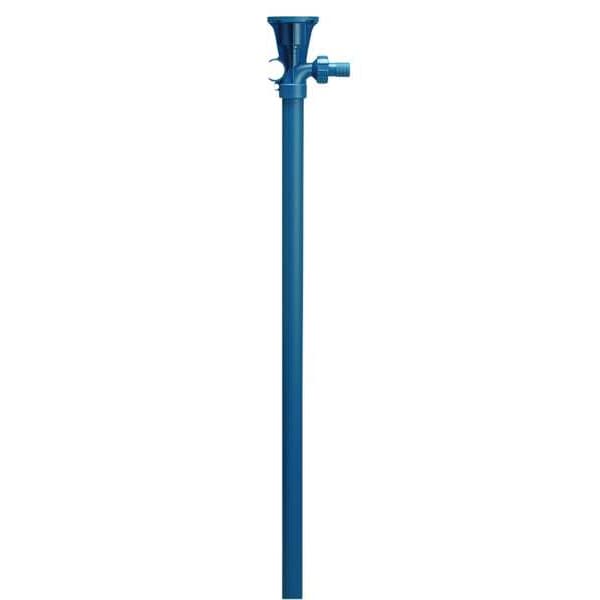

Item Drum Pump Tube
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
For Use With EF
Max. Flow Rate 17 gpm
Max. Viscosity 300 CPS
Wetted Materials 316 Stainless Steel, FKM, Polypropylene, PTFE
Suction Tube ID 1 1/4 in
Max. Fluid Temp. 150 Degrees F
Discharge Tube Outlet ID 3/4 in
Food Grade No
Suction Tube OD 1 3/16 in
Discharge Tube Outlet OD 1 in
Runs Dry No
Diesel Exhaust Fluid Compatible No
Max. Liquid Temp. 150 Degrees F
Suction Tube Type Fixed
Seal Material FKM
Max. Head 20 ft
Suction Tube Material Polypropylene
Self-Priming Yes
Max. Head Pressure 8.6 psi
For Container Type Drum, Tote Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze (Coolant),Calcium Chloride,Citric Acid 50%,Deionized Water,Ethylene Glycol,Formic Acid,Fresh Water,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%)
Discharge Connection Type Hose Barb
Min. Fluid Temp. 0 Degrees F
Series EF Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Bleach,Brake Fluid,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,DEF,Diesel Fuel,E85,Ethanol,Ethyl Acetate,Formaldehyde,Formaldehyde 40%,Gasoline,Glacial Acetic Acid,Glycerin,Heptane,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Ethyl Ketone,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint Thinner,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Grease NT
Gear Lube NT
Maximum Flow Rate 17 gpm Chemical Compatibility
See full list of Chemical Compatibility Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze Coolant,Calcium Chloride,Citric Acid 50%,Deionized Water,Ethylene Glycol,Formic Acid,Fresh Water,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%
Wetted Material 316 Stainless Steel/FKM/Polypropylene/PTFE
Minimum Fluid Temperature 0 Degrees F
Maximum Head Pressure 8.6 psi
Maximum Head 20 ft
Housing Material Polypropylene
Maximum Fluid Temperature 150 Degrees F
Maximum Viscosity 300 cps
Maximum Pressure 8.67 psi
Compatible Manufacturer Part Number DEFP046, DEFP051, DEFP056
Compatible Series EF
