For Use With Chemical Transfer

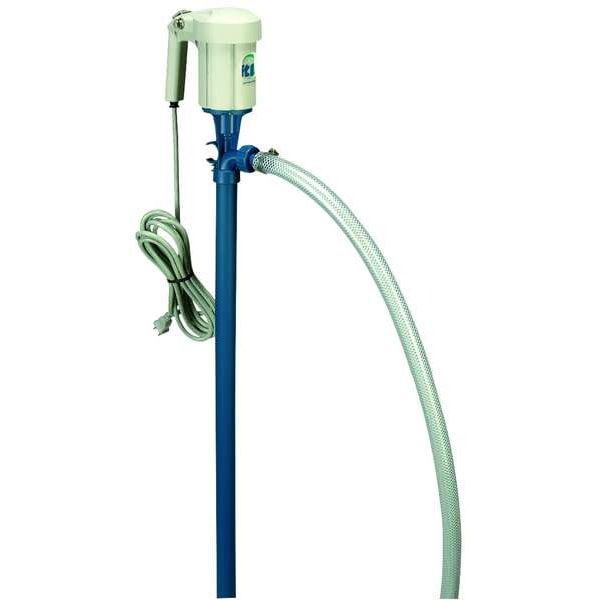

Item Electric Drum Pump
Includes Clamp, Hose, Motor
Max. Viscosity 300 cps
Motor Type Universal AC
Power Source Corded Electric
Wetted Materials 316 Stainless Steel and PVC, FKM, Polypropylene, PTFE
Voltage 115VAC
Motor Enclosure ODP
Metered No
Max. Flow GPM 17 gpm
Motor RPM 8000 to 14,000
DEF Compatible No
Max. GPM for Water 17
Adapter Type Bung
Max. Liquid Temp. 150 Degrees F
Application For Transferring Antifreeze Solvents, Thinners, Automotive Additives, industrial Chemicals, Oil Based Fluids and Other Non Corrosive Fluids
pH Range 6 to 10
HP 1/3
Discharge Tubing Material PVC
Phase Single
Agency Compliance CSA
Hz 60
Suction Tube Type Intake Tube
Max. Head 5 to 20 ft.
Housing Material Polypropylene
Action Type Piston
Self-Priming Yes
RPM 6000 to 13,000
Max. GPM for Oil 7
Adapter Material Polypropylene
Standards QPS
Pump Body Material Polypropylene
Seal Material Fluoroelastomer
Type Motor and Tube
Max. Pressure 8 psi
GPM 7 to 17
Max. Temp. 150 Degrees F
Noise Level 74 dB
Duty Cycle Continuous
Suction Tube Material Polypropylene Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Bleach,Brake Fluid,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,DEF,Diesel Fuel,E85,Ethanol,Ethyl Acetate,Formaldehyde,Formaldehyde 40%,Gasoline,Glacial Acetic Acid,Glycerin,Heptane,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Ethyl Ketone,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint Thinner,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Includes Discharge Hose Yes Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze (Coolant),Calcium Chloride,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fertilizers,Formic Acid,Fresh Water,Fungicides,Herbicides,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%)
Discharge Tube Outlet OD 1 in
Suction Tube ID 1 1/4 in
Thermal Protection No
Suction Tube OD 1 1/4 in
Discharge Connection Type Hose Barb
Frequency (Hz) 60 Hz
Max. Flow Rate 17 gpm
Plug Type NEMA 5-15
Discharge Tube Outlet ID 3/4 in
Food Grade No
Motor HP 1/3 hp
Includes Bung Adapter No
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Fertilizers, Formic Acid, Fungicides, Herbicides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Hose Tube Material PVC
Max. Head - Pumps 20 ft
For Container Type Drum
Min. Fluid Temp. 0 Degrees F
Housing Material - Pumps Polypropylene
Full Load Amps 2.0 A
Diesel Exhaust Fluid Compatible No
Runs Dry No
Pump Connection Type Smooth Bore
Max. Fluid Temp. 150 Degrees F
Includes Suction Tube Yes
Number of Phases 1
Variable Speed No
Includes Nozzle No
Max. Head Pressure 8 psi
Explosion Proof No
Max. Outlet Pressure 8 psi
Rated Voltage 115 V AC
Includes Follower Plate No Follower Plate Included
Motor Horsepower 1/3 hp
Pump Technology Centrifugal
Motor Speed 14,000 RPM
Maximum Head Pressure 8 psi
Pump Connection ID 1 1/4 in
Wetted Material 316 Stainless Steel/FKM/Polypropylene/PTFE
Spout Material Polypropylene
Container Cover Type Included No Cover Included
Pump Connection OD 1 1/4 in
Mount Type Bung
Static Protection Not Groundable
Hose Cover Material PVC
Minimum Fluid Temperature 0 Degrees F
Maximum Head 20 ft
Maximum Viscosity 300 cps
Spout Connection Type Hose Barb
Frequency 60 Hz Chemical Compatibility
See full list of Chemical Compatibility Acetic Acid 20%,Acetic Acid 80%,Ammonium Hydroxide,Antifreeze Coolant,Calcium Chloride,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fertilizers,Formic Acid,Fresh Water,Fungicides,Herbicides,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%
Includes Spout Yes
Maximum Flow Rate 17 gpm
Motor Enclosure Design Open Drip Proof
Hazardous Location Class Not Rated
Meter Type Included No Meter Included
Maximum Outlet Pressure 8.7 psi
Maximum Fluid Temperature 150 Degrees F
Full Load Current 2 A
Power Source - TS Only Corded Electric
Power Source - old Corded Electric
