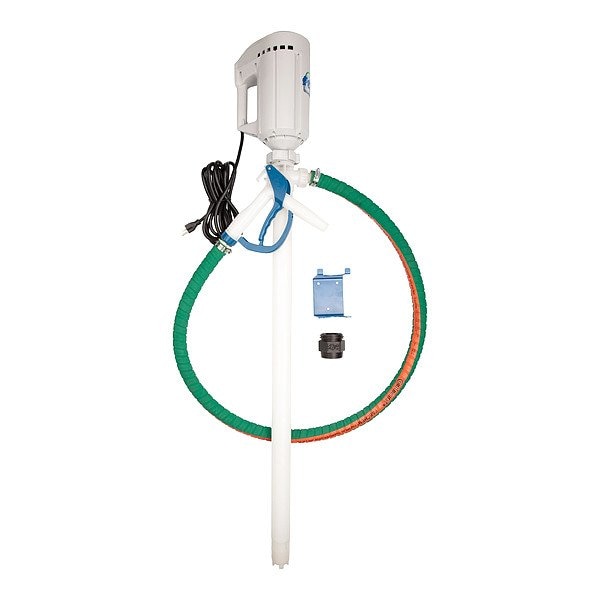

Electric Drum Pump, PVDF, 1 hp, 115 V AC

  • Mfr # PFV-40 & M3TV Kit

  • Zoro # G021908955

product price:
$
2,360.99
/ea
Free Shipping & Returns

Key Features

Seal Material
FKM
Includes Follower Plate
No Follower Plate Included
Includes Spout
Yes
Pump Connection OD
2 in
Hose Outside Diameter
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PFV-40 & M3TV Kit
Zoro #
G021908955
UPC #
-
Country of Origin
United States
Seal Material
FKM
Includes Follower Plate
No Follower Plate Included
Includes Spout
Yes
Pump Connection OD
2 in
Features
Built-In Hose and Cord Clips, Greater Flow Control with Variable Orifice Discharge, Interchangeable with Motors
Adapter Connection Standard
Smooth Bore
Maximum Fluid Temperature
120 Degrees F
Minimum Fluid Temperature
35 Degrees F
Maximum Viscosity
2,000 cps
Hose Tube Material
Polyethylene
Nozzle Material
PVDF
Duty Cycle
Continuous
Spout Connection Type
Hose Barb
Container Cover Type Included
No Cover Included
Hazardous Location Class
Not Rated
Spout Material
PVDF
Includes Discharge Hose
Yes
Plug Type
NEMA 5-15
Static Protection
Not Groundable
Frequency
60 Hz
Variable Speed
Yes
Hose Cover Material
Polyethylene
Includes
Drum Pump Tube, Motor, Wall Bracket
Suction Tube Material
PVDF
Discharge Tube Outlet OD
2 in
Wetted Material
Alloy 625/FKM/PTFE/PVDF
Pump Connection Type
Smooth Bore
Standards
QPS
Chemical Compatibility
Acid, Diesel Exhaust Fluid, Water
Housing Material
PVDF
Full Load Current
9.1 A
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Speed
12,000 RPM
Includes Suction Tube
Yes
Mount Type
Bung
Phase
Single
Motor Horsepower
1 hp
Rated Voltage
115 V AC
Pump Technology
Centrifugal
For Container Type
Drum
Maximum Flow Rate
40 gpm
Meter Type Included
No Meter Included
Nozzle Operation
Manual
Includes Nozzle
Yes
Maximum Head Pressure
35 psi
Pump Connection ID
2 in
Power Source - TS Only
External Motor
Maximum Head
80 ft
Item
Electric Drum Pump
Maximum Outlet Pressure
35 psi
Includes Bung Adapter
Yes
Power Source
External Motor
Power Source - old
External Motor

Description

Electric Drum Pump, Rated Voltage 115 V AC, Plug Type NEMA 5-15, Pump Connection ID 2 in, Hose Length 6 ft, Suction Tube Length 40 in, Includes Bung Adapter Yes, Nozzle Operation Manual, Power Source External Motor, Variable Speed Yes, Includes Discharge Hose Yes, Features Built-In Hose and Cord Clips, Greater Flow Control with Variable Orifice Discharge, Interchangeable with Motors, Housing Finish Not Applicable, Includes Nozzle Yes, Includes Spout Yes, Nozzle Material PVDF
