Shop FINISH THOMPSON

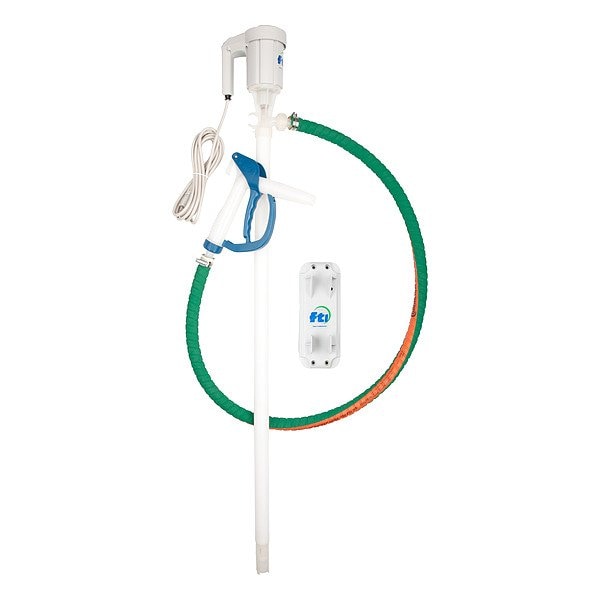

ElectricDrumPump, PVDF, 1/3hp, 115VAC

  • Mfr # EFV-40 & S1 Kit

  • Zoro # G921908598

product price:  $852.99
/ea
Free Shipping & Returns

Key Features

Overall Length
40 in
Includes Spout
Yes
Frequency
60 Hz
Pump Connection OD
1 5/16 in
Hose Inside Diameter
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFV-40 & S1 Kit
Zoro #
G921908598
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
40 in
Hose Inside Diameter
3/4 in
Hose Length
5 ft
Spout Discharge Size
3/4 in
Adapter Connection Diameter
2 in
Suction Tube Length
40 in
Hose Outside Diameter
1 5/16 in
For Container Size
55 gal
Spout Length
1 in

Details

Includes Spout
Yes
Frequency
60 Hz
Pump Connection OD
1 5/16 in
Includes Bung Adapter
No
Seal Material
FKM
Pump Connection ID
1 5/16 in
Minimum Fluid Temperature
0 Degrees F
Maximum Head
20 ft
Mount Type
Bung
Meter Type Included
No Meter Included
Pump Technology
Centrifugal
Spout Material
PVDF
Motor Horsepower
1/3 hp
Motor Speed
14,000 RPM
Container Cover Type Included
No Cover Included
Includes Discharge Hose
Yes
Discharge Tube Outlet OD
1 5/16 in
Includes
Drum Pump Tube, Motor, Wall Bracket
Duty Cycle
Continuous
Variable Speed
No
Phase
Single
Motor Enclosure Design
Open Drip Proof
Wetted Material
316 Stainless Steel/FKM/Polypropylene/PTFE/PVDF
Nozzle Operation
Manual
Static Protection
Not Groundable
Item
Electric Drum Pump
Includes Follower Plate
No Follower Plate Included
Maximum Outlet Pressure
8.7 psi
Spout Connection Type
Hose Barb
Chemical Compatibility
Diesel Exhaust Fluid, Acid, Sodium Hypochlorite
Suction Tube Material
PVDF
Hose Cover Material
Polyethylene
For Container Type
Drum
Power Source - TS Only
External Motor
Housing Material
PVDF
Maximum Fluid Temperature
160 Degrees F
Maximum Flow Rate
17 gpm
Nozzle Material
PVDF
Full Load Current
2 A
Maximum Viscosity
300 cps
Rated Voltage
115 V AC
Includes Nozzle
Yes
Hose Tube Material
Polyethylene
Plug Type
NEMA 5-15
Includes Suction Tube
Yes
Pump Connection Type
Smooth Bore
Maximum Head Pressure
8.7 psi
Hazardous Location Class
Not Rated
Features
Dual Speed Adjustable Motors, Integral Strainer, Lightweight and Economical, Plastic Models Have Built-In Hose Cord and Clips, Tubes Interchangeable with Motors
Standards
QPS
Power Source
External Motor

Description

Electric Drum Pump, Rated Voltage 115 V AC, Plug Type NEMA 5-15, Pump Connection ID 1 5/16 in, Hose Length 5 ft, Suction Tube Length 40 in, Includes Bung Adapter No, Nozzle Operation Manual, Power Source External Motor, Variable Speed No, Includes Discharge Hose Yes, Features Dual Speed Adjustable Motors, Integral Strainer, Lightweight and Economical, Plastic Models Have Built-In Hose Cord and Clips, Tubes Interchangeable with Motors, Housing Finish Not Applicable, Includes Nozzle Yes
