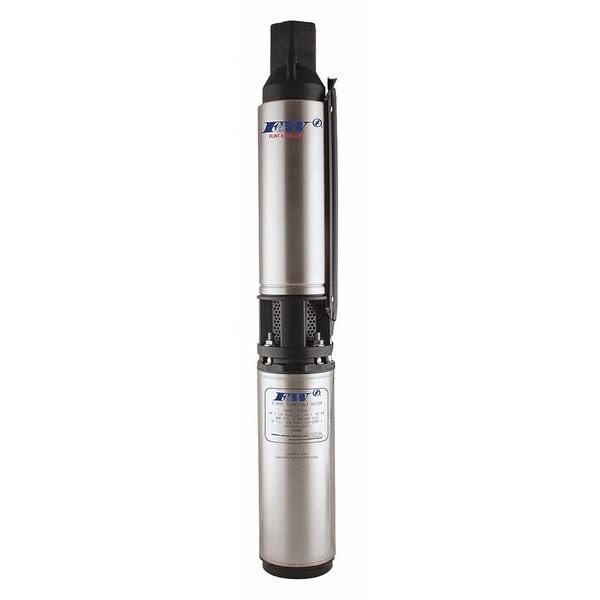

Flint & Walling Pump, 1/2, 3 Wires 4F11P05301S

Pump, 1/2, 3 Wires (Discontinued)

  • Mfr # 4F11P05301S
  • Zoro # G2554093
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4F11P05301S
Zoro #
G2554093
UPC #
054757077099
Country of Origin
United States

Dimensions

GPM @ Vertical Depth to Water @ 100 Ft @ 50 PSI
5
Width (In.)
3-3/4
GPM @ Vertical Depth to Water @ 100 Ft @ 30 PSI
9
Length (In.)
27-1/2
Height (In.)
3-3/4
GPM @ Vertical Depth to Water @ 20 Ft @ 50 PSI
7
Discharge Dia.
1 1/4

Details

HP
1/2 hp
Item
Submersible Deep Well Pump
Number of Wires
3
Amps
6.0 A
Rated Voltage
230V AC
Phase - Pumps
1
Nominal Flow Rate
11 gpm
Number of Stages
8
Discharge Head Material
Thermoplastic
Flow Rate @ 100 Ft. @ 40 PSI
8.7 gpm
Flow Rate @ 100 Ft. @ 50 PSI
6.6 gpm
Shaft Material
Stainless Steel
Well Capacity
Average
Impeller Material
Noryl
Tank PSI
20, 30, 40, 50, 60
Discharge Port (In.)
1-1/4
Stages
7
SF Amps
6.0
Motor Enclosure
Totally Enclosed Nonventilated
Amps AC
6.0
Phase
1
Built-In Check Valve
Yes
Max. Operating Temp. (F)
86
Pump Material
Thermoplastic
Type
Deep Well Submersible
Pump-Motor Shell
Stainless Steel
Voltage
230
GPM
11
Control Box Required
Yes
Max. Operating Temp.
86
Max. Head
277 ft

Description

Submersible Deep Well Pump, HP 1/2 hp, Rated Voltage 230V AC, Amps 6.0 A, Phase - Pumps 1, Number of Stages 8, Number of Wires 3, Discharge Head Material Thermoplastic, Impeller Material Noryl, Shaft Material Stainless Steel, Nominal Flow Rate 11 gpm, Flow Rate @ 100 Ft. @ 40 PSI 8.7 gpm, Flow Rate @ 100 Ft. @ 50 PSI 6.6 gpm, Max. Head 277 ft, Discharge Dia. 1 1/4, Max. Operating Temp. 86, Nominal Voltage 220V AC
