  5. Infrared Camera, 40 mK, 640 x 480 Display, 14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees

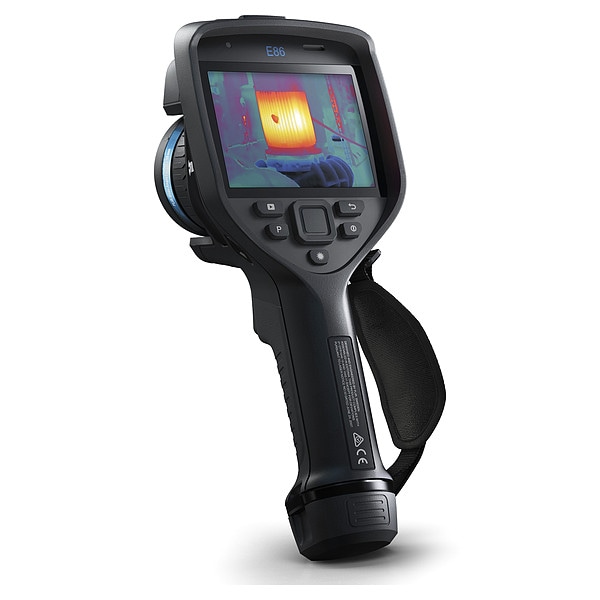

Flir Infrared Camera, 40 mK, 640 x 480 Display, 14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees FLIR E86 DFOV 14 + 24 - main

Infrared Camera, 40 mK, 640 x 480 Display, 14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees

  • Mfr # FLIR E86 DFOV 14 + 24

  • Zoro # G810881735

product price:  $16,746.38
/ea
Free Shipping & Returns

Key Features

Field of View
14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
40 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLIR E86 DFOV 14 + 24
Zoro #
G810881735
UPC #
845188029494
Country of Origin
Estonia

Dimensions

Display Size
4 in
Manufacturer Warranty Length
10 yr

Details

Item
Infrared Camera
Field of View
14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
40 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
JPEG
Removable Memory Card
8GB MicroSD
Includes
Battery Charger, Front Lens Cap, Hard Carrying Case, Lanyards, License card: FLIR Thermal Studio Starter, Power Supplies, USB 2.0 a to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C
Standards
EN/UL/CSA/PSE 60950-1
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Calibration Certificate Type
Available Separately
Auto Power Off
Yes
Minimum Temperature Measured Degrees F
-4 Degrees F
Maximum Temperature Measured Degrees C
1,500 Degrees C
Alert Type
Digital Display, Sound
Intrinsic Safety
Not Specified Intrinsically Safe
Minimum Focus Distance
0.18 m
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Frame Rate
30 Hz
Maximum Temperature Measured Degrees F
2,732 Degrees F
Minimum Temperature Measured Degrees C
-20 Degrees C
Minimum Emissivity Setting
0.01
Maximum Operating Temperature Degrees F
122 Degrees F
Lens Angles Included
14 Degrees , 24 Degrees
Number of Batteries Required
2
Interface
SD Card, USB, Wireless
Minimum Operating Temperature Degrees F
5 Degrees F
Battery Voltage
3V
Batteries Included
Yes
Battery Chemistry
Lithium Ion
Portability
Handheld
Series
Exx-Series
Infrared Resolution
464 x 348
Emissivity Adjustability
Adjustable
Digital Display Screen Type
LCD Touchscreen
Battery Run Time
2.5 hr
Data Transfer Type
Wired, Wireless
Accuracy Degrees C
+/-2% of Reading or +/-2 Degrees C Whichever is Greater
Maximum Emissivity Setting
1.00

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 40 mK, Minimum Focus Distance 0.18 m
