  9. Infrared Camera, 40 mK, 640 x 480 Display
No Product Image Available

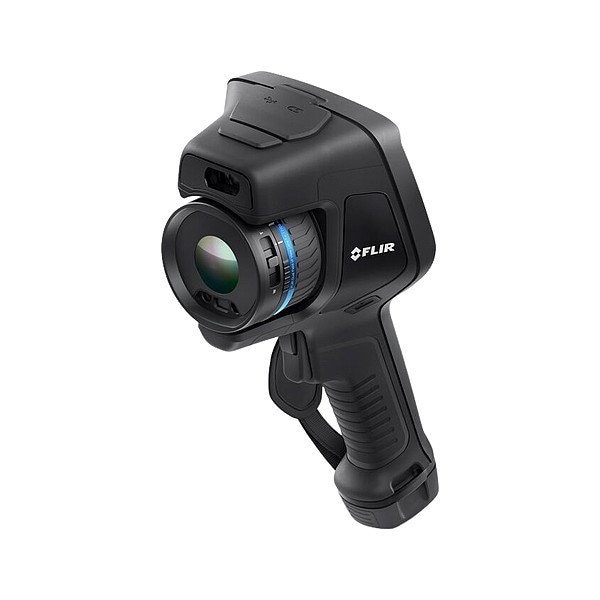

Infrared Camera, 40 mK, 640 x 480 Display

  • Mfr # FLIR E76 DFOV (42 + 24)-14

  • Zoro # G415079186

product price: $15,179.99
/ea
Free Shipping & Returns

Key Features

Field of View
14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees , 42 Degrees x 32 Degrees
Features
Multi Spectral Dynamic Imaging (MSX(R)), UltraMax
Thermal Sensitivity
40 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR E76 DFOV (42 + 24)-14
Zoro #
G415079186
UPC #
845188032302
Country of Origin
Estonia

Dimensions

Display Size
4 in
Manufacturer Warranty Length
3 yr

Details

Item
Infrared Camera
Field of View
14 Degrees x 10 Degrees , 24 Degrees x 18 Degrees , 42 Degrees x 32 Degrees
Features
Multi Spectral Dynamic Imaging (MSX(R)), UltraMax
Thermal Sensitivity
40 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
H.264, JPEG, MJPEG
Removable Memory Card
8GB SD
Includes
(2) Batteries, (2) Front Lens Caps, (3) USB Cables: 2.0 A to Type-C, Type-C to HDMI, Type-C to Type-C, Battery Charger, FLIR Thermal Studio Starter Software, Hand Strap, Hard Transport Case, Interchangeable 14 Degrees Lens, Interchangeable Dual Field of View Lens (24 Degrees + 42 Degrees ), Lanyard Strap, Power Supply, Rear Lens Cap, SD Card (8 GB), Wrist Strap
Standards
CSA, EN, PSE 60950-1, UL
Emissivity Adjustability
Adjustable
Auto Power Off
Yes
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Data Transfer Type
Wired, Wireless
Digital Display Screen Type
LCD Touchscreen
Battery Chemistry
Lithium Ion
Calibration Certificate Type
Certified
Batteries Included
Yes
Interface
SD Card, USB, Wireless
Minimum Temperature Measured Degrees F
-4 Degrees F
Laser Sighting Type
Single Dot
Minimum Operating Temperature Degrees F
5 Degrees F
Temperature Alerts
High Temperature, Low Temperature
Frame Rate
30 Hz
Maximum Operating Temperature Degrees F
122 Degrees F
Minimum Temperature Measured Degrees C
-20 Degrees C
Minimum Focus Distance
0.25 m
Maximum Temperature Measured Degrees F
1,202 Degrees F
Intrinsic Safety
Not Specified Intrinsically Safe
Portability
Handheld
Lens Angles Included
14 Degrees ; 24 Degrees ; 42 Degrees ; 80 Degrees
Maximum Emissivity Setting
1.00
Number of Batteries Required
2
Infrared Resolution
320 x 240
Series
Exx
Battery Voltage
3.7V
Battery Run Time
2.5 hr
Maximum Temperature Measured Degrees C
1,500 Degrees C
Alert Type
Digital Display, Sound
Minimum Emissivity Setting
0.01

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Certified, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 40 mK, Minimum Focus Distance 0.25 m, Minimum Operating Temperature Degrees F 5 Degrees F
