Flir Infrared Camera Kit, 14 Degrees to 302 Degrees F, 100 mK, Uses Monitor, PC or DVR Display 71201-0101-KIT - main

Infrared Camera Kit, 14 Degrees to 302 Degrees F, 100 mK, Uses Monitor, PC or DVR Display

  • Mfr # 71201-0101-KIT

  • Zoro # G4702087

product price:  $1,830.45
/ea
Free Shipping & Returns

Key Features

Field of View
48 Degrees x 37 Degrees
Temp. Range (F) - Infrared
14 Degrees to 302 Degrees
Features
Data Logging, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
100 mK
Focus Method
Fixed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
71201-0101-KIT
Zoro #
G4702087
UPC #
793950110102
Country of Origin
Estonia

Dimensions

Display Size
Uses Monitor, PC or DVR
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera Kit
Field of View
48 Degrees x 37 Degrees
Temp. Range (F) - Infrared
14 Degrees to 302 Degrees
Features
Data Logging, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
100 mK
Focus Method
Fixed
Display Resolution
Uses Monitor, PC or DVR
Visual Light Resolution
0.3 MP
File Formats
H.264, JPEG, MPEG, MPEG4
Removable Memory Card
No

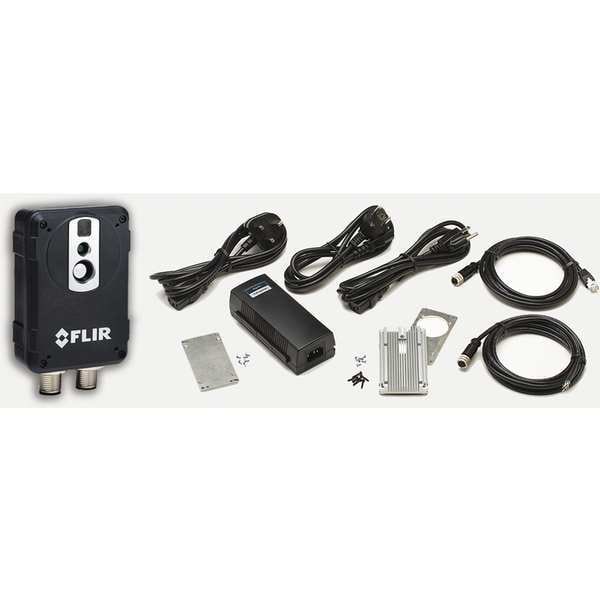

Includes
Cable Kit, Ethernet Cable, Front Mounting Plate, Infrared Camera with Lens, Pigtail Cable, PoE Injector, Rear Mounting Plate
Standards
EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission)
Ambient Temp. Range (F)
32 Degrees to 122 Degrees F
Temp. Range (C) - Infrared
-10 Degrees to 150 Degrees
IR Detector Resolution
80 x 60 Pixels
Safety Rating
CE, FCC
Thermal Sensitivity - IR Camera
100
Temp. Accuracy (C)
+/-2 Degrees
Wireless
No
Temp. Accuracy (F) - Infrared
+/-2.0% of Reading or +/-3.6 Degrees Whichever is Greater
Frame Rate - IR Camera
9 Hz
Ambient Temp. Range (C)
0 Degrees to 50 Degrees
Alarm
yes
Articulating Lens
No
Multiple Lens Option
No
Temp. Range (F)
14 Degrees to 302 Degrees
Item - Fixed Location Infrared Camera
Fixed Location Infrared Camera
Laser Sighting
No
Spectral Response - Infrared
7.5 to 13.0um
Spectral Response
7.5 to 13um
Temp. Accuracy (C) - Infrared
+/-2 Degrees +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Data Logging - Instrument
Yes
Temp. Accuracy
+/-2%
Temp. Range (C)
-10 Degrees to 150 Degrees
Temp. Accuracy (F)
+/-3.6 Degrees
Drop Tested
Not Tested
Focus Range - Infrared
0.10m to Infinity
Ambient Temp. Range
0 Degrees to 50 Degrees C
Field of View - IR Camera
48.0 Degrees Horizontal x 37.0 Degrees Vertical
Image Notation
No Notation
Thermal and Visible Light Blending
Yes
Display Type
Uses Monitor, PC or DVR
Thermal And Visible Light Blending
Yes
Detector Resolution - Infrared
80 x 60 px
NIST Certified
No
Image Frequency
9 Hz
Picture In Picture
No
Calibration Certificate
No
Focus Range
4" to Infinity
Special Features
Built-In Analysis Functionality, Built-In Web Server, Image Streaming, Power Over Ethernet, On Alarm File Sending FTP/Email of Analysis Results or Images
Emissivity
Adjustable 0.10 to 1.00
Thermal Resolution
4,800 px
Data Logging
Yes
Focus Distance - Infrared
Minimum of 0.10m
Calibration Certificate Type
Not Certified
Intrinsic Safety
Not Specified Intrinsically Safe
Interface
Supports Ethernet IP Field Bus Protocol, Modbus TCP Field Bus Protocol,
Maximum Temperature Measured Degrees C
150 Degrees C
Maximum Temperature Measured Degrees F
302 Degrees F
Maximum Operating Temperature Degrees F
122 Degrees F
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Alert Type
Digital Display, Light, Sound
Minimum Emissivity Setting
0.01
Lens Angles Included
48 Degrees
Minimum Temperature Measured Degrees F
14 Degrees F
Digital Display Screen Type
No Display
Data Transfer Type
Wired, Wireless
Maximum Emissivity Setting
1.00
Emissivity Adjustability
Adjustable
Minimum Operating Temperature Degrees F
14 Degrees F
Minimum Temperature Measured Degrees C
-10 Degrees C
Infrared Resolution
80 x 60
Frame Rate
9 Hz
Temperature Alerts
High Temperature, Low Temperature
Minimum Focus Distance
0.15 m
Laser Sighting Type
No Laser Sighting
Auto Power Off
Yes

Description

Infrared Camera Kit, Temperature Alerts High Temperature, Low Temperature, Frame Rate 9 Hz, Visual Light Resolution 0.3 MP, Calibration Certificate Type Not Certified, Alert Type Digital Display, Light, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type No Display, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 100 mK, Minimum Focus Distance 0.15 m, Minimum Operating Temperature Degrees F 14 Degrees F
