  5. Infrared Camera, Yes Laser Sighting Adjustable 0.10 to 1.00, -4 Degrees to 1202 Degrees F

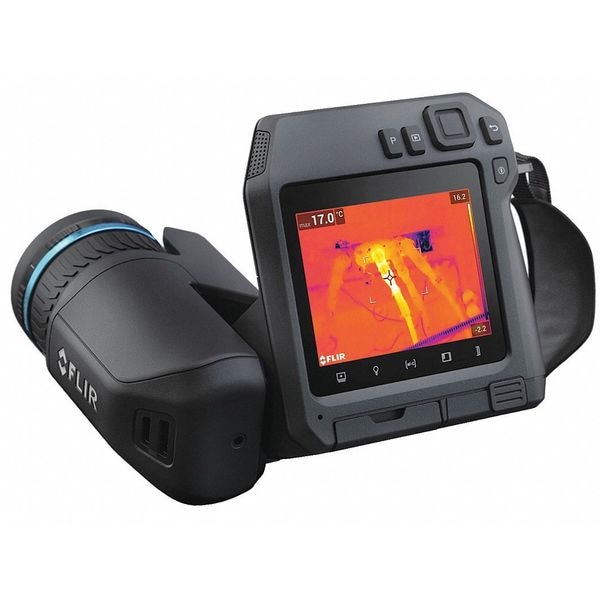

Flir Infrared Camera, Yes Laser Sighting Adjustable 0.10 to 1.00, -4 Degrees to 1202 Degrees F FLIR T540-42 - main
Shop FLIR

Infrared Camera, Yes Laser Sighting Adjustable 0.10 to 1.00, -4 Degrees to 1202 Degrees F

  • Mfr # FLIR T540-42

  • Zoro # G6625740

original price:  $20,238.99 , new price: $19,099.00 , 5 percent off
new price:  $19,099.00
/ea
Free Shipping & Returns

Key Features

Temp. Range (F) - Infrared
-4 Degrees to 1202 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-2.0% or +/-3.6 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-2.0 Degrees
Laser Sighting
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR T540-42
Zoro #
G6625740
UPC #
845188014674
Country of Origin
Sweden

Dimensions

Manufacturers Warranty Length
2 yr Parts and Labor
Display Size
4 in
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Temp. Range (F) - Infrared
-4 Degrees to 1202 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-2.0% or +/-3.6 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-2.0 Degrees
Laser Sighting
Yes
Data Logging - Instrument
Yes
Display - IR Camera
4.0 in Touch Screen Color LCD
Focus Method
Auto, Manual
Special Features
180 Degrees Rotating Lens, 4 in LCD Display with 160 Degrees Viewing Angle, Automated GPS Tagging, Built-In Laser Distance Meter, Capacitive Touch Screen with Intuitive Menu, Interchangeable Auto Cal Lenses, Laser Assisted Autofocus, Ultra Max Super Resolution (In FLIR Tools)
Picture In Picture
Yes
Ambient Temp. Range
-15 Degrees to 50 Degrees C
Charger Replacement
423N33
Alarm
yes
File Formats
H.264, MJPEG, MPEG4
Thermal And Visible Light Blending
Yes
Item - Infrared Camera
Infrared Camera
Includes
Battery Charger, Cables (USB 2.0 A to USB Type-C), Front Lens Cap, Hard Carrying Case, Infrared Camera with Lens, Lanyards, License Card Flir Thermal Studio Pro (3 Month Subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 Month Subscription), Power Supply, USB Type-C to HDMI, USB Type-C to USB Type-C
Frame Rate - IR Camera
30 Hz
Ambient Temp. Range (F)
5 Degrees to 122 Degrees
Green Environmental Attribute
Product is Rechargeable
Drop Tested
Not Tested
Standards
CSA, EN, PSE 60950-1, UL Listed
Image Notation
Sketch
Wireless
Yes
Thermal and Visible Light Blending
Yes
NIST Certified
No
Temp. Range (C) - Infrared
-20 Degrees to 650 Degrees
Detector Resolution - Infrared
464 x 348 Pixels
Visual Light Resolution
5 MP
Included Charger
423N33
Multiple Lens Option
Yes
Display Resolution - IR Camera
640 x 480 Pixels
Articulating Lens
Yes
Removable Memory Card
SD
Safety Rating
EN/UL/CSA/PSE 60950-1
Field of View - IR Camera
42.0 Degrees Horizontal x 32.0 Degrees Vertical
Thermal Sensitivity - IR Camera
30 mK
Spectral Response - Infrared
7.5 to 14.0um
Focus Range - Infrared
0.15m to Infinity
Display Resolution
640 x 480
Thermal Sensitivity
30 mK
Field of View
42 Degrees x 32 Degrees
Focus Distance - Infrared
Minimum of 0.15 m
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Minimum Operating Temperature Degrees F
5 Degrees F
Calibration Certificate Type
Available Separately
Lens Angles Included
42 Degrees
Data Transfer Type
Wired, Wireless
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Alert Type
Digital Display, Sound
Number of Batteries Required
2
Digital Display Screen Type
LCD Touchscreen
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Minimum Emissivity Setting
0.01
Minimum Temperature Measured Degrees C
-20 Degrees C
Emissivity Adjustability
Adjustable
Maximum Temperature Measured Degrees F
2,732 Degrees F
Minimum Focus Distance
0.15 m
Maximum Operating Temperature Degrees F
122 Degrees F
Maximum Temperature Measured Degrees C
1,000 Degrees C
Frame Rate
30 Hz
Maximum Emissivity Setting
1.00
Battery Chemistry
Lithium Ion
Infrared Resolution
464 x 348
Minimum Temperature Measured Degrees F
-4 Degrees F
Battery Voltage
3V
Intrinsic Safety
Not Specified Intrinsically Safe
Batteries Included
Yes
Series
T500
Interface
SD Card, USB, Wireless
Battery Run Time
4 hr

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 30 mK, Minimum Focus Distance 0.15 m
