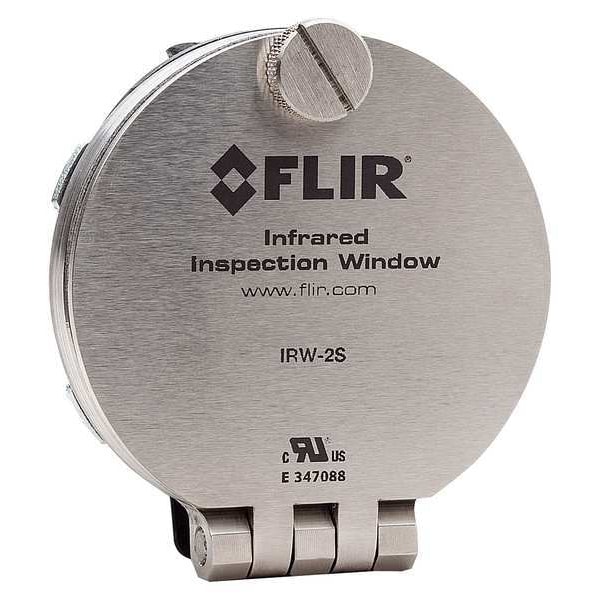

Infrared Window, 1521 sq. mm, IP67, SS
Mfr # IRW-2S
Zoro # G7551835
product price:Â
$
324.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Includes
Installation Instructions
Viewing Aperture Size
44mm dia
Voltage Range
Any
Gasket Maximum Temperature
170 Degrees F
Use
Indoor, Outdoor
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- IRW-2S
- Zoro #
- G7551835
- UPC #
- 845188007584
- Country of Origin
- Estonia
- Item
- Infrared Window
- Includes
- Installation Instructions
- Voltage Range
- Any
- Gasket Maximum Temperature
- 170 Degrees F
- Use
- Indoor, Outdoor
- Special Features
- Hinged Cover Stays Attached, No Special Tool to Secure Cover, Window Labeling/ID# Inside The Cover, 3 Step Installation, No Screw Holes to Drill
- Body Maximum Temperature
- 500 Degrees F
- Optic Maximum Temperature
- 2,474 Degrees F
- Viewing Aperture Area
- 2.46 sq in
- NEMA Rating
- 12, 4
- Components
- Stainless Steel Frame and Cover
- IP Rating
- IP67
- Body Material
- Stainless steel
- Lens Material
- Crystal
- Cover Material
- Stainless Steel
- For Outdoor Use
- Yes
- Maximum Operating Temperature Degrees F
- 500 Degrees F
- Frame Material
- Stainless Steel
- Minimum Operating Temperature Degrees F
- -40 Degrees F
Description
Infrared Window, Maximum Operating Temperature Degrees F 500 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Optic Maximum Temperature 2,474 Degrees F, Viewing Aperture Area 2.46 sq in, Viewing Aperture Diameter 1.77 in, Viewing Aperture Height Not Applicable, Viewing Aperture Width Not Applicable, Window Thickness 0.07 in, Body Maximum Temperature 500 Degrees F, Includes Installation Instructions, IP Rating IP67, Gasket Maximum Temperature 170 Degrees F
