  5. IR Cam, 640x480IR Res, 14x10FOV
No Product Image Available

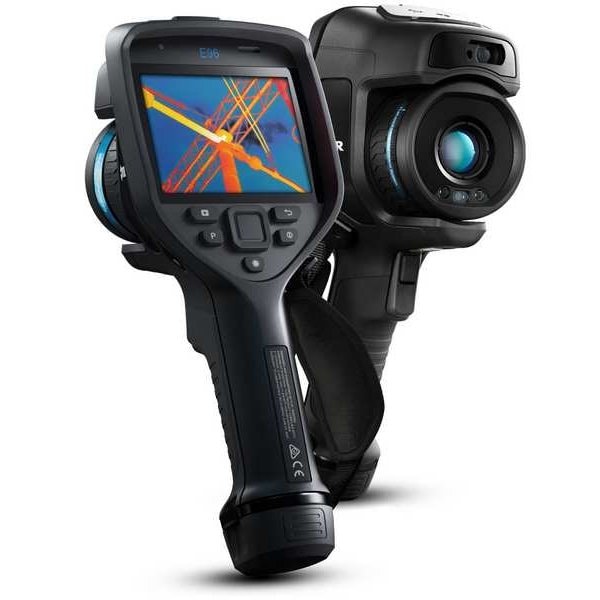

IR Cam, 640x480IR Res, 14x10FOV

  • Mfr # FLIR E96-14

  • Zoro # G001006732

product price:  $20,029.99
/ea
Free Shipping & Returns

Key Features

Image Notation
Text, Voice
Temp. Accuracy (C) - Infrared
+/-2 Degrees C or +/-2% of the Reading
Charger Replacement
627L67
Detector Resolution - Infrared
640 × 480 px
Removable Memory Card
8GB MicroSD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLIR E96-14
Zoro #
G001006732
UPC #
845188022259
Country of Origin
Estonia

Dimensions

Manufacturers Warranty Length
2 yr Parts and Labor
Display Size
4 in
Manufacturer Warranty Length
2 yr

Details

Image Notation
Text, Voice
Temp. Accuracy (C) - Infrared
+/-2 Degrees C or +/-2% of the Reading
Charger Replacement
627L67
Detector Resolution - Infrared
640 × 480 px
Removable Memory Card
8GB MicroSD
Special Features
4 in Touchscreen, Built In GPS, Image Sktech, METERLiNK to FLIR Meters, UltraMax (Super-Resolution), Voice Annotations
Articulating Lens
No
Wireless
Yes
Item - Infrared Camera
Infrared Camera
Thermal Sensitivity - IR Camera
40 mK
Picture In Picture
Yes
Visual Light Resolution
5 MP
Laser Sighting
Yes
Alarm
No
Includes
Battery Charger, Cables (USB 2.0 A to USB Type-C), Flir Thermal Studio Starter, Front Lens Cap, Hard Carrying Case, Infrared Camera Lens, Lanyards, License Card, Power Supply, USB Type-C to HDMI, USB Type-C to USB Type-C
Temp. Range (C) - Infrared
-20 to 120 Degrees C, 300 to 1500 Degrees C
Temp. Accuracy (F) - Infrared
+/-3.6 Degrees For +/-2% of the Reading
File Formats
CSQ
Drop Tested
2 m
Display - IR Camera
4.0 in Touch Screen Color LCD
Temp. Range (F) - Infrared
-4 to 248 Degrees F, 572 to 2732 Degrees F
Spectral Response - Infrared
7.5 to 14 micron m
Ambient Temp. Range (F)
5 Degrees to 122 Degrees
Frame Rate - IR Camera
30 Hz
Multiple Lens Option
Yes
Included Charger
627L67
Data Logging - Instrument
Yes
Item
Infrared Camera
Field of View - IR Camera
14 Degrees Horizontal × 10 Degrees Vertical
Standards
EN/UL/CSA/PSE 60950-1, IEC/EN 60950-1, IEC/EN 62368-1
Emissivity
Adjustable 0.01 to 1.00
Ambient Temp. Range
5 Degrees to 122 Degrees F
Safety Rating
EN/UL/CSA/PSE 60950-1
Focus Method
Auto, Manual
Thermal and Visible Light Blending
Yes
Focus Distance - Infrared
Minimum 0.15 m
NIST Certified
No
Display Resolution - IR Camera
4", 640 × 480 Pixel Touchscreen LCD with Auto-rotation
Product Type
Infrared Camera
Number of Batteries Required
2
Maximum Temperature Measured Degrees F
2,732 Degrees F
Thermal Sensitivity
50 mK
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Battery Run Time
2.5 hr
Calibration Certificate Type
Available Separately
Minimum Focus Distance
1 m
Maximum Temperature Measured Degrees C
1,500 Degrees C
Frame Rate
30 Hz
Display Resolution
640 x 480
Battery Chemistry
Lithium Ion
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Infrared Resolution
640 x 480
Maximum Emissivity Setting
1.00
Interface
SD Card, USB, Wireless
Digital Display Screen Type
LCD Touchscreen
Data Transfer Type
Wired, Wireless
Minimum Temperature Measured Degrees C
-20 Degrees C
Maximum Operating Temperature Degrees F
122 Degrees F
Laser Sighting Type
Circular
Minimum Operating Temperature Degrees F
5 Degrees F
Series
FLIR Exx
Minimum Emissivity Setting
0.01
Intrinsic Safety
Not Specified Intrinsically Safe
Emissivity Adjustability
Adjustable
Batteries Included
Yes
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Lens Angles Included
14 Degrees
Minimum Temperature Measured Degrees F
-4 Degrees F
Battery Voltage
3V
Alert Type
Digital Display, Sound
Auto Power Off
Yes
Portability
Handheld
Field of View
14 Degrees x 10 Degrees

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 50 mK, Minimum Focus Distance 1 m
