Shop FLIR

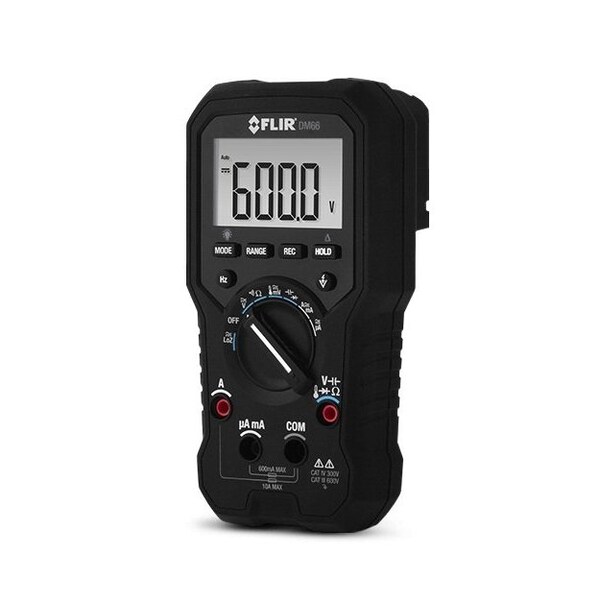

Multimeters, 600 V Max DC, TRMS, 6,000 Instrument Counts, Backlit LCD

  • Mfr # DM66

  • Zoro # G4017400

product price:
$
200.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(2) Batteries, Alligator Clips, Test Leads, Soft Carrying Case
Standards
CENELEC Low-Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, RoHS Directive 2011/65/EU
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DM66
Zoro #
G4017400
UPC #
793950381663
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr Limited
Depth
6.3 in
Overall Height
2 in
Battery Size
AAA
Overall Width
3.1 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(2) Batteries, Alligator Clips, Test Leads, Soft Carrying Case
Standards
CENELEC Low-Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, RoHS Directive 2011/65/EU
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Temp. Range
-40 Degrees to 752 Degrees F
Max. AC Amps
10:00 AM
Duty Cycle
No
Interface
None
NIST Certification By
Not Certified
AC Response
TRMS
Series
FLIR(R) DM60
Instrument Frequency Counter Range
1 Hz to 50 kHz
Instrument Safety Rating
CAT III 600V, CAT IV 300V
Basic DC Accuracy
+/-0.5%
Max. DC Amps
10 A
Capacitance Range
1 pF to 40 mF
Auto Ranging
Yes
Peak Hold
No
Max. Ohms
60 megohm
Calibration Certificate Included
No Certification Included
Intrinsically Safe
No
Bar Graph Included
No
IP Rating
IP40
Fuse Access
Yes
Maximum DC Current Measurement
600 A
Bluetooth Compatible
No
Minimum Storage Temperature
-4 Degrees F
Maximum Resistance Measurement
60 megaohm
Basic DC Current Accuracy
+/-0.4%
Maximum AC Current Measurement
600 A
Maximum DC Voltage Measurement
600 V
Maximum AC Voltage Measurement
600 V
Maximum Capacitance Measurement
200 uF
Maximum Frequency Measurement
50 kHz
Resistance Measurement Accuracy
+/-0.90%
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Minimum Operating Temperature
122 Degrees F
Battery Access
Yes
Maximum Storage Temperature
140 Degrees F
Maximum Temperature Measurement
752 Degrees F
Basic AC Voltage Accuracy
+/-1%
AC Response Calculation
TRMS
Frequency Measurement Accuracy
+/-0.1%
Weight
11.8 oz
Capacitance Measurement Accuracy
+/-1.5% (200 nF); +/-4.5% (10.00 mF)
Temperature Measurement Accuracy
+/-1% + 2 Degrees F; +/-1% + 1 Degrees C
Battery Voltage
1.5 V
Basic DC Voltage Accuracy
+/-0.4% (AC/DC mVolt Range); +/-0.4% (AC/DC Voltage Range); +/-2.0% (AC/DC LoZ V Range)
Batteries Included
Yes
Minimum Temperature Measurement
-40 Degrees F
Basic AC Current Accuracy
+/-1%
Thermal Imaging
No
Current Leakage Testing
No
Waterproof
No
Removable Screen
No
Dustproof
No
Minimum/Maximum Memory
yes
Minimum AC Voltage Measurement
0 mV
Special Features
True RMS, Low impedance (LoZ) mode, frequency, diode, capacitance, and a Type K thermocouple input for temperature measurement, drop-tested, IP40 rated, and has a CAT IV-300V, CAT III-600V safety category rating
Minimum Resistance Measurement
0 ohm
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
CAT Safety Rating
CAT III 600V, CAT IV 300V
Minimum AC Current Measurement
0 uA
Minimum DC Current Measurement
0 uA
Current Units
A
Minimum DC Voltage Measurement
0 mV
Includes Auto Sensing
No Auto Sensing Included
Voltage Units
mV, V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1 Percent, Basic DC Voltage Accuracy +/-0.4 Percent (AC/DC mVolt Range); +/-0.4 Percent (AC/DC Voltage Range); +/-2.0 Percent (AC/DC LoZ V Range), Data Hold Yes, Basic DC Current Accuracy +/-0.4 Percent, Instrument Safety Rating CAT III 600V, CAT IV 300V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000
