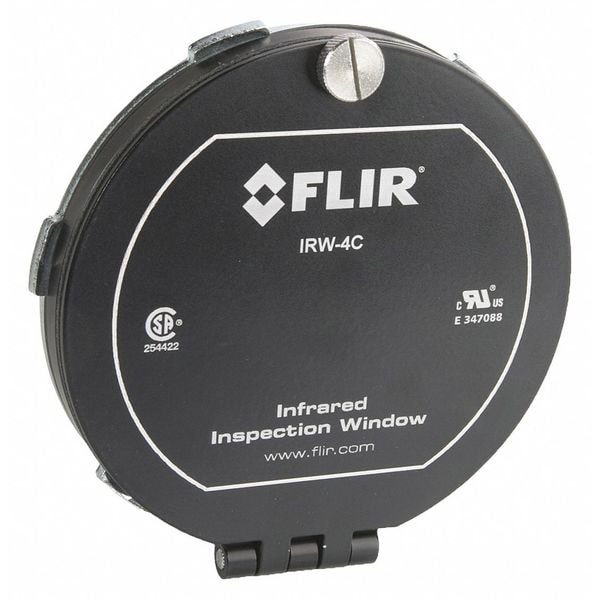

Round Infrared Window, 95mm dia, Type 3/12
- Mfr # IRW-4C
- Zoro # G4264793
product price:Â
$
569.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Includes
Installation Instructions
Window Thickness
0.07 in
Crystal Insert Size
95mm dia
Optic Maximum Temperature
2,474 Degrees F
Manufacturers Warranty Length
Limited Lifetime
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- IRW-4C
- Zoro #
- G4264793
- UPC #
- 845188002831
- Country of Origin
- Estonia
- Item
- 4-1/2 in Round Infrared Window
- Includes
- Installation Instructions
- Optic Maximum Temperature
- 2,474 Degrees F
- Viewing Aperture Area
- 9.64 sq in
- Use
- Indoor, Outdoor
- IP Rating
- IP69
- Voltage Range
- Any
- Components
- Anodized Aluminum Frame and Cover
- Body Maximum Temperature
- 500 Degrees F
- Gasket Maximum Temperature
- 170 Degrees F
- NEMA Rating
- 12, 4
- Body Material
- Aluminum
- Special Features
- Hinged Cover Stays Attached, No Special Tool to Secure Cover, Window Labeling/ID Inside the Cover, (3) Step Installation, No Screw Holes to Drill
- Frame Material
- Aluminum
- Maximum Operating Temperature Degrees F
- 500 Degrees F
- Minimum Operating Temperature Degrees F
- -40 Degrees F
- Cover Material
- Aluminum
- For Outdoor Use
- Yes
- Lens Material
- Crystal
Dimensions
- Window Thickness
- 0.07 in
- Crystal Insert Size
- 95mm dia
- Manufacturers Warranty Length
- Limited Lifetime
- Viewing Aperture Size
- 89mm dia
- Manufacturer Warranty Length
- Limited Lifetime Manufacturers Warranty
- Crystal Insert Diameter
- 3.74 in
- Viewing Aperture Diameter
- 3.5 in
Description
4-1/2 in Round Infrared Window, Maximum Operating Temperature Degrees F 500 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Optic Maximum Temperature 2,474 Degrees F, Viewing Aperture Area 9.64 sq in, Viewing Aperture Diameter 3.5 in, Viewing Aperture Height Not Applicable, Viewing Aperture Width Not Applicable, Window Thickness 0.07 in, Body Maximum Temperature 500 Degrees F, Includes Installation Instructions, IP Rating IP69, Gasket Maximum Temperature 170 Degrees F
