  5. Thermal Camera, -4 Degrees to 752 Degrees F, 70 mK, 640 x 480 Display, 54 Degrees x 42 Degrees

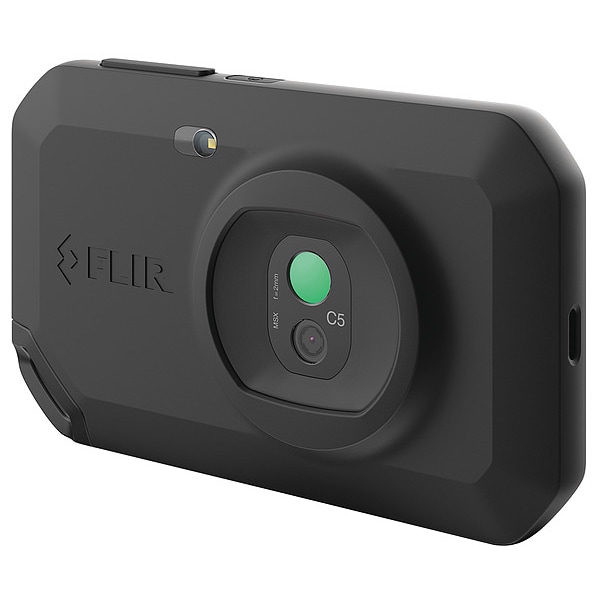

Flir Thermal Camera, -4 Degrees to 752 Degrees F, 70 mK, 640 x 480 Display, 54 Degrees x 42 Degrees FLIR C5 - main

Thermal Camera, -4 Degrees to 752 Degrees F, 70 mK, 640 x 480 Display, 54 Degrees x 42 Degrees

  • Mfr # FLIR C5

  • Zoro # G9264494

product price:  $799.00
/ea
Free Shipping & Returns

Key Features

Field of View
54 Degrees x 42 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 752 Degrees
Features
Data Logging, Image Notation, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
70 mK
Focus Method
Fixed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR C5
Zoro #
G9264494
UPC #
845188021832
Country of Origin
Estonia

Dimensions

Display Size
3.5 in
Manufacturers Warranty Length
10 yr Detector, 2 yr Parts and Labor
Manufacturer Warranty Length
1 yr

Details

Item
Thermal Camera
Field of View
54 Degrees x 42 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 752 Degrees
Features
Data Logging, Image Notation, Multi Spectral Dynamic Imaging (MSX(R))
Thermal Sensitivity
70 mK
Focus Method
Fixed
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
JPEG
Removable Memory Card
Not Included
Includes
Carrying Pouch, USB Cable, Wrist Strap Lanyard
Emissivity
(4) Presets and Adjustable
Wireless
Yes
Alarm
No
Data Logging - Instrument
No
Charger Replacement
423N33
Articulating Lens
No
Safety Rating
EN 62368-1
Multiple Lens Option
No
Picture In Picture
Yes
Item - Infrared Camera
Infrared Camera
Frame Rate - IR Camera
9 Hz
Temp. Range (C) - Infrared
-20 Degrees to 400 Degrees
Included Charger
423N33
Thermal Sensitivity - IR Camera
70 mK
Temp. Accuracy (C) - Infrared
+/-3.0% of Reading or +/-3.0 Degrees Whichever is Greater
Display Resolution - IR Camera
160 x 120 Pixels
Special Features
MSX Enhancement
Display - IR Camera
3.5 in Touch Screen Color LCD
NIST Certified
No
Focus Distance - Infrared
Minimum of 0.10 m
Drop Tested
2 m
Laser Sighting
No
Field of View - IR Camera
57.0 Degrees Horizontal x 41.0 Degrees Vertical
Thermal and Visible Light Blending
Yes
Ambient Temp. Range
-15 Degrees to 50 Degrees C
Spectral Response - Infrared
7.5 to 14.0um
Detector Resolution - Infrared
120 x 160 Pixels
Temp. Accuracy (F) - Infrared
+/-3.0% of Reading or +/-5.4 Degrees Whichever is Greater
Emissivity Adjustability
Adjustable
Alert Type
Digital Display
Minimum Temperature Measured Degrees C
-20 Degrees C
Minimum Operating Temperature Degrees F
14 Degrees F
Temperature Alerts
High Temperature, Low Temperature
Minimum Emissivity Setting
0.01
Minimum Focus Distance
0.1 in
Maximum Operating Temperature Degrees F
122 Degrees F
Maximum Emissivity Setting
1.00
Accuracy Degrees C
+/-3.0% of Reading or +/-3.0 Degrees Whichever is Greater
Digital Display Screen Type
LCD Touchscreen
Interface
USB, Wireless
Maximum Temperature Measured Degrees F
752 Degrees F
Minimum Temperature Measured Degrees F
-4 Degrees F
Accuracy Degrees F
15 to 35 Degrees C (59 to 95 Degrees F) and object temp. above 0 Degrees C (32 Degrees F), 0 to 100 Degrees C (32 to 212 Degrees F): +/-3 Degrees C ( +/-5.5 Degrees F), 100 to 400 Degrees C (212 to 752 Degrees F): +/-3%
Lens Angles Included
54 Degrees
Calibration Certificate Type
Not Certified
Data Transfer Type
Wired, Wireless
Series
FLIR C Series
Battery Run Time
4 hr
Intrinsic Safety
Not Specified Intrinsically Safe
Infrared Resolution
160 x 120
Maximum Temperature Measured Degrees C
400 Degrees C
Frame Rate
8.7 Hz
Battery Chemistry
Lithium Ion

Description

Thermal Camera, Temperature Alerts High Temperature, Low Temperature, Frame Rate 8.7 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Not Certified, Alert Type Digital Display, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 70 mK, Minimum Focus Distance 0.1 in, Minimum Operating Temperature Degrees F 14 Degrees F
