  9. Electronic Flowmeter, 1", FNPT, 7.3" L
Shop All Flowmeters
Flomec

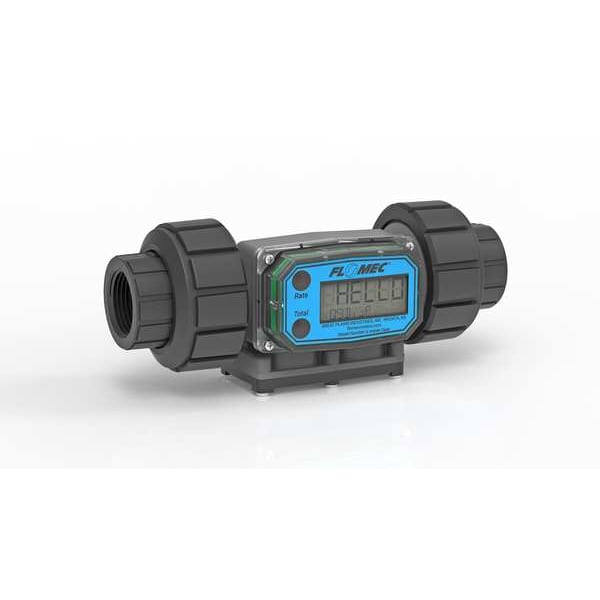

Electronic Flowmeter, 1", FNPT, 7.3" L

product price: $1,049.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material PVDF
  • Type Turbine
  • For Pipe Size 1 in
  • Connection Size 1 in
  • Flow Material Chemicals, Corrosive Fluids, Water, Water-Like Liquids
See all product information

Product Information

  • Brand Flomec
  • MFR # G2P10NQ9GMA
  • Zoro # G100690054
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Width (In.) 2 4/5 in
Height (In.) 4 1/50 in
Length (In.) 8 1/10 in
Overall Width 2.1 in
Overall Length 8.1 in
Overall Height 0.9 in

Details

Item Electronic Flowmeter
Housing Material PVDF
Type Turbine
Flow Material Chemicals, Corrosive Fluids, Water, Water-Like Liquids
Connection Type FNPT
Max. Pressure 100 psi
Frequency Range (Hz) 45 to 450
Wetted Materials Alumina Ceramic, Fluorocarbon, PVDF (15% Carbon Filled), PVDF
Max. Viscosity 20 cps
Flow Range 5 to 50 gpm
Fluid Temp. Range 14 Degrees to 140 Degrees F
Sensor Type Turbine
Output Type 4-20 mA
Flow Range (GPM) 5 to 50
Standards CE Certified
Display Type Digital
Flow Range (LPM) 19 to 190
Seal Material Viton
Display Units gal
Rotor Type PVDF Turbine
Power Requirement 2-AAA Alkaline Batteries
Shaft Material Ceramic
Accuracy (%) +/- 1.0
Flow Range @ GPH 300 to 3000
Product Type Electronic Flowmeter
Media Temperature - Maximum 150 Degrees F
Compatible Flow Material Chemicals, Corrosive Fluids, Water
Flow Rate - Maximum 50 gpm
Frequency - Minimum 45 Hz
Mounting Orientation Universal
Viscosity - Maximum 20 cps
Accuracy +/-1.5% (Body Only), +/-1% (With Computer)
Flow Rate - Minimum 5 gpm
Flowmeter Type Turbine
Operating Pressure - Maximum 6.5 psi
Frequency - Maximum 450 Hz
Wetted Material Alumina Ceramic, Viton, PVDF
Includes Totalizer Yes
Rotor Material PVDF
Media Temperature - Minimum -20 Degrees F
Unit Of Measure Gallons, Liters

Description

Electronic Flowmeter, Product Type Electronic Flowmeter, Flowmeter Type Turbine, Accuracy +/-1.5 Percent (Body Only), +/-1 Percent (With Computer), Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Chemicals, Corrosive Fluids, Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum -20 Degrees F, Viscosity - Maximum 20 cps, Housing Material PVDF, Rotor Material PVDF, Seal Material Viton, Shaft Material Ceramic, Wetted Material Alumina Ceramic, Viton, PVDF
